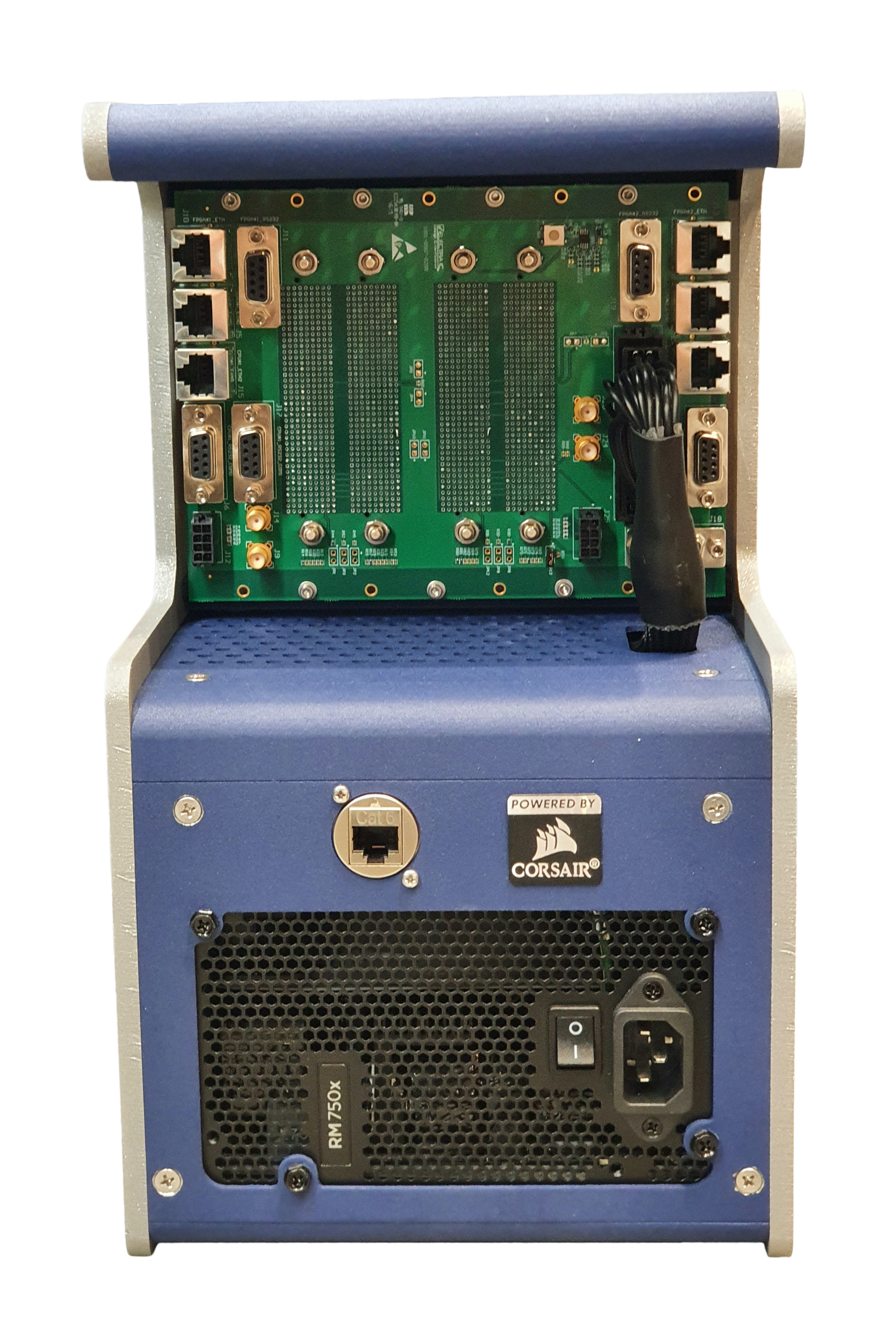

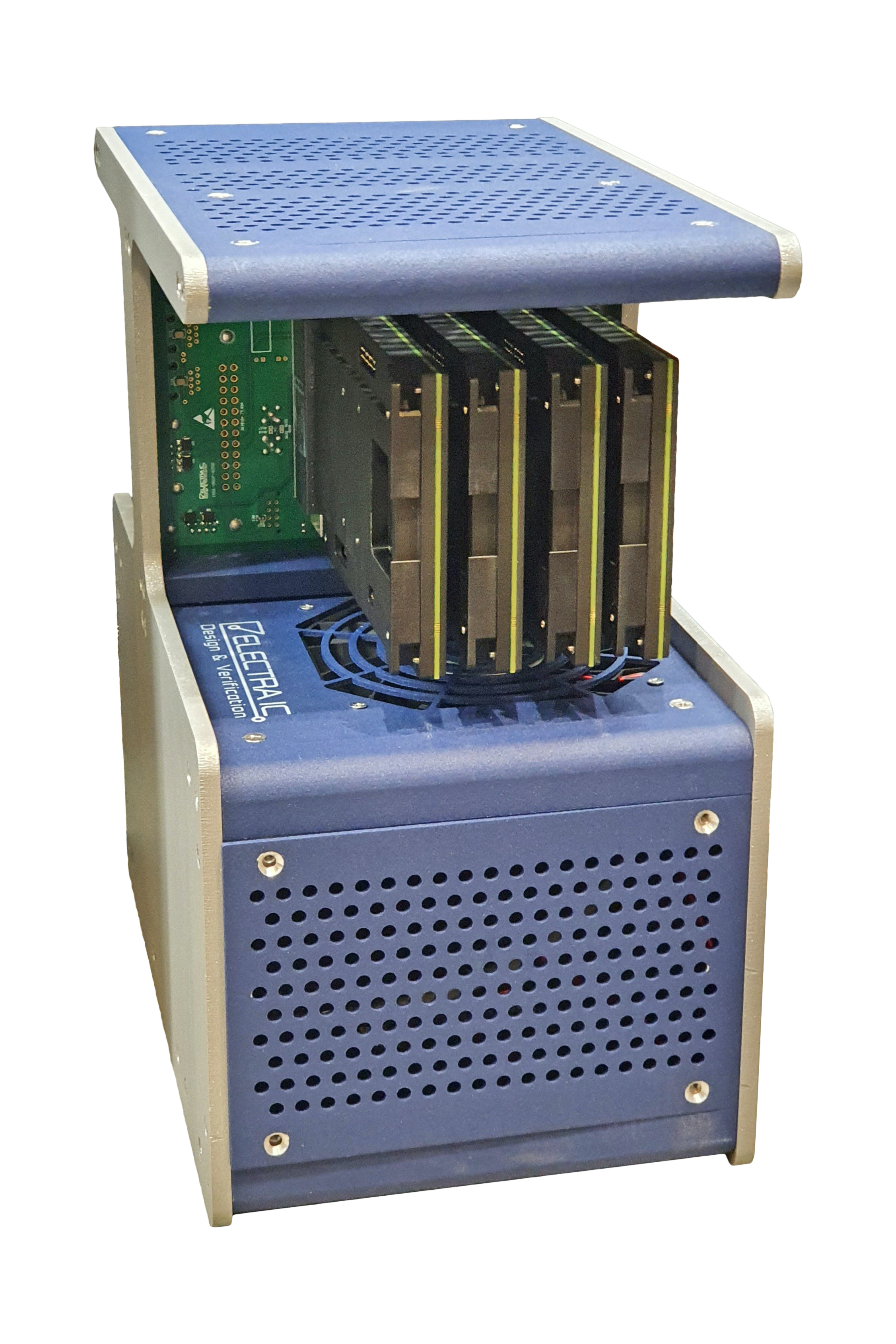

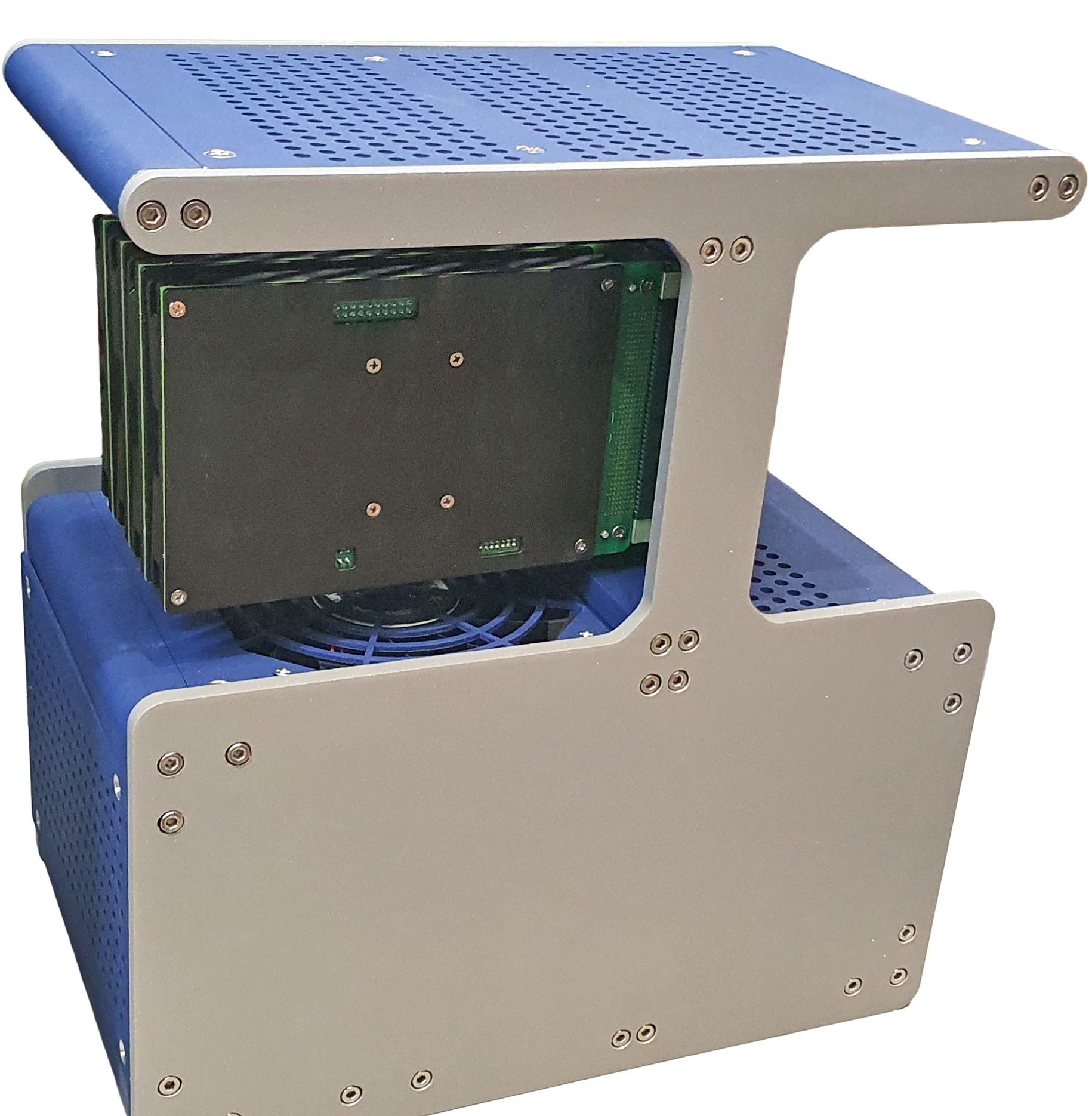

3U VPX Open Frame Development Chassis

EIC Product Code:

The VPX3-CH101 is a VPX open frame chassis designed for development and test.
The VPX3-CH101 supports custom or COTS backplanes up to 10 slots.

APPLICATIONS
•    3U VPX system development

FEATURES
•    Custom or COTS 3U VPX backplane support up to 10 slots
•    ATX power connector
•    Remote power On / Off feature via Ethernet Interface

COOLING
•    A 300 CFM Fan with speed control, on the front.
•    Two 60 CFM fans with speed control, on the rear.

WEIGHT
•    5,3 kg

POWER SUPPLY
•     750 W total power supply delivering:
o    +12V up to 62,5 Amps
o    +5V up to 20 Amps
o    +3.3V up to 20 Amps
o    -12V up to 0.3 Amps
o    +5Vsb up to 3 Amps
•    ATX Connector
