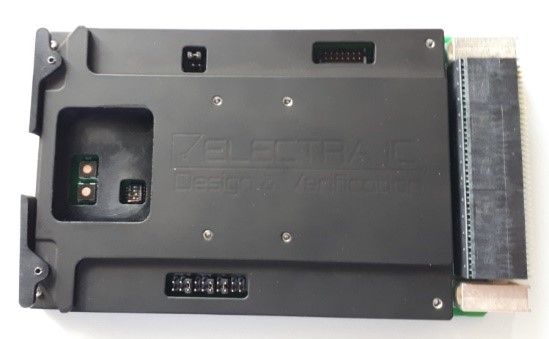

3U VPX FPGA Module: BitFlex-VPX3-MZQ1
EIC Product Code: EIB-303U-MXZQ1
The BitFlex-VPX3-MZQ1 is a high-performance FPGA processing module based on the Xilinx Zynq family of FPGAs.
It provides multiple high-speed fabric interfaces, external memory, an FMC site, and high-density I/O.
It is ideal for customizable, high-bandwidth, signal-processing and image-processing applications.
DEVELOPMENT SUPPORT
• Linux drivers
• Vxworks drivers
FIRMWARE SUPPORT
• VHDL cores for all hardware resources
• Base design
PHYSICAL CHARACTERISTICS
• 3U VPX-REDI air-cooled form factor
• Dimensions: 100 mm x 160 mm
• 0.85 in. and 1.0 in. pitch with solder-side cover
FPGA
• Xilinx UltraScale SoC FPGA ARM® dual-core Cortex™-A9
(32 bit, up to 1000 MHz)
• 1 GB of DDR3 SDRAM
• 512 MB NAND flash
• 64 MB quad SPI flash
VPX (VITA 46) P1 I/O
• PCI Express Gen3 4x Lanes
• 8x RX/TX GTH-capable High-Speed Serial (HSS) lanes
VPX (VITA 46) P2 I/O
• 1G Ethernet Interface
• RS232
• Twelve LVD
