AXVU13F FPGA Dev Board & Kit with AMD Virtex US+ XCVU13P
EIC Product Code: AXVU13F V1.0

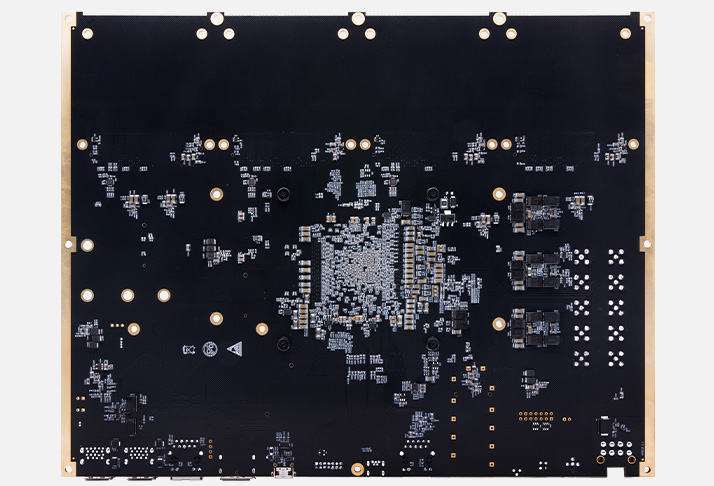

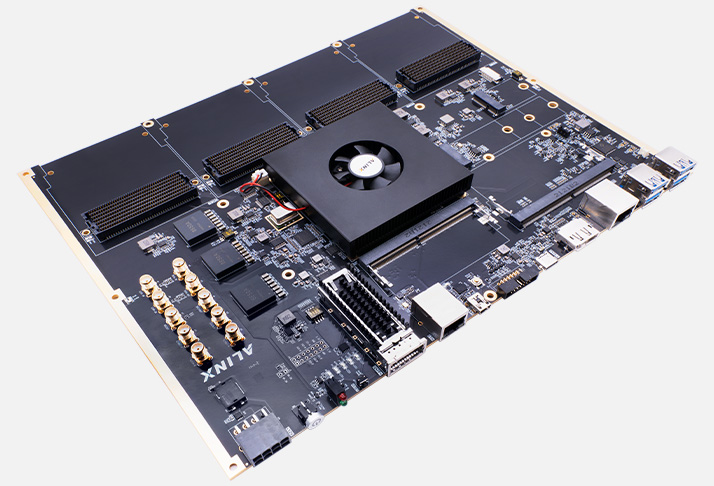

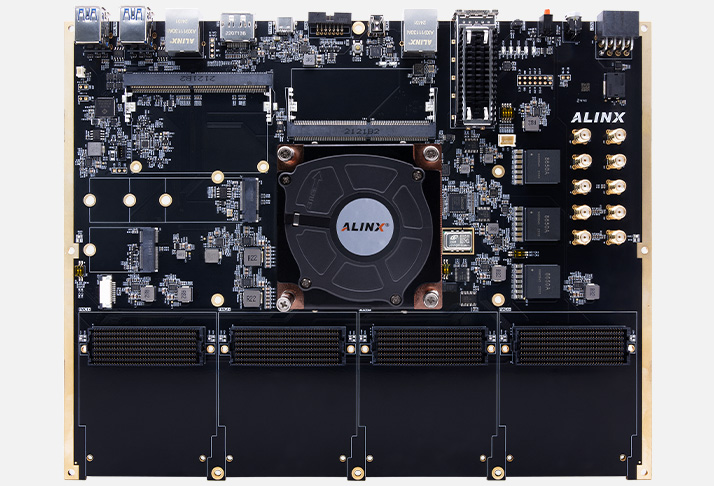

The AXVU13F FPGA development board equipped with the AMD/Xilinx Virtex Ultrascale+ series device, This board integrates four FMC+ connectors,Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio) Provided users with a fully functional testing and verification platform
Product Description
The AXVU13F FPGA development board equipped with the AMD/Xilinx Virtex Ultrascale+ series device, This board integrates 4 x FMC+ connectors, Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provided users with a fully functional testing and verification platform
Provide high-speed communication (100G QSFP28+, FMC+) and high-speed storage (SODIMM，M.2) video applications (DP)..
Applications
● Compute Acceleration
● Machine Learning and AI
● Network Acceleration
● Wired Communications
● 5G Baseband
● Radar
● Test and Measurement
● Emulation and Prototyping
Key Features

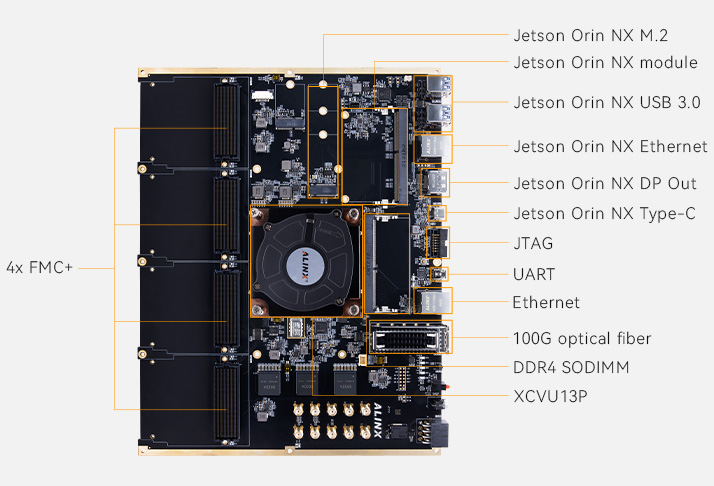

- AMD Virtex Ultrascale+™ VU13P System● AMD Virtex Ultrascale+™ XCVU13P:
◆ 16nm FinFET FPGA fabric
◆ Integrated 100G Ethernet MAC and 150G Interlaken cores
● 1 x DDR4 SODIMM Card slot ( Supports up to 32GB DDR4 )
● 2 x 128 MB QSPI Flash
● 4 x FMC+◆ FMC+1 has 120 IOs and 20 GTY
◆ FMC+2 has 120 IOs and 16 GTY
◆ FMC+3 has 72 IOs and 16 GTY
◆ FMC+4 has 72 IOs and 16 GTY● 1 x 100G QSFP28 (up to 100 Gbps)
● 1 x Gigabit Ethernet
● 1 x UART (USB to UART)
● 8 x 1 x JTAG
● 2 x SMA (1 x in + 1 x out)
● 12V single supply
● Dimensions: 295 x 230 mm form factor - NVIDIA JETSON ORIN NX System● NVIDIA Jetson Orin NX Module:
◆Jetson Orin NX 16 GB: Up to 100 TOPs (Need to purchase separately)
◆ Jetson Orin NX 8 GB: Up to 70 TOPs (Need to purchase separately)
(*Jetson Orin NX 16 GB package and Jetson Orin NX 8 GB package are offered separately. If you want to purchase them, please contact sales@alinx.com or sales.online@alinx.com to know more details)● Video encoding supports 1 x 4K60 (H.265); 3x 4K30 (H.265); 6x 1080p60 (H.265); 12 x 1080p30 (H.265)
● Video decoding supports 1 x 8K30 (H.265); 2 x 4K60 (H.265); 4 x 4K30 (H.265); 9x 1080p60 (H.265); 18 x 1080p30 (H.265)
● 1 x DisplayPort (4K 30Hz/1080P 60Hz video)
● 1 x NVME M.2 Interface (PCIe Gen 4 x2)
● 1 x Gigabit Ethernet
● 1 x M.2 WIFI/BT
● 1 x Gigabit Ethernet
● 4 x USB 3.0 Type-A + 1 x USB 3.0 Type-C
Board Features

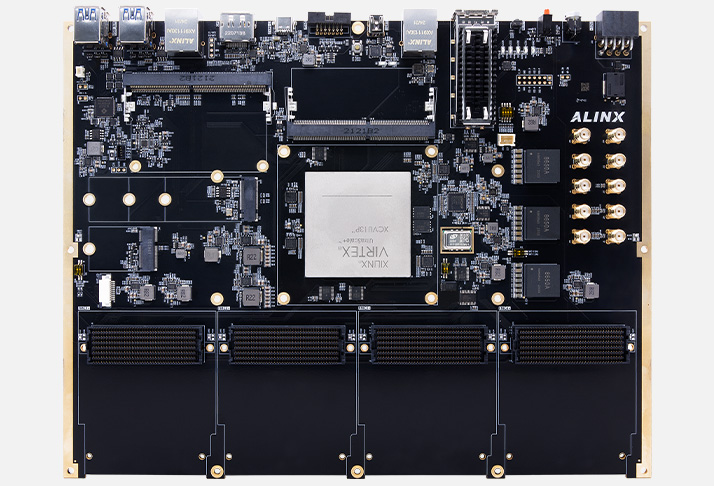

Featuring the AMD/Xilinx Virtex Ultrascale+™ XCVU13P-2FHGB2104I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.
What's Inside the Box
ALINX AMD Xilinx Virtex Ultrascale+™ XCVU13P FPGA development board and Some accessories
The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCVU13P device surface.
| Development Board | 1 | Heatsink Kit (preinstalled) | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | PCle Fence | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | QSPI Flash | GTY | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXVU13F | √ | XCVU13P-2FHGB2104I | 2 x 128 MB | 76 | 13906 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
