Product Description

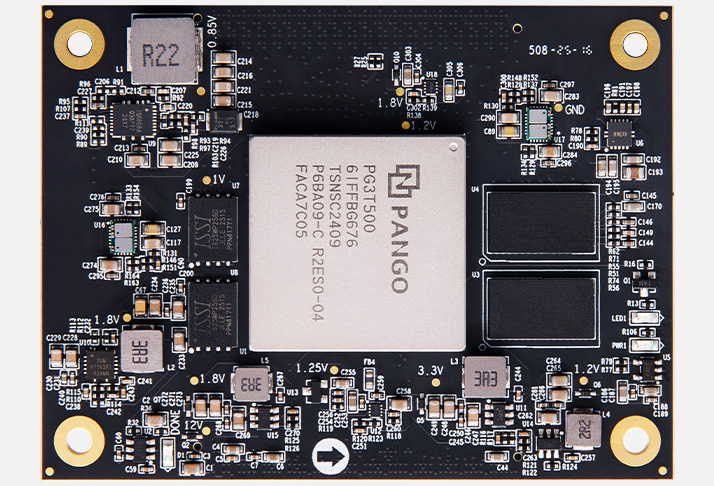

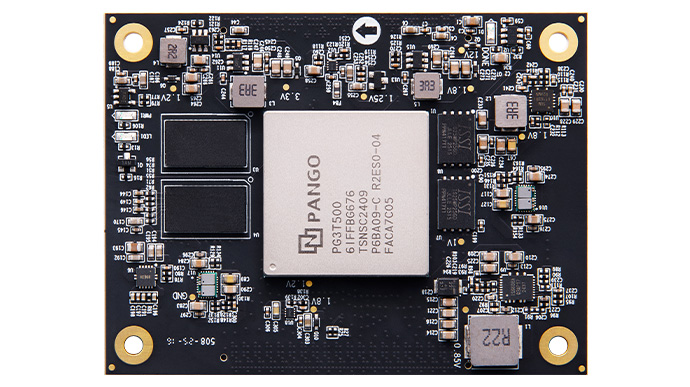

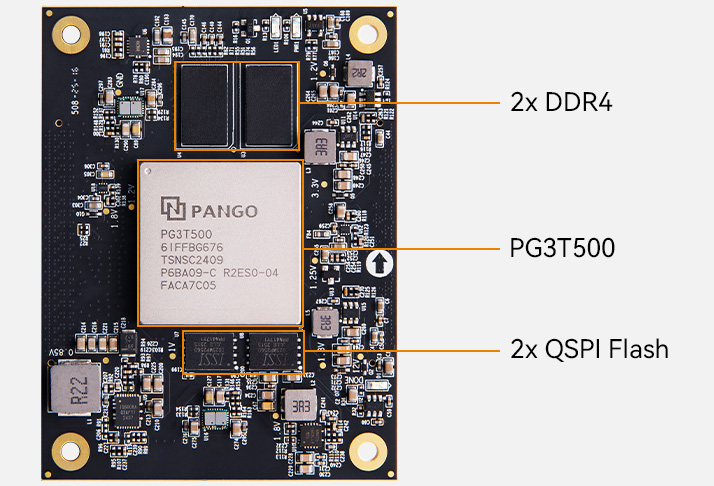

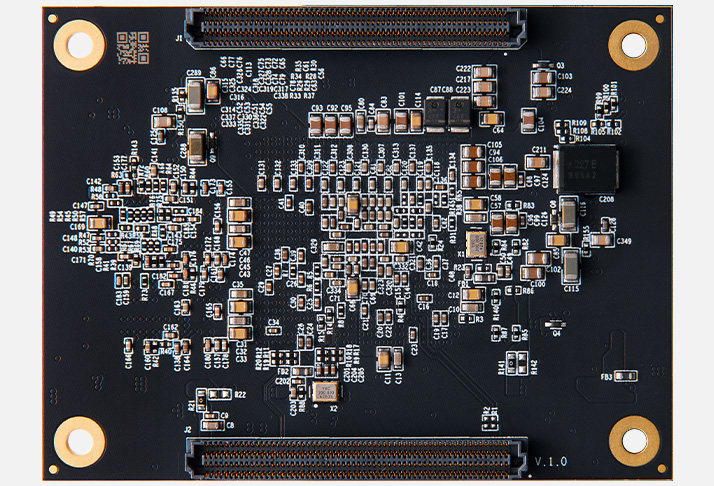

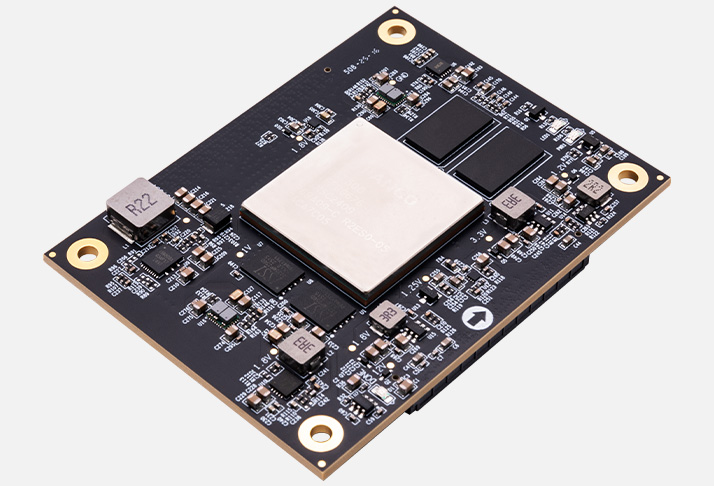

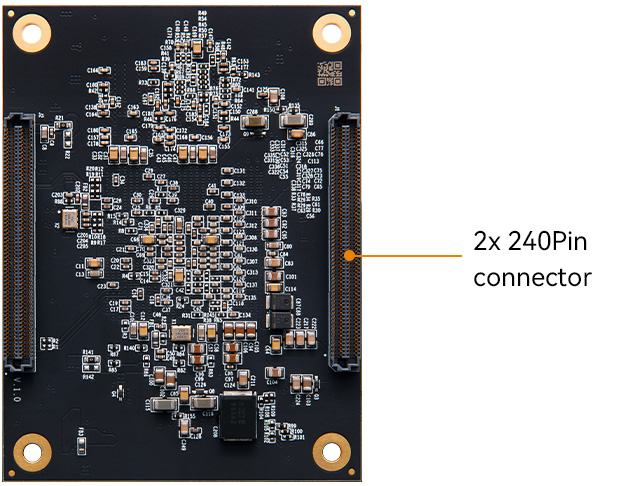

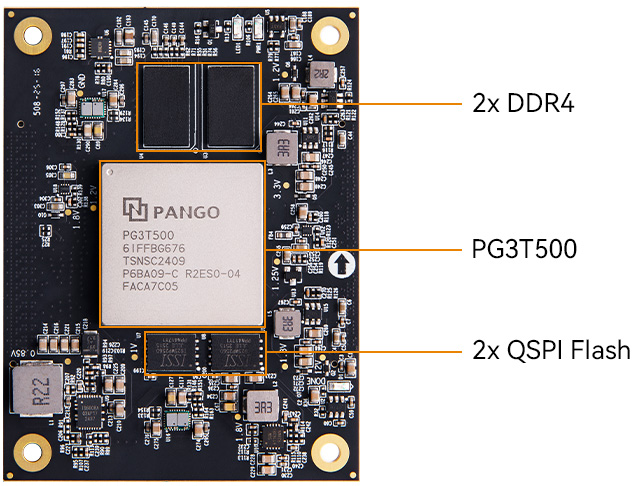

P500 SOM is based on the PANGO Titan3 PG3T500 FPGA (242,176 LUT6 + 484,352 registers), features 2GB DDR4 (32-bit, 2666Mbps) and two 256Mb QSPI Flash chips. It provides 98 HPIO, 54 HDIO, and 16 high-speed transceiver pairs via two 240-pin high-speed board-to-board connectors. Two 200MHz differential clocks are onboard. Ideal for secondary development in high-speed data acquisition, image processing, industrial control, and more.
Applications
● Communication
● Image and video processing
● High-speed Data Acquisition & Analysis
● Network information security
● Industrial Control
Key Features
- ● PANGO Titan-2 PG2T390H
● Pluggable module with 2 x board-to-board connectors
● 2 x 1GB GByte (32-bit) DDR4 SDRAM
● 2 x 256Mb QSPI Flash
● 16 pairs High-speed Transceivers
● 2 x 200MHz Differential Clocks - ● I/Os◆ 98 HPIO
◆ 54 HDIO ● Work temperature range of -40°C to 85°C
● 12V single supply
● Dimensions: 80 x 60mm form factor
Module Features
Featuring the Pango Titan3 PG3T500-6IFFBG676
If you want to design a base board based on this Logos System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Cooling FAN is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
* We have Titan2 development boards AXP500F that uses this Titan3 module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX Pango Titan3 PG3T500 System-on-Module/SoM
| SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 | QSPI Flash | Temp. Range | USD Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P500 | √ | PG3T500-6IFFBG676 | 2GB | 512Mb | -40°C~ 85°C | 644 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
