ACSU35 FPGA SoM with AMD Spartan™ US+ XCSU35P
EIC Product Code: ACSU35 V1.0

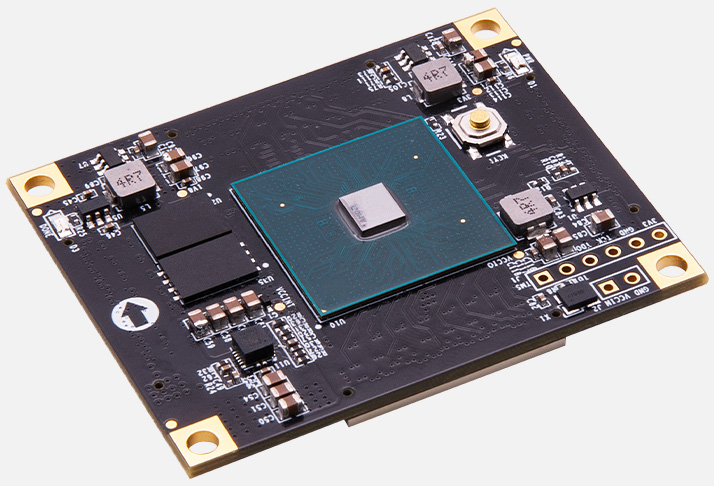

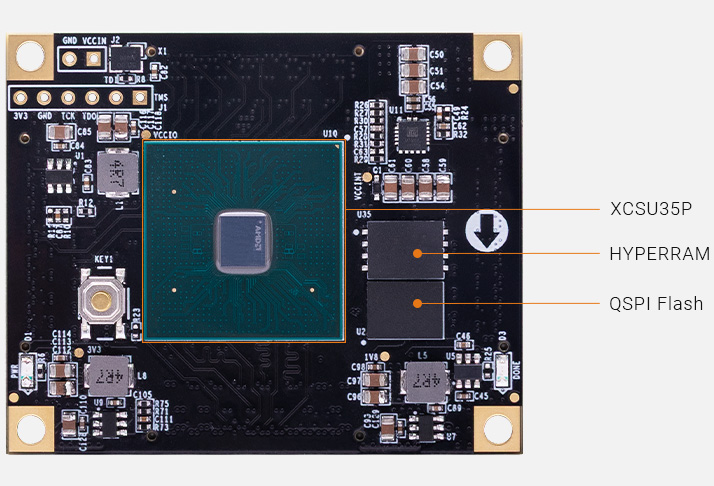

The ACSU35 FPGA System-on-Module(SoM) is based on the AMD Spartan UltraScale+ XCSU35P FPGA. It features 64Mbit HYPERRAM and 128Mbit QSPI Flash, a 200MHz differential clock, and 246 user I/Os (including 12 LVDS pairs). It is ideal for high-speed data communication, video processing, and industrial control applications.
Product Description
The ACSU35 FPGA System-on-Module(SoM) is based on the AMD Spartan UltraScale+ XCSU35P FPGA. It features 64Mbit HYPERRAM and 128Mbit QSPI Flash, a 200MHz differential clock, and 246 user I/Os (including 12 LVDS pairs). It is ideal for high-speed data communication, video processing, and industrial control applications.
Applications
Industrial
● Factory Automation
● Robotics
● IIoT Gateways and Edge Applications
● Smart Cities and Smart Grids
Medical
● Intelligent Patient Monitors
● Robot-assisted Surgery
Wired/Wireless
● 4G and 5G Wireless Infrastructure
● Board Controllers
● Network Access and Connectivity
Data Center
● Board Management Controllers
● Hyperscale Storage
Key Features
System-on-Module
● AMD Spartan™ UltraScale+™ XCSU35P:
◆ 16nm FinFET FPGA fabric

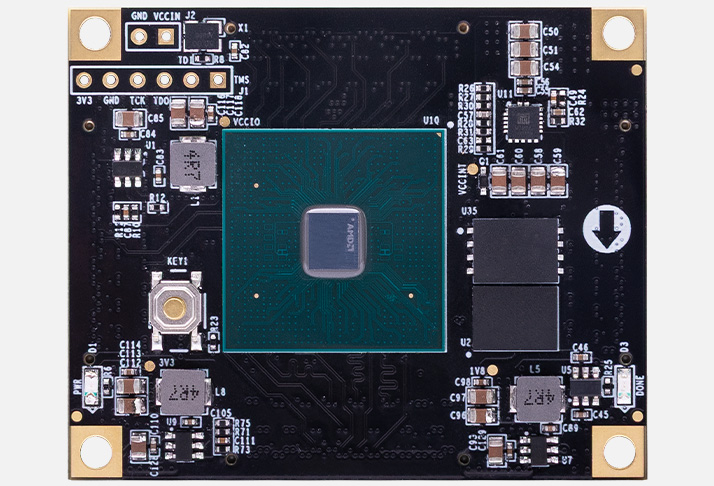

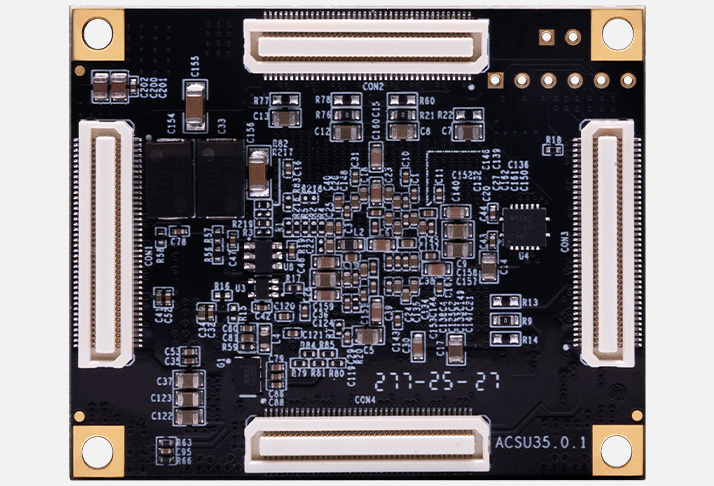

● Pluggable module with 4 x Samtec board-to-board connectors
● 64Mbit HYPERRAM
● 128Mbit QSPI Flash- ● Clock Sources
◆ 200MHz differential oscillator (system clock)
◆ 50MHz single-ended oscillator (reference clock)● User I/Os
◆ 246FPGA I/Os (20 HPIO 1.8V + 226 HDIO 3.3V, some adjustable) ● 2x Red LED Indicators
● Work temperature range of -40°C-85°C
● Reset Button
● Power Input DC 4.5V ~ 17V
● Dimensions: 45 x 55 mm form factor
Module Features
Featuring the AMD/Xilinx Spartan UltraScale+ XCSU35P-2SBVB625I
* If you want to design a base board based on this Spartan UltraScale+ FPGA System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.
* We have Spartan UltraScale+ development boards AXSU35 that uses this Spartan UltraScale+ module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Spartan UltraScale+XCSU35P FPGA System-on-Module/SoM
| ACSU35 SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | HYPERRAM | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACSU35 | √ | XCSU35P-2SBVB625I | 64Mbit | 128Mbit | 210 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
