YunSDR Y790s

EIC Product Code:

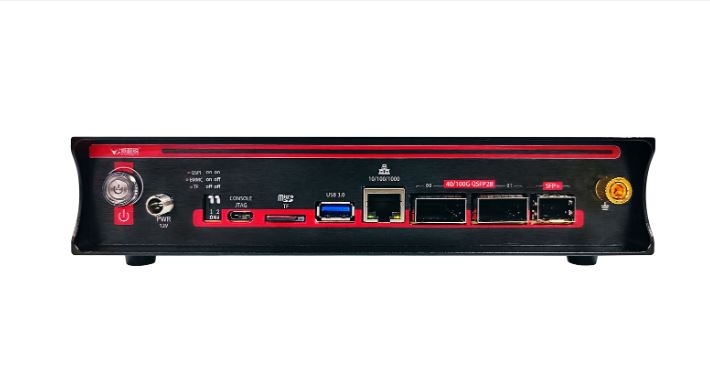

Data transmission interface uses two groups of 100G optical fibers, and realizes real-time interaction with the upper computer through the programmable FPGA pre-pass card of PCIe3.0x16. In addition, the device provides standard control and debug interfaces, including USB-JTAG,10/100/1000M Ethernet, TF card, USB3.0, etc. The start mode switch can be flexibly configured with various start modes, 12V DC power supply.

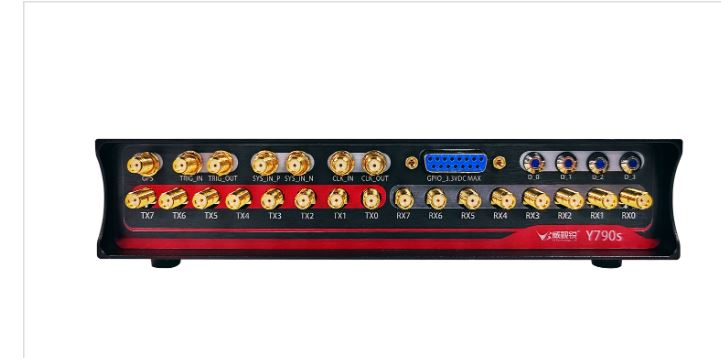

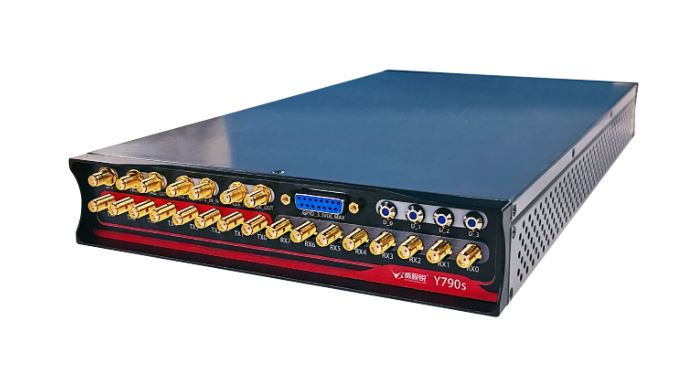

YunSDR Y790s integrates eight transmit channels and eight receive channels into a compact small chassis, making it easier to transport for field testing and operation. Each channel is independent, which means that each channel can be tuned to a different frequency for frequency division multiplexing (FDD) applications or to simulate multiple signals simultaneously. The channels can also be synchronized by an internal thermostatic crystal oscillator (OCXO), an internal GPS Tame Oscillator (GPSDO) for time stamping, which provides a 10 MHz reference and pulses per second (PPS).
