YunSDR Y780s
EIC Product Code:

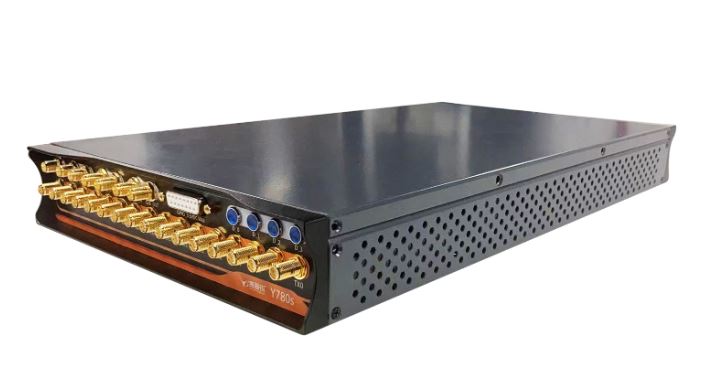

The YunSDR Y780s integrates eight transmit channels and eight receive channels into a compact small chassis, making it easier to transport for field testing and operation. The channel can also be synchronized through an internal constant temperature crystal oscillator (OCXO), and an internal GPS taming oscillator (GPSDO) is used for timestamps, providing a 10 MHz reference and pulses per second (PPS).
The out of the box software tool can achieve commonly used wireless signal processing functions such as device self-test, spectrum analysis, recording and playback, helping engineers quickly locate and solve wireless related problems. The device driver supports mainstream open source projects such as GNU Radio, as well as FPGA underlying development. Users can quickly verify prototypes and reliably deploy various SDR applications, such as 5G base stations, signal intelligence, and spectrum monitoring.
- l Covering the frequency range of 75MHz to 6GHz
- l Eight channel real-time transmission and reception bandwidth of 200MHz
- l 200G high-speed data transmission interface, standard PCIe 3.0 front card, additional massive capacity provided
- l FPGA logic resources
- l Ready to use software toolkit, supporting RF acquisition, recording, and
- playback
- l Rich secondary development API resources, cross platform support for MATLAB, Python, C #,C/C++, etc
- l Integrated open-source GNU Radio development environment, capable of
- directly running open-source 4G and 5G protocol stacks

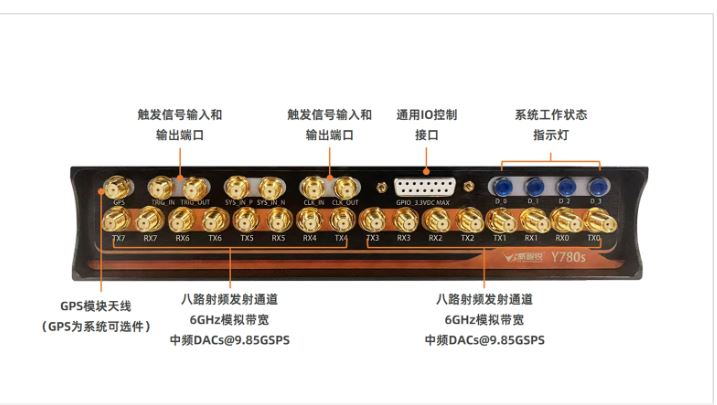

Main features and interfaces:
High channel density and high integration
Two development modes: standalone mode (embedded) or host mode (100G to PCIe streaming mode)
75 MHz to 6GHz frequency range
Instantaneous bandwidth 200MHz
8 channels for transmission and 8 channels for reception
Xilinx Zynq-Ultrascale+ ZU19EG Soc
IQ sampling clock 254.76MSPS
Four core ARM Cortex-A53 processor, with a maximum clock speed of 1.2 GHz
Dual core ARM Cortex-R5F processor, with a maximum clock speed of 500 MHz
2 QSFP28 optical ports (supporting 40G/100G Aurora and custom protocols)
QSFP+optical port (supporting 1G/10G Ethernet)
Provide PCIe fronthaul acceleration card, PCIe Gen3 x 16 interface, Xilinx Kintex Ultra Scale+KU15P FPGA, 2 QSFP28 optical ports
Gigabit Ethernet RJ45
Reference clock input/output
Trigger signal input/output
Built in GPSDO
FPGA GPIO interface
USB 3.0 Host/Device Interface
Type C USB serial console and JTAG
