YunSDR Y750s
EIC Product Code:
YunSDR Y750s is a high-performance multi-channel software defined radio platform built on the third- generation Xilinx Zynq UltraScale+RFSoC, with an instantaneous bandwidth of up to 2GHz and a frequency range of 1MHz to 6GHz. It supports four independent transmit and receive channels, with an instantaneous bandwidth of up to 400MHz, and also supports single channel 1GHz mode (IQ sampling mode). The sampling rate of high-speed ADC can reach up to 5GSPS with an accuracy of 14 bits, while the sampling rate of high-speed DAC can reach up to 9.85GSPS with an accuracy of 14 bits. The data transmission interface adopts 100G optical fiber, and real-time interaction with the upper computer is achieved through a PCIe3.0x16 programmable FPGA front-end card. In addition, the device provides standard control and debugging interfaces, including USB-JAG, 10/100/1000M Ethernet, TF card, USB3.0, etc. The start mode switch can flexibly configure various start modes, with 12V DC power supply.
- Covering the frequency range of 1 MHz to 6 GHz
- Four channel real-time transmission and reception bandwidth of 400MHz, up to
- GHz for a single channel
- 100G high-speed data transmission interface, standard PCIe 3.0 front card, dditional massive capacity provided
- FPGA logic resources
- Ready to use software toolkit, supporting RF acquisition, recording, and playback
- Rich secondary development API resources, cross platform support for MATLAB, Python, C #,C/C++, etc
- Integrated open-source GNU Radio development environment, capable of directly running open-source 4G and 5G protocol stacks

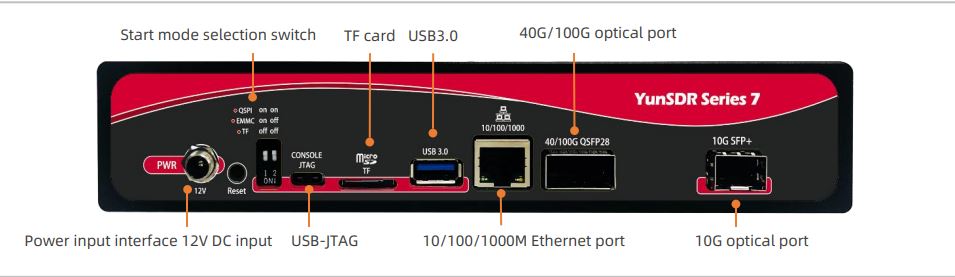

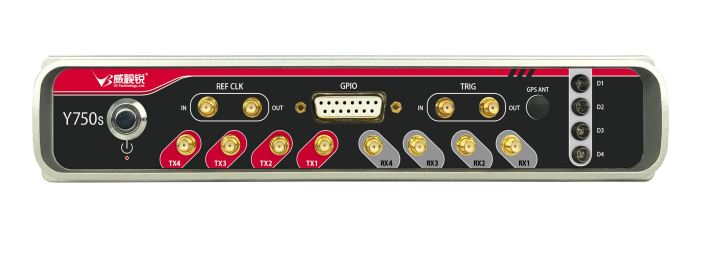

Main features and interfaces:
High performance, channel density, and high integration
Two development modes: standalone mode (embedded) or host mode (100G to PCIe streaming mode)
1 MHz to 6GHz frequency range (expandable to millimeter wave frequency band)
Maximum 1GHz instantaneous bandwidth or four channel 400MHz mode
4-channel transmission, 4-channel reception
Xilinx Zynq-Ultrascale+ ZU47DR RFSoC
14 bit ADC, 14 bit DAC
The IQ sampling clock can reach up to 1GSPS, while supporting 983.04MSPS and 960MSPS
Four core ARM Cortex-A53 processor, with a maximum clock speed of 1.2 GHz
Four core ARM Cortex-A5 MPCore processor, with a maximum clock speed of 500 MHz
QSFP28 optical port (supporting 40G/100G Aurora and custom protocols)
QSFP+optical port (supporting 1G/10G Ethernet)
Provide PCIe fronthaul acceleration card, PCIe Gen3 x 16 interface, Xilinx Kintex Ultra Scale+KU15P FPGA, 2 QSFP28 optical ports
Gigabit Ethernet RJ45
Reference clock input/output
Trigger signal input/output
Built in GPSDO
FPGA GPIO interface
USB 3.0 Host/Device Interface
Type C USB port serial console, JTAG)
