IW_ZU48DR_QSFPX4_8T8R — 8-Channel RFSoC Card with 4x QSFP, SYZYGY, PMOD & DisplayPort
Brand: Interwiser
EIC Product Code:
8-channel RFSoC platform (ZU48DR, 8x14-bit ADC/DAC) with four onboard QSFP optical ports, dual-side 64-bit DDR4, USB 3.0, DisplayPort/OLED and SYZYGY/PMOD expansion - a full-featured RFSoC evaluation board for 5G MIMO, radar and EW development.

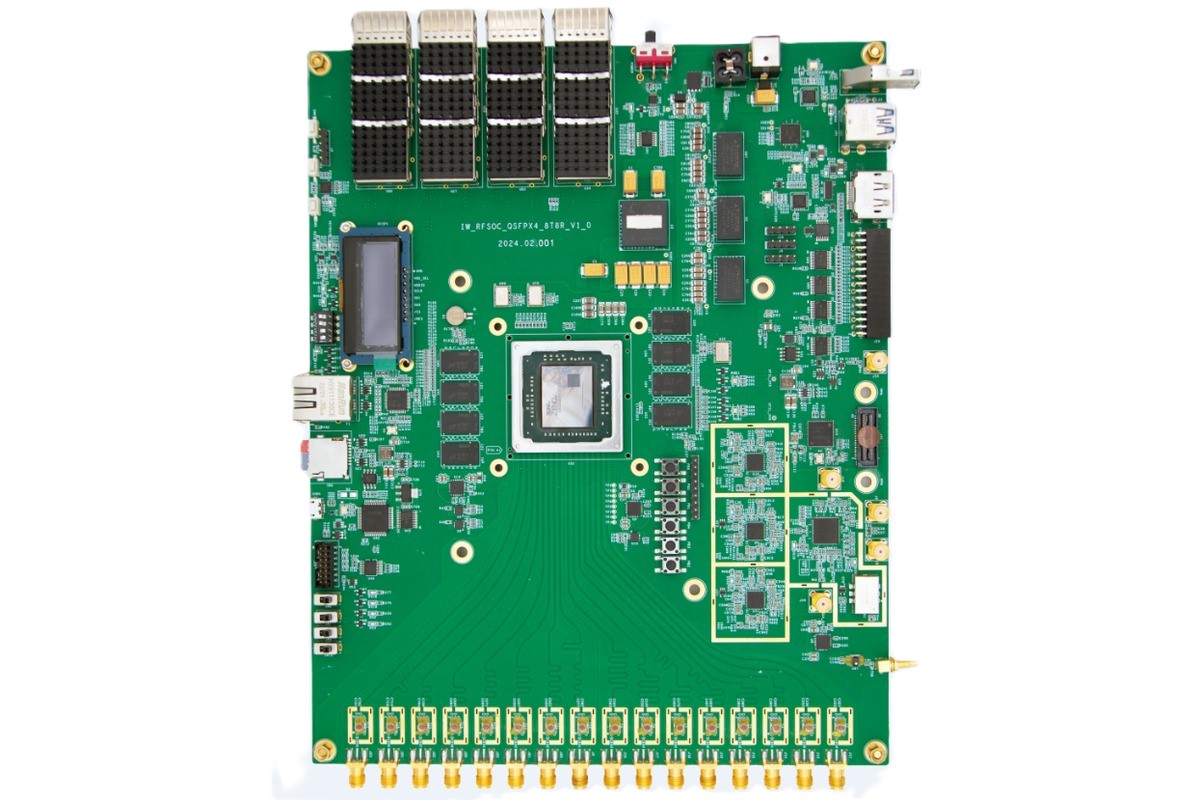

The IW_ZU48DR_QSFPX4_8T8R is based on AMD's Zynq UltraScale+ RFSoC Gen3 (XCZU48DR-L2FSVG1517I), providing 8 channels of 14-bit RF-ADC (5 GSPS) and 8 channels of 14-bit RF-DAC (9.85 GSPS) through high-performance SMA-KHDC16 RF connectors. Eight Micron DDR4 chips are split evenly into 64-bit PS-side and 64-bit PL-side buses (2400 Mb/s max) for high-performance data processing and storage, complemented by an SD card interface for file system storage. Four onboard QSFP connectors provide optical interfaces for high-speed data processing in parallel with the analog front end, and the PS side further extends two USB 3.0 ports, a Display Port output, an OLED display, a SYZYGY connector, a PMOD connector and a 10/100/1000 Ethernet port. This wide interface set - spanning high-speed optical I/O, local display and rapid-prototyping connectors (SYZYGY/PMOD) - makes the board a versatile RFSoC development platform for both algorithm bring-up and system integration work.
Features:
- Zynq UltraScale+ RFSoC XCZU48DR: 8x14-bit ADC (5GSPS) + 8x14-bit DAC (9.85GSPS)
- 4x onboard QSFP optical interfaces (100G-class ports on board)
- Dual-side DDR4 (PS 64-bit + PL 64-bit, up to 2400 Mb/s), SD card storage
- 2x USB 3.0, DisplayPort output, onboard OLED
- SYZYGY connector and PMOD connector for rapid prototyping/expansion
- All-channel and multi-board synchronization support
Applications:
- 5G/LTE MIMO wireless infrastructure
- Radar signal processing and early-warning data links
- Satellite communication signal generation/analysis
- High-speed multi-function test & measurement instruments
