IW-RFSOC-2T2R — 2-Channel RFSoC Mixed-Signal Processing Card
Brand: Interwiser
EIC Product Code:
Compact RFSoC mixed-signal card based on the Zynq UltraScale+ ZU47DR, offering 2 channels of 14-bit RF-ADC (5 GSPS) and 2 channels of 14-bit RF-DAC (9.85 GSPS) with QSFP+/SFP optical offload, DDR4 memory and GPIO expansion - a COTS RFSoC evaluation platform for radar/EW and communications design.

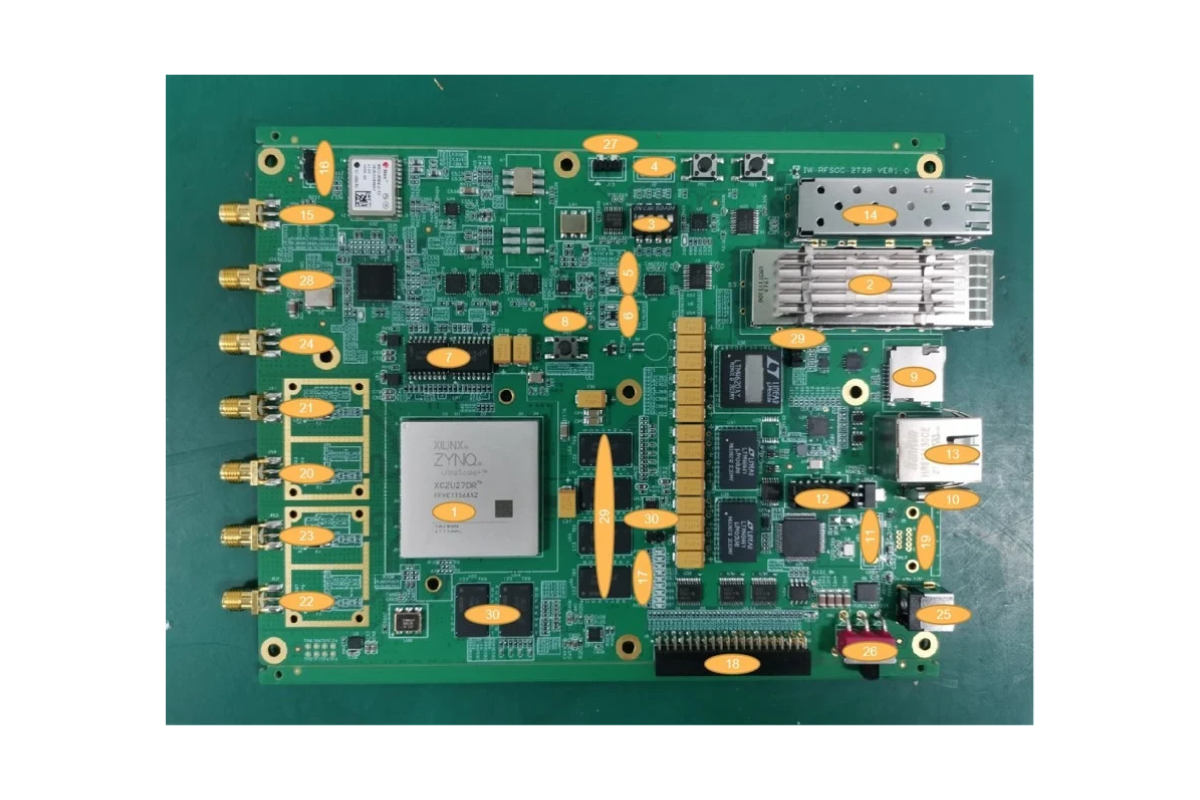

The IW-RFSOC-2T2R mixed-signal processing card is built around the Xilinx Zynq UltraScale+ RFSoC ZU47DR, providing 2 channels of 14-bit ADC at 5.0 GSPS and 2 channels of 14-bit DAC at 9.85 GSPS via side-mounted SMA RF connectors. As a commercial off-the-shelf (COTS) RFSoC evaluation board, it lets designers move directly from RF front-end sampling to digital-domain signal chains - eliminating the JESD204B interface, its added latency and design complexity - while maximizing I/O channel density and minimizing power. The board carries 4GB PS-side and 2GB PL-side DDR4, a Micro SD slot (UHS), 10/100/1000 Ethernet, USB-JTAG/UART, a 40Gbps QSFP+ optical interface and a 10Gbps SFP+ interface for high-speed data offload, alongside RS232, a GPS module input, SPI and 36x GPIO expansion. This makes the IW-RFSOC-2T2R suitable for both standalone algorithm development and multi-channel/multi-board synchronized RF systems.
Features:
- Zynq UltraScale+ RFSoC ZU47DR: 2x14-bit ADC (5GSPS) + 2x14-bit DAC (9.85GSPS)
- 1x QSFP+ (40G) and 1x SFP+ (10G) optical offload interfaces
- 4GB PS DDR4 + 2GB PL DDR4, Micro SD (UHS), Gigabit Ethernet
- RS232, GPS module interface, SPI, 36x GPIO expansion
- Multi-channel and multi-board synchronization support
- COTS platform - fast deployment, lower TCO, simplified upgrade path
Applications:
- Radar and electronic-warfare (EW) signal chains
- 5G/LTE wireless infrastructure (MIMO)
- Satellite communication instrumentation
- High-speed test & measurement instruments
