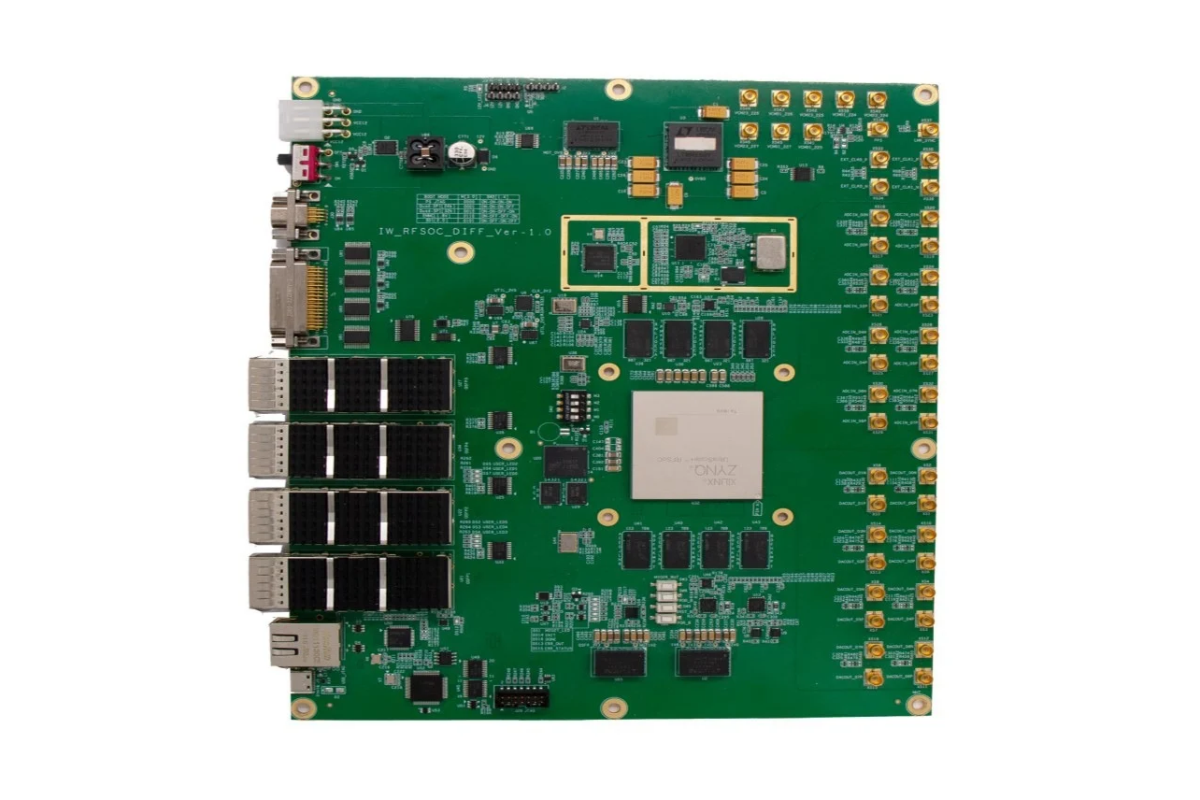

IW-RFDC-MuxPro-8TR — 8-Channel RFSoC Card with 4x QSFP, SYZYGY & DisplayPort
Brand: Interwiser
EIC Product Code:
8-channel RFSoC platform (ZU47DR) with 8x14-bit ADC (5 GSPS) and 8x14-bit DAC (9.85 GSPS), 4x QSFP optical interfaces, dual-side DDR4, plus SYZYGY, DisplayPort and OLED expansion for advanced multi-channel radar, EW and communications development.
The IW-RFDC-MuxPro-8TR is built on AMD's Zynq UltraScale+ RFSoC Gen3 (XCZU47DR), integrating eight Micron DDR4 chips split evenly between PS-side (64-bit) and PL-side (64-bit) buses for high-throughput data processing and storage, alongside two 1Gbit QSPI NOR Flash devices and a Micro SD slot. Four QSFP optical connectors provide high-speed data offload in parallel with its 8-channel 14-bit RF-ADC (5 GSPS) and 8-channel 14-bit RF-DAC (9.85 GSPS) front end, connected via high-performance SMA-KHDC16 RF connectors. The PS side adds an eMMC interface, dual QSPI and a 10/100/1000 Ethernet port. Beyond the core RF/data path, the board exposes an extensive expansion set - a J30J 37-pin connector (FMC+PMOD), SYZYGY connector, DisplayPort output and an onboard OLED - making it well suited to multi-channel radar/EW, MIMO 5G infrastructure, and satellite-communication signal chains that need both high-speed optical offload and flexible local display/expansion.
Features:
- Zynq UltraScale+ RFSoC XCZU47DR: 8x14-bit ADC (5GSPS) + 8x14-bit DAC (9.85GSPS), all-channel and multi-board synchronization
- 4x QSFP optical interfaces for high-speed offload
- Dual-side DDR4 (PS 64-bit + PL 64-bit), eMMC, dual QSPI Flash, Micro SD
- SYZYGY connector, DisplayPort output, onboard OLED, J30J 37-pin (FMC+PMOD)
- Complete reference designs: ADC/DAC register configuration, loopback test project, DDR4 reference design, schematics
Applications:
- 5G/LTE MIMO wireless infrastructure
- Satellite communication signal generation/analysis
- Radar signal processing and early-warning data links
- High-speed multi-function test & measurement instruments
