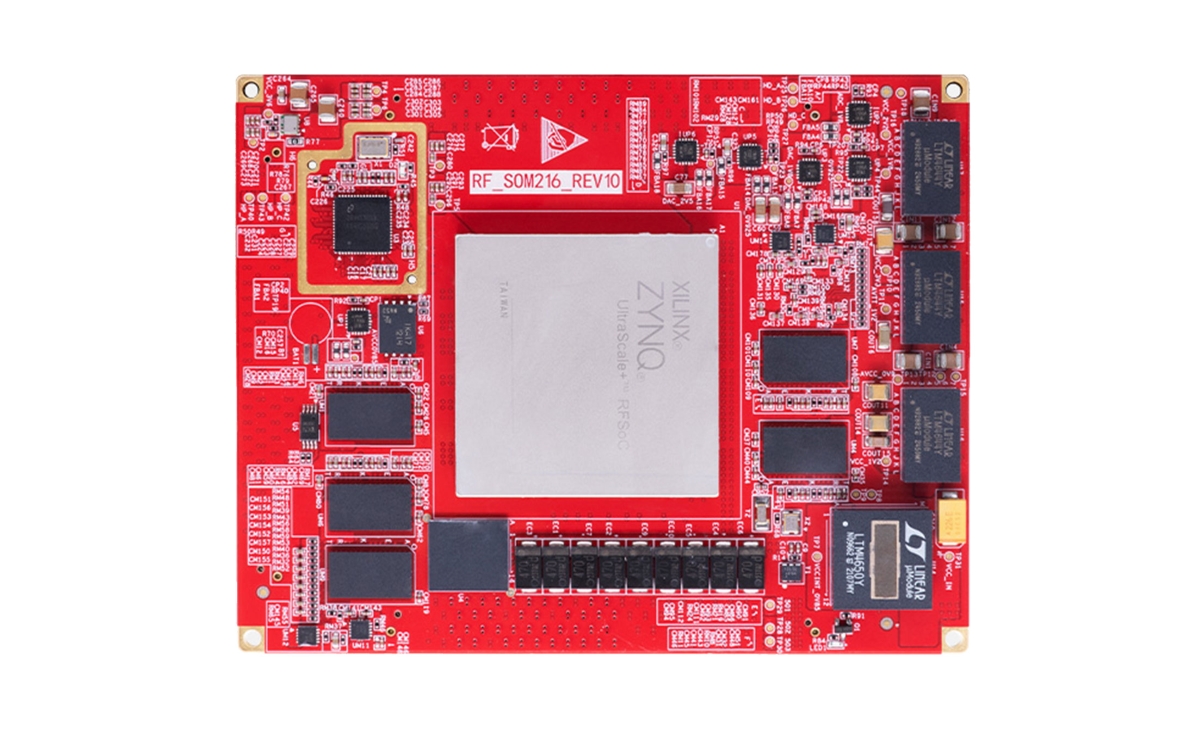

The RFSoM216 System-on-Module (SoM) integrates AMD/Xilinx Zynq™ UltraScale+™ RFSoC ZU49DR with high-speed DDR4 SDRAM, dual 512Mbit Quad-SPI Flash chips, and essential peripherals, forming a complete embedded processing platform for high-performance RF applications.
Applications
· 5G RF applications
· Radar system
· Software Defined Radio (SDR)
· Phased array system
· Spectrum monitoring
Key Features
· AMD/Xilinx Zynq™ Ultrascale+™ RFSoC ZU49DR:
· ARM® quad-core Cortex™-A53 up to 1.333GHz
· ARM® dual-core Cortex™-R5F up to 533MHz
· 16nm FinFET+ FPGA fabric
· 16x 14-bit RF-ADC, up to 2.5GSPS
· 16x 14-bit RF-DAC, up to 9.85GSPS

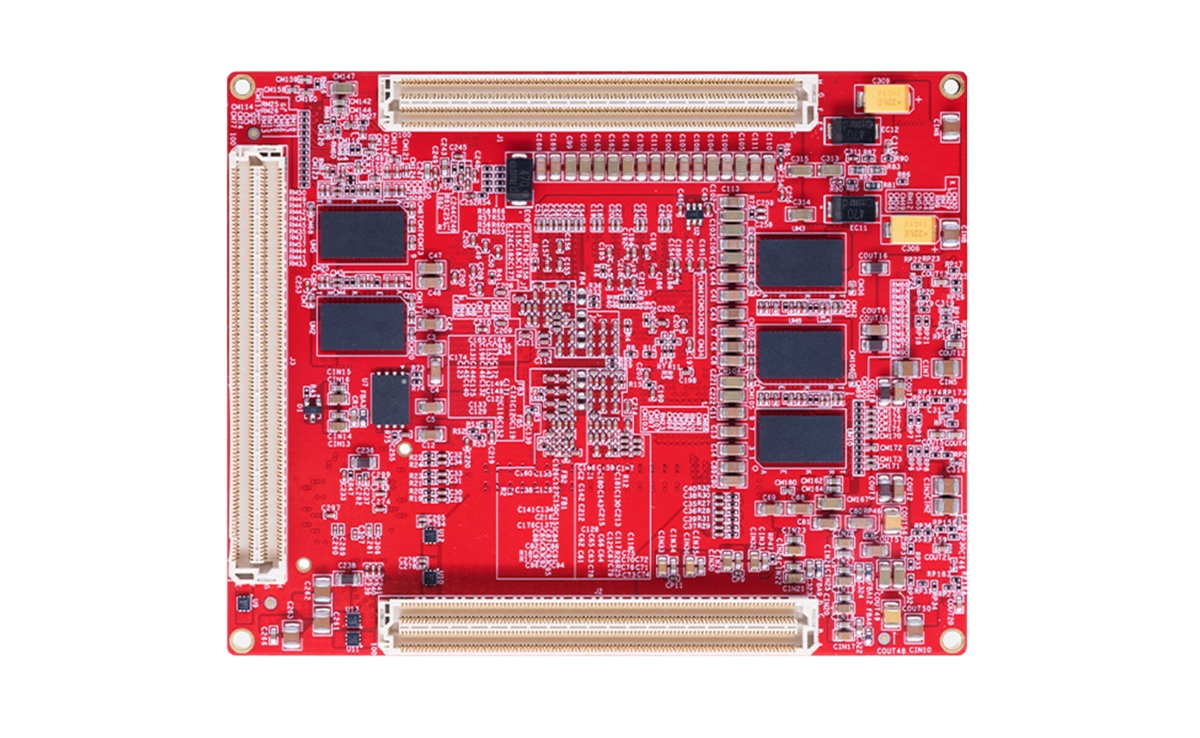

· Pluggable module with 3 x 400Pin board-to-board connectors
· 5 GByte (64-bit with ECC) DDR4 SDRAM on PS
· 5 GByte (72-bit) DDR4 SDRAM on PL
· 128MB QSPI Flash
· Gigabit transceivers
· 16 x PL GTY, up to 28.21 Gbps
· Work temperature range of -40°C to +85°C
· 12V single supply
· Dimensions: 120 x 95 mm form factor
