RFSOM207/208 SoM with AMD Zynq™ US+ RFSoC XCZU47/48DR

Brand: V3 Technology

EIC Product Code:

The RFSoM207/208 core board integrates hardware and software to rapidly prototype high-performance wireless receivers and capture & analyze over-the-air signals. It adopts direct RF sampling with 8 RF transceivers, based on a minimal programmable RFSoC system compatible with SDR frameworks, offering wideband processing and massive data computation for wireless verification, spectrum monitoring, signal intelligence and wideband signal recording.

Availability: in stock

The RFSoM207/208 core board integrates hardware and software to rapidly prototype high-performance wireless receivers and capture & analyze over-the-air signals. It adopts direct RF sampling with 8 RF transceivers, based on a minimal programmable RFSoC system compatible with SDR frameworks, offering wideband processing and massive data computation for wireless verification, spectrum monitoring, signal intelligence and wideband signal recording. The onboard 96 MHz high-performance MEMS oscillator with low vibration sensitivity and high shock resistance boosts system frequency accuracy and synchronization.RFSoM207 and RFSoM208 are pin-compatible with identical dimensions for direct swap; RFSoM207 uses ZU47DR RFSoC while RFSoM208 uses ZU48DR.

Applications
·  5G FR1 / FR2 RF & Baseband
·  Radar system
·  Software Defined Radio (SDR)
·  Phased array system
·  Spectrum monitoring
·  Medical Systems



Key Features
·  AMD/Xilinx Zynq™ UltraScale+™ RFSoC ZU47DR / ZU48DR:
      ·  ARM® quad-core Cortex™-A53 up to 1.333GHz
      ·  ARM® dual-core Cortex™-R5F up to 533MHz
      ·  16nm FinFET+ FPGA fabric
      ·  8 × 14-bit RF-ADC, up to 5.0 GSPS
      ·  8 × 14-bit RF-DAC, up to 9.85 GSPS

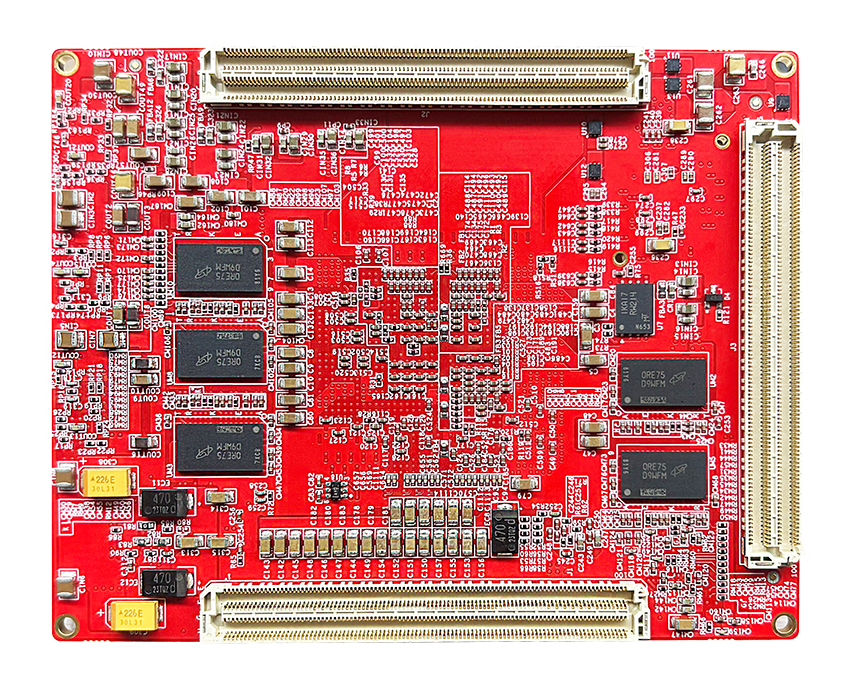

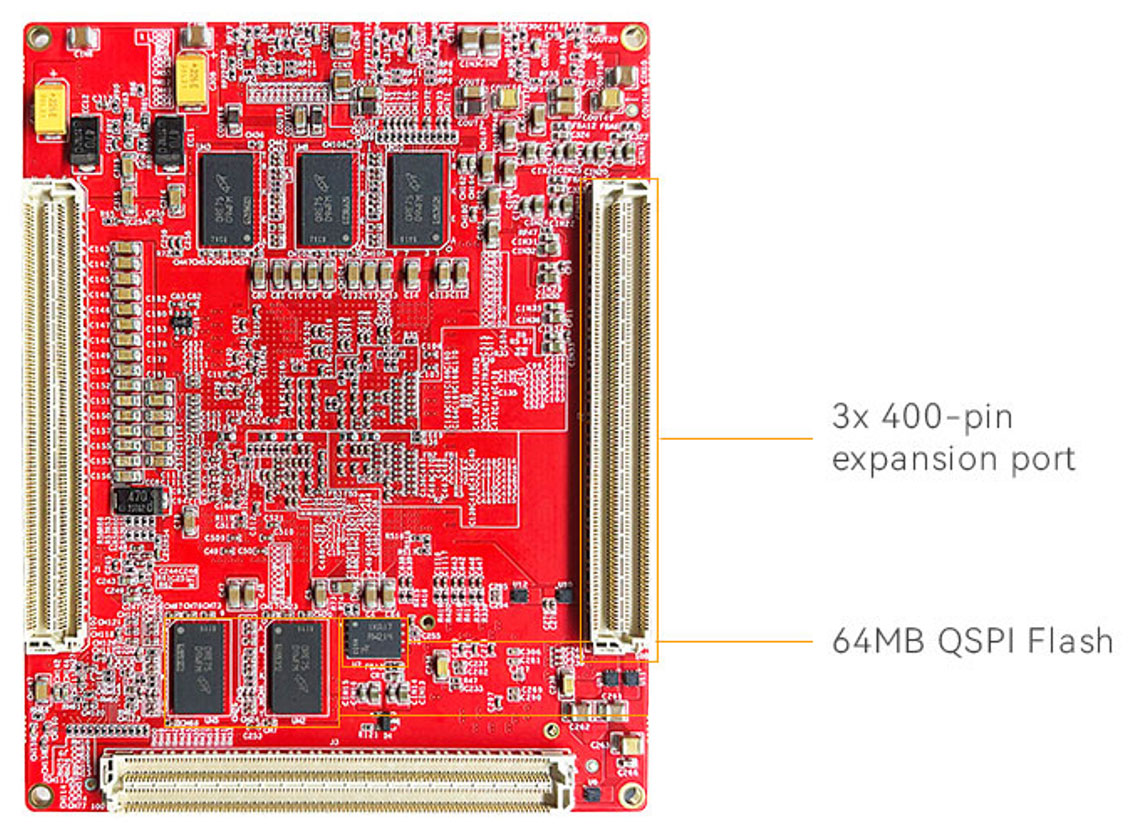

·  Pluggable module with 3 × 400-pin board-to-board connectors
·  5 GByte (72-bit) DDR4 SDRAM on PS
·  5 GByte (72-bit) DDR4 SDRAM on PL
·  128MB QSPI Flash
·  Gigabit transceivers
      ·  16 x PL GTY, up to 28.21 Gbps
·  Work temperature range of -40°C to +85°C
·  5V single supply
·  Dimensions: 120 x 95 mm form factor


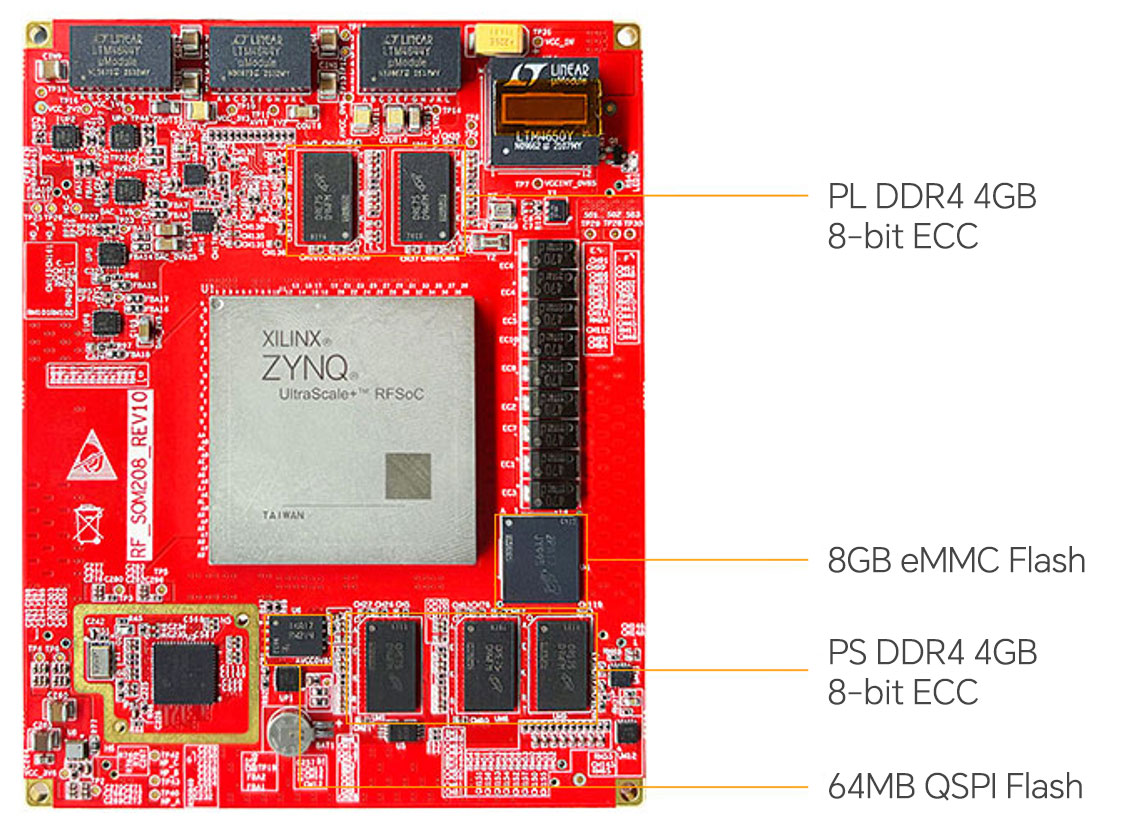

Module Features
Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU47DR-2FFVG1517I/XCZU48DR-2FFVG1517I


V3 AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU47/48DR System-on-Module/SoM
