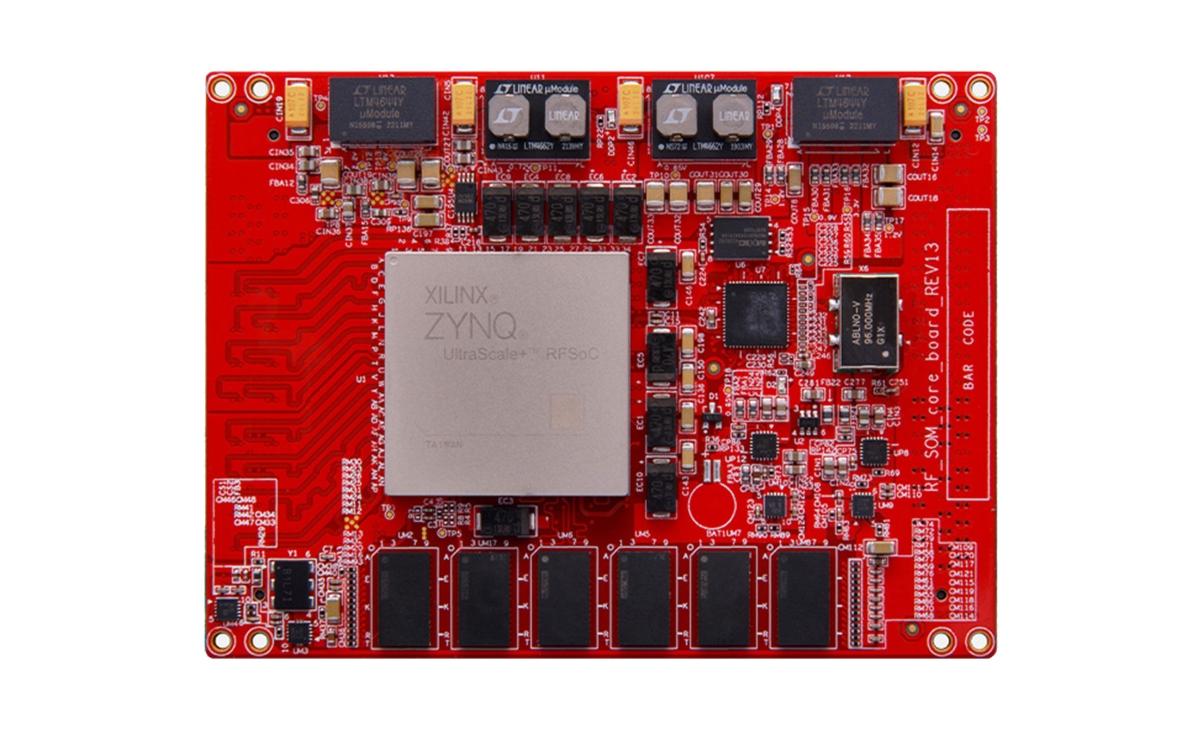

RFSoM106 SoM with AMD Zynq™ US+ RFSoC XCZU67DR
Brand: V3 Technology
EIC Product Code:
RFSoM106 core board integrates hardware and software to accelerate high-performance wireless receiver prototyping and over-the-air signal capture & analysis. It adopts direct RF sampling architecture with 8 RF Tx/Rx channels, built around a compact programmable RFSoC FPGA system compatible with SDR frameworks, delivering wideband processing and large-scale computing for wireless verification, spectrum monitoring, signal intelligence and wideband signal recording.
RFSoM106 core board integrates hardware and software to accelerate high-performance wireless receiver prototyping and over-the-air signal capture & analysis.It adopts direct RF sampling architecture with 8 RF Tx/Rx channels, built around a compact programmable RFSoC FPGA system compatible with SDR frameworks, delivering wideband processing and large-scale computing for wireless verification, spectrum monitoring, signal intelligence and wideband signal recording.Equipped with a 96 MHz high- performance MEMS silicon oscillator featuring low vibration sensitivity and high shock resistance, it improves system frequency accuracy and synchronization.RFSoM106 shares identical form factor and pin compatibility with RFSoM for direct interchange.
Applications
• 5G FR1/FR2 RF and baseband
• Radar system
• Software radio
• Phased array system
• Spectrum monitoring
• Medical system
Key Features
· AMD/Xilinx Zynq™ UltraScale+™ RFSoC ZU67DR :
· ARM® quad-core Cortex™-A53 up to 1.333GHz
· ARM® dual-core Cortex™-R5F up to 533MHz
· 16nm FinFET+ FPGA fabric
· 8 × 14-bit RF-ADC, up to 2.95 GSPS
· 8 × 14-bit RF-DAC, up to 10.0 GSPS

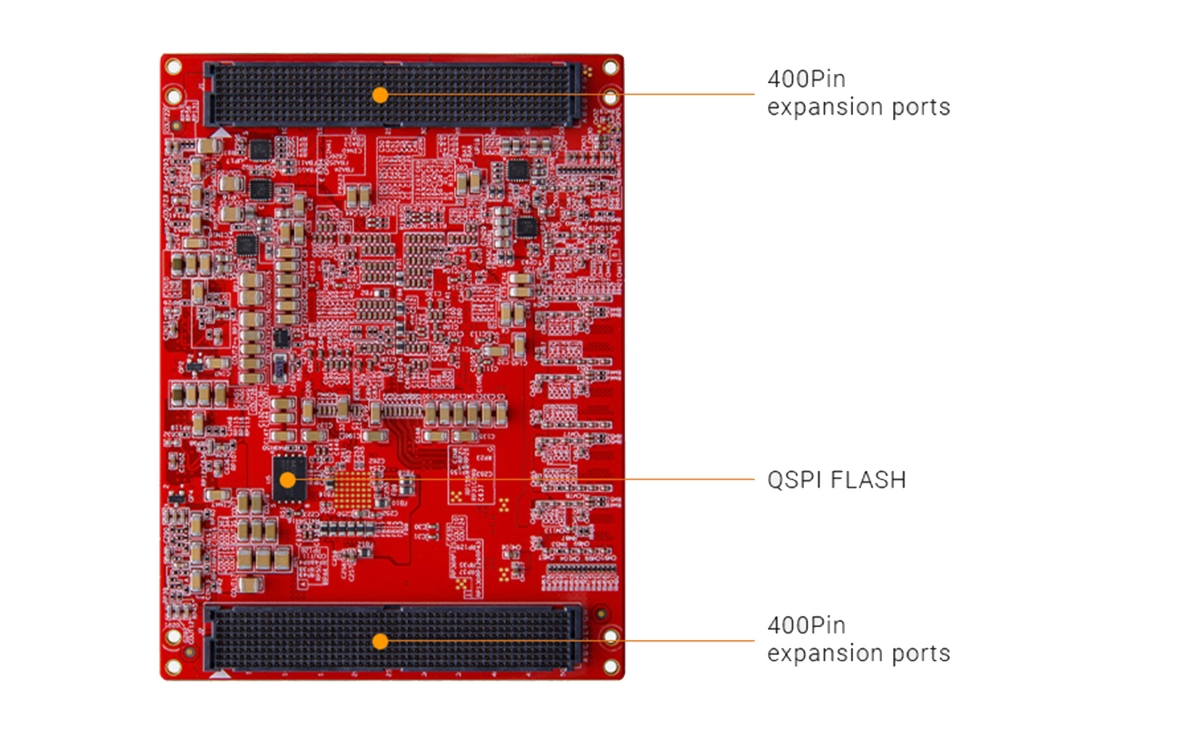

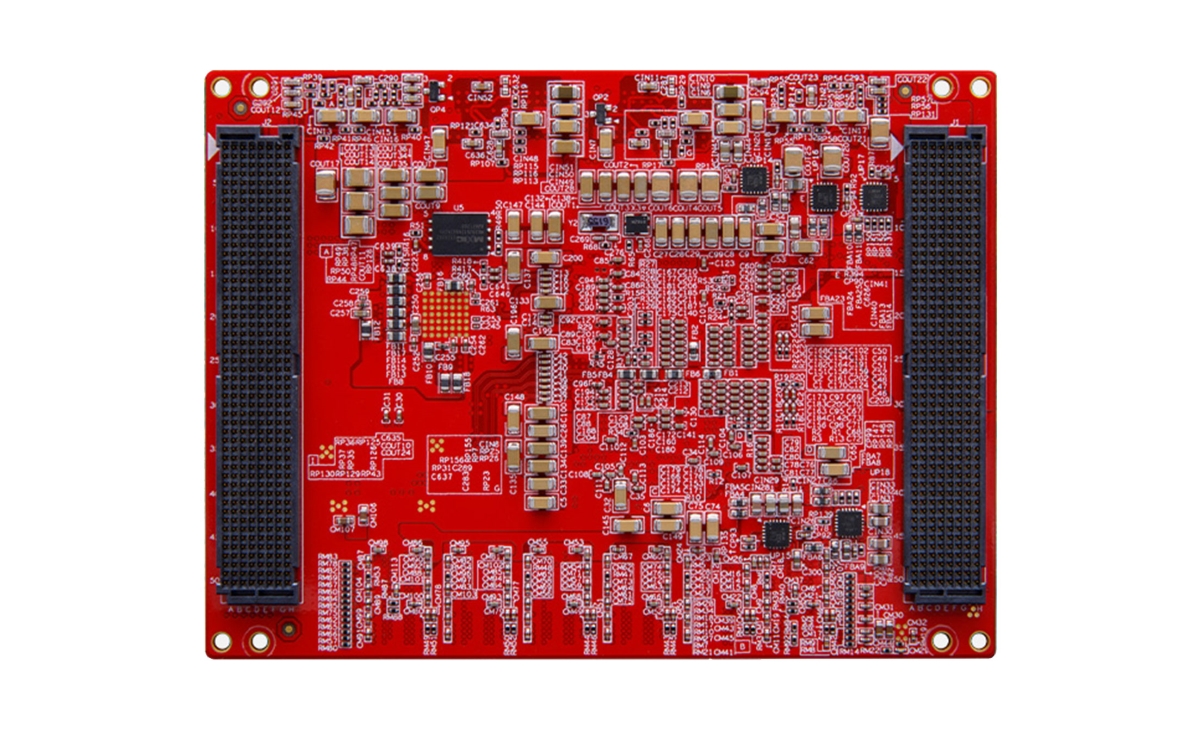

· Pluggable module with 2 × 400-pin board-to-board connectors

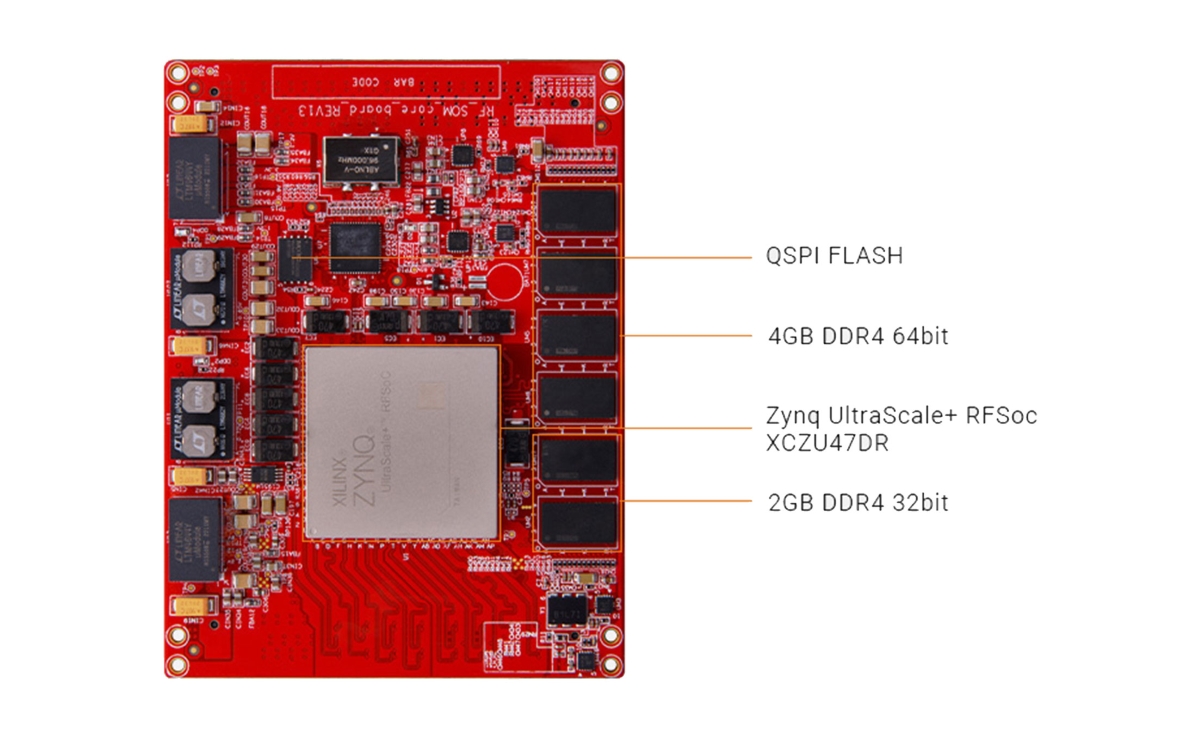

· 4 GByte (64-bit) DDR4 SDRAM on PS
· 2 GByte (32-bit) DDR4 SDRAM on PL
· 128MB QSPI Flash
· Gigabit transceivers
· 8 × PL GTY, up to 28.21 Gbps
· Work temperature range of -40°C to +85°C
· 5V single supply
· Dimensions: 115 x 85 mm form factor
Module Features
Featuring the AMD/Xilinx Zynq™ UltraScale+™ RFSoC XCZU67DR-2FFVE1156l
V3 AMD Xilinx Zynq™ UltraScale+™ RFSoC XCZU69DR System-on-Module/SoM
