HEA07 Dev Board & Kit with AMD Zynq™ US+ MPSoC ZU7EV
Brand: Alinx
EIC Product Code: HEA07 V1.0
HEA07 is a heterogeneous computing platform combining the AMD Xilinx Zynq UltraScale+ XCZU7EV FPGA with the NVIDIA Jetson AGX Orin/Thor modules. Interconnected via PCIe Gen3 x8 , it delivers hardware acceleration, real‑time data acquisition, and edge AI inference in one system.
Product Description
HEA07 is a high‑performance heterogeneous computing development platform built around the AMD Xilinx Zynq UltraScale+ XCZU7EV FPGA and the NVIDIA Jetson AGX Orin/Thor modules. The platform comprises the ACU7EVC core board, the Jetson module, and a carrier board. The FPGA and the AI module are interconnected via PCIe Gen3 x8, delivering up to 80 Gbps of bandwidth for seamless data exchange. This architecture enables collaborative processing for demanding applications such as real‑time data acquisition, hardware acceleration, edge AI inference, autonomous robotics, and multimodal large‑model deployment.
Applications
● Compute Acceleration
● Machine Learning and AI
● Network Acceleration
● Wired Communications
● 5G Baseband
● Radar
● Test and Measurement
● Emulation and Prototyping
Key Features

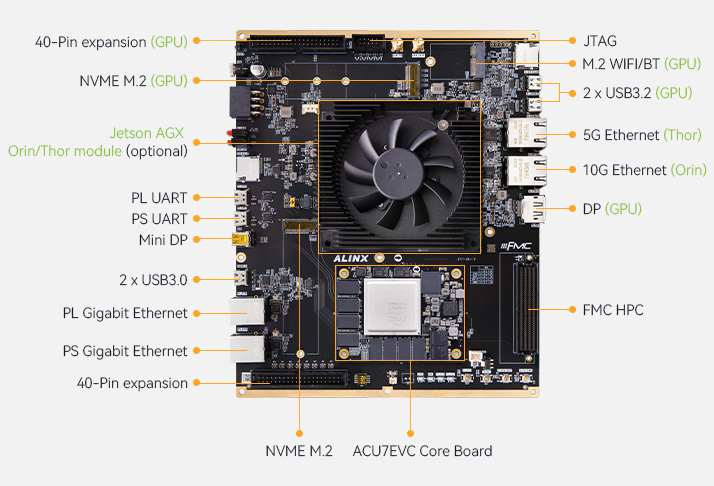

System‑on‑Module (ACU7EVC)
● AMD Zynq UltraScale+™ XCZU7EV
◆ 16nm FinFET FPGA fabric
◆ Quad‑core ARM Cortex‑A53
◆ dual‑core Cortex‑R5F
◆ Arm Mali‑400 MP2 GPU
◆ H.264/H.265 hardware codec
◆ 504K system logic , 1728 DSP
● 8 GB DDR4 SDRAM (4 GB PS + 4 GB PL)
● 32 GB eMMC Flash
● 64 MB QSPI FlashFPGA (MPSOC) Interfaces
● 1 x M.2 (PCIe x1, NVMe SSD)
● 1 x mini DisplayPort output (up to 4K@30Hz)
● 1 x USB 3.0 Type‑C
● 2 x Gigabit Ethernet (PS and PL）
● 1 x FMC HPC
● 2 x UART (PS and PL, Type‑C)
● 1 x JTAG
● 1 x Micro SD card slot
● 1 x 40‑pin expansion
● 4 x user LEDs, 1 x power LED, 1 x DONE LED
● 3 x push buttons (power‑switch + 2 user keys)
● Dimensions: 271 x 200 mm form factorNVIDIA Jetson Orin / Thor Series System
● NVIDIA Jetson Thor Series Modules:
◆ Jetson Thor Series Modules 128 GB 256bit LPDDR5X memory: Up to 2070 TFLOPs.
(*Above Jetson modules are add-on options which need to be purchased separately. Please contact sales.online@alinx.com for more details.)● NVIDIA Jetson AGX Orin Module:
◆ Jetson AGX Orin Modules 64GB: Up to 275 TOPs.
◆ Jetson AGX Orin Modules 32GB: Up to 241 TOPs.
(*Above Jetson modules are add-on options which need to be purchased separately. Please contact sales.online@alinx.com for more details.)NVIDIA Jetson Module Interfaces
● 1 x DP Interface
● 1 x 10G Ethernet (for AGX Orin modules)
● 1 x 5G Ethernet (for Thor modules)
● 1 x M.2 KEY‑M (PCIe x4 for AGX / x2 for Thor, NVMe SSD)
● 1 x M.2 WIFI/BT interface
● 2 x USB3.2 Type-C
● 1 x Micro SD card slot (for AGX Orin boot/storage)
● 40-pin connector
Development Board Features
Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU7EV-2FFVC1156I Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.
* The HEA07 development board consists of a ACU7EVC SoM and base board. If you want to purchase ACU7EVC SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

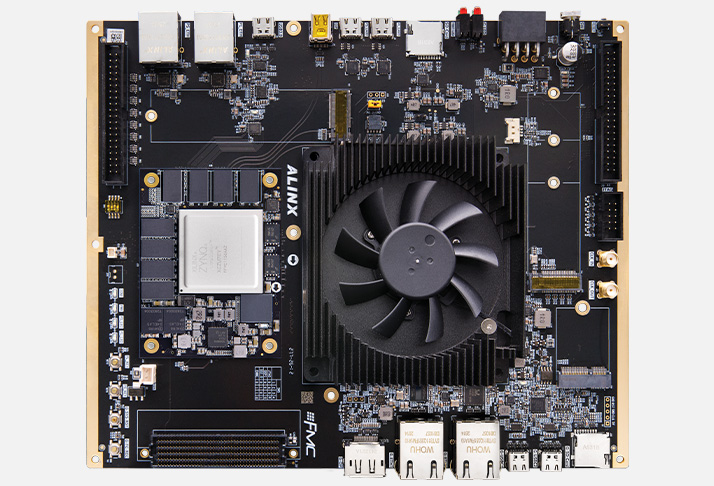

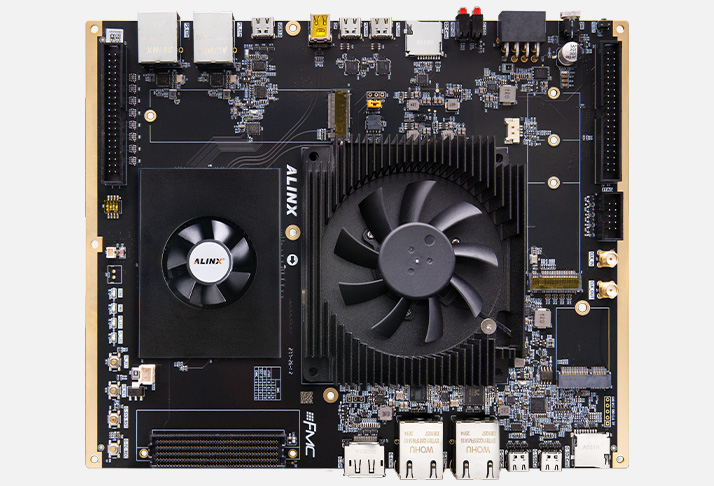

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU7EV FPGA development board and Some accessories
The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Heatsink Kit (preinstalled) | 1 |
| SD Card | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | GTH 16.3Gbps | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HEA07 | XCZU7EV-2FFVC1156I | 8GB | 64MB | 16 | 4493 | ||||||||
| HEA07 + NVIDIA Jetson AGX Orin 32GB GPU Modules | XCZU7EV-2FFVC1156I | 8GB | 64MB | 16 | 7488 | ||||||||
| HEA07 + NVIDIA Jetson AGX Orin 64GB GPU Modules | XCZU7EV-2FFVC1156I | 8GB | 64MB | 16 | 8986 | ||||||||
| HEA07 + NVIDIA Jetson Thor T5000 Modules | XCZU7EV-2FFVC1156I | 8GB | 64MB | 16 | 11981 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
