AXW104 Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z020
Brand: Alinx
EIC Product Code: AXW104
AXW104 is a Zynq-7000 XC7Z020-2CLG400I clock synchronization board with 1GB DDR3, 32MB QSPI Flash, Gigabit Ethernet, and an LMK04828 providing up to 14 differential SMA clock outputs. It targets ADC/DAC synchronization, 5G/LTE, satellite, radar, and test applications.
Product Description

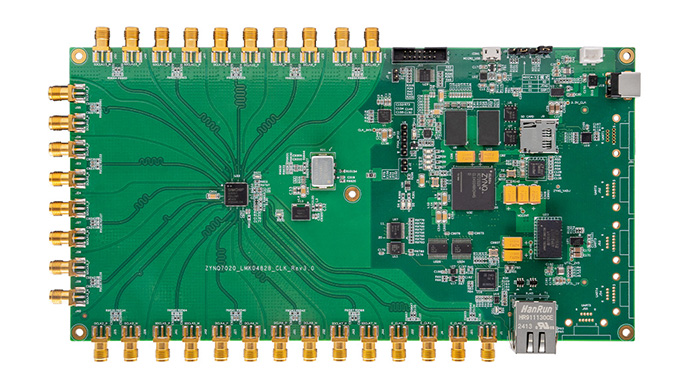

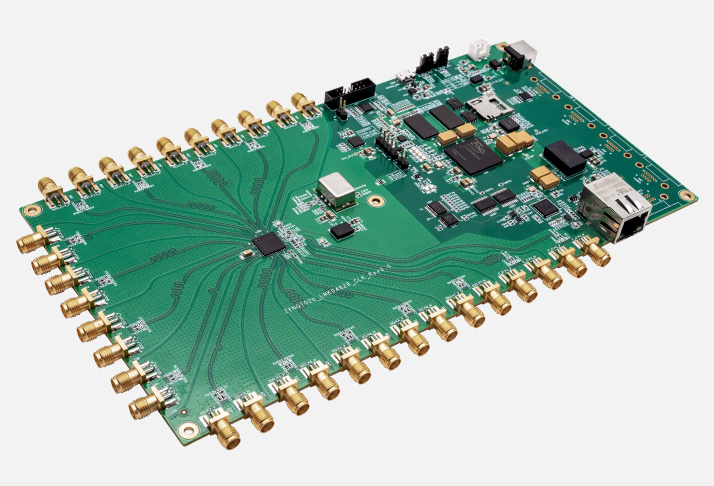

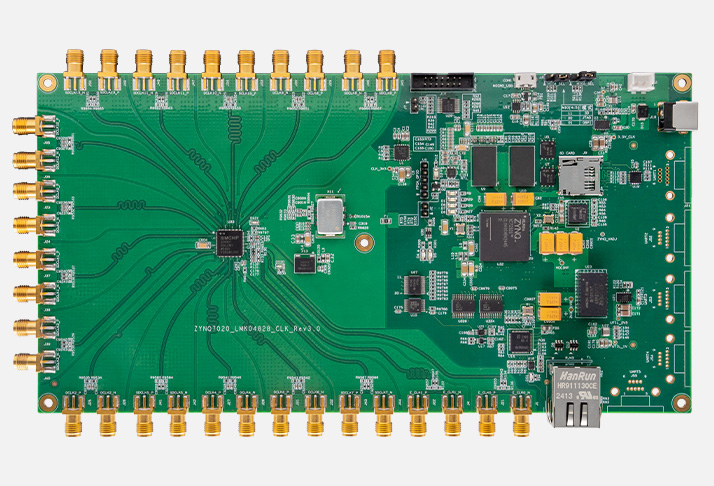

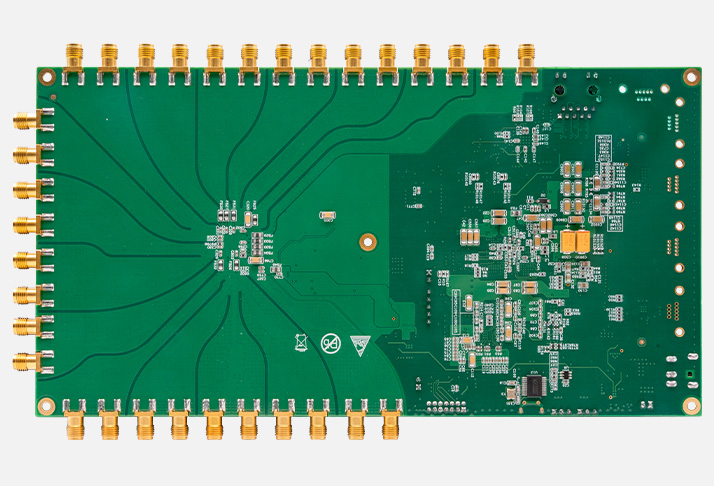

AXW104 is a clock synchronization board based on the AMD/Xilinx Zynq-7000 SoC XC7Z020-2CLG400I. It offers 1GB DDR3 SDRAM, 32MB QSPI Flash, Gigabit Ethernet, Micro SD, and USB-UART. An onboard LMK04828 provides 14 differential clock outputs via SMA. It is designed for multi-channel ADC/DAC synchronization, 5G/LTE, satellite communications, radar, and test instrumentation.
Applications
● Multi-channel ADC/DAC synchronization
● 5G/LTE
● Satellite communications
● Radar
● Test instrumentation
Key Features

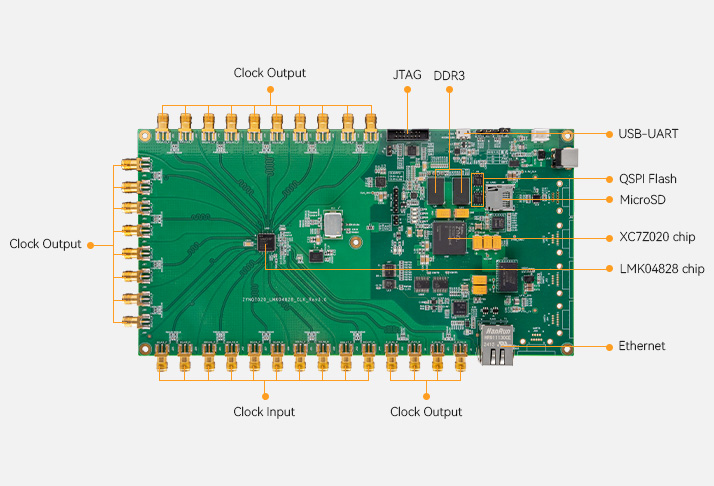

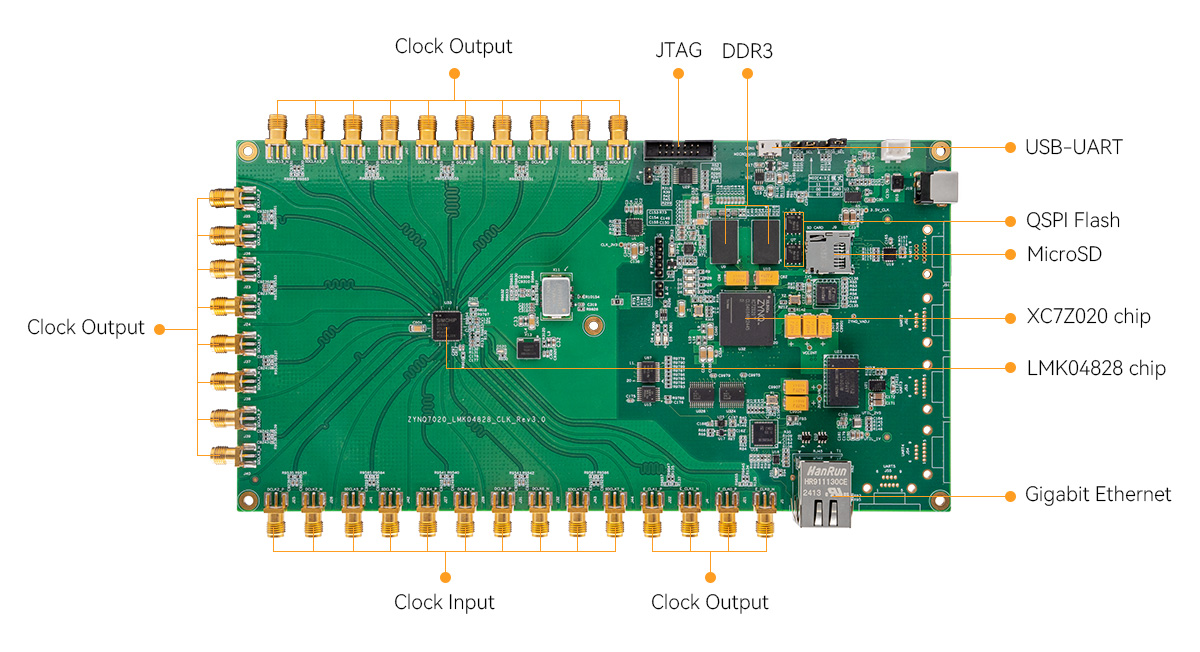

- ● AMD/Xilinx Zynq™ 7000 SoC XC7Z020-2CLG400I :
◆ ARM® dual-core Cortex™-A9
◆ Artix 7 28nm FPGA fabric
◆ 85K Logic Cells, 220 DSP Slices● 1 GByte (32-bit) DDR3 SDRAM on PS
● 32 MB QSPI Flash
● Onboard LMK04828 clock chip
● 14 x differential clock outputs (SMA)
● 2 x external clock inputs (SMA) - ● 1 x Gigabit Ethernet
● 1 x PS UART
● 5 x PL UART(Reserved)
● 1 x JTAG
● 4 x PL GPIO
● 1 x Micro SD
● 4 x PL LED
● 1 x 12V DC input
● Dimensions: 230 x 120 mm form factor
Development Board Features
Featuring the AMD/Xilinx's Zynq™ 7000 SoC XC7Z020-2CLG400I Adaptive SoC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.
What's Inside the Box
ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z020 development board and Some accessories
| Development Board | 1 | TF Card | 1 |
|---|---|---|---|
| 12V Power Adapter | 1 | Power cord | 1 |
Product Matrix
| Product Model | Preferred Model | Zynq 7000 SoC | DDR3 SDRAM (PS) | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXW104 | XC7Z020-2CLG400I | 1 GB | 32 MB | 3744 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
