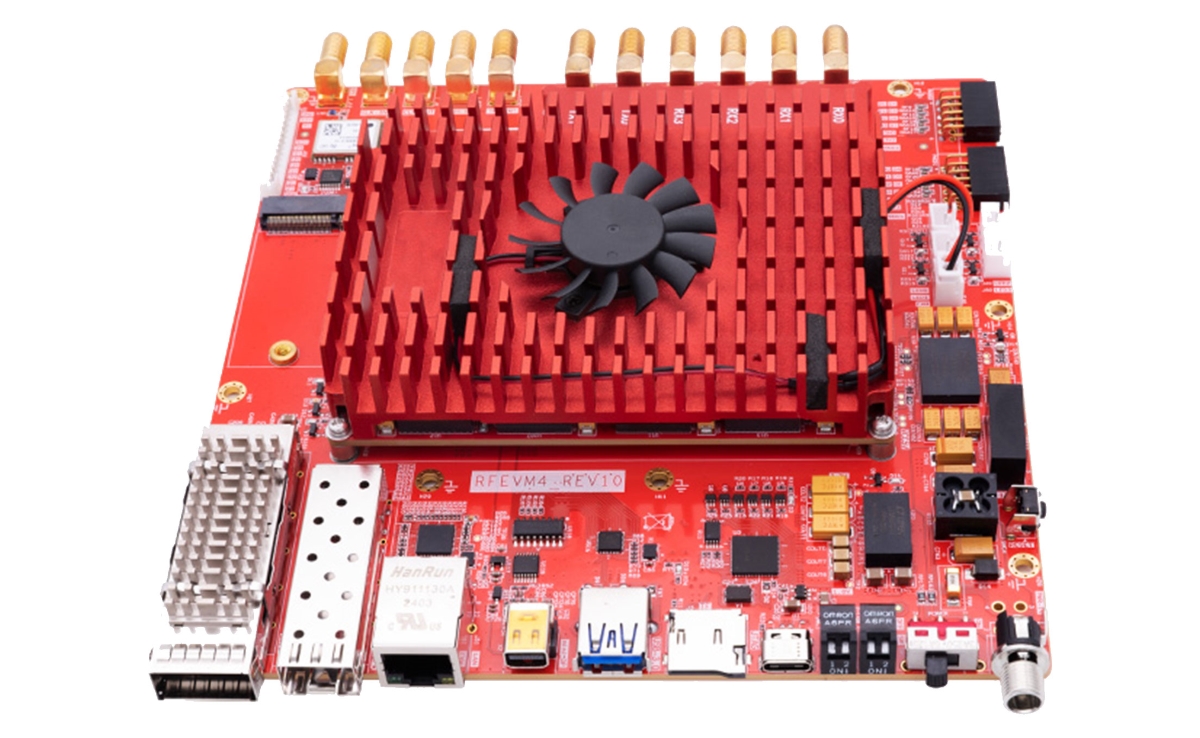

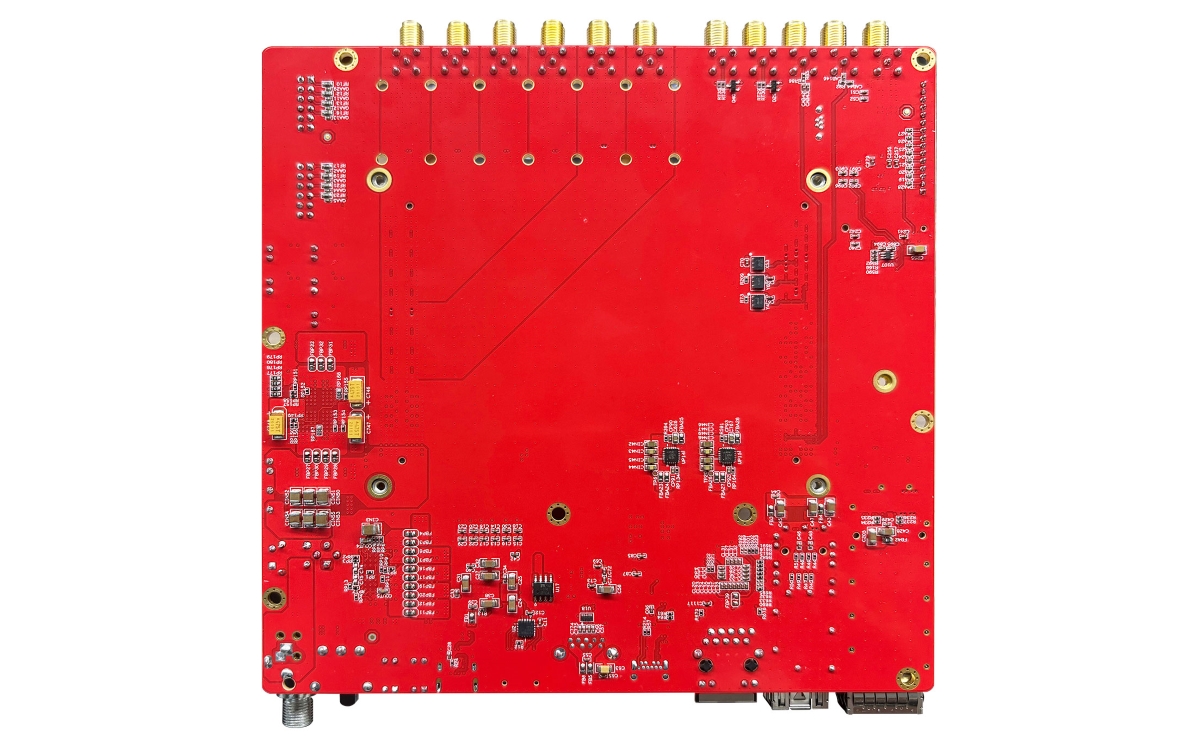

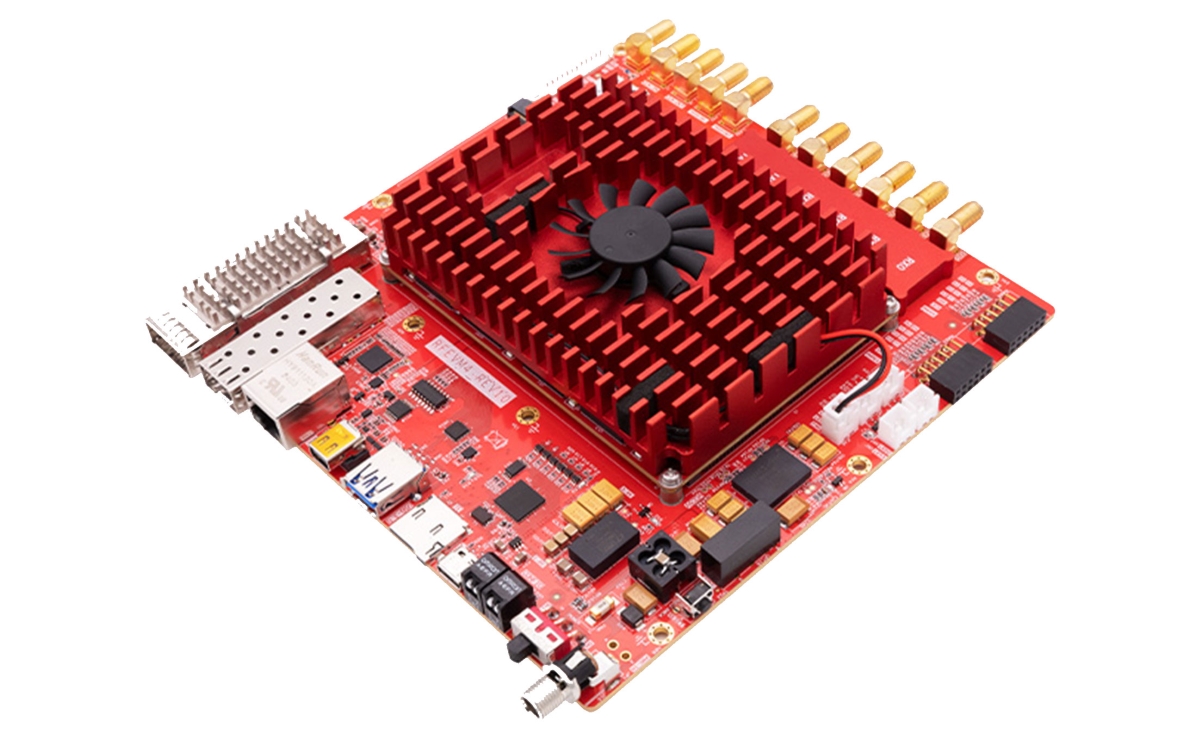

RFEVM4 - Dev Board & Kit with AMD Zynq™ US+ RFSoC XCZU67DR
EIC Product Code:
The RFEVM4 development board, based on the AMD Zynq™ UltraScale+™ RFSoC DFE ZU67DR, is an ideal platform for adaptive radio development. It accelerates prototype evaluation for 5G New Radio (5G NR), radar, and a wide range of high-performance RF applications.
The RFEVM4 development board is built around the AMD Xilinx Zynq UltraScale+ RFSoC ZU67DR. It provides 4 physical RF-ADC interfaces (2.95GSPS) and 2 physical RF-DAC interfaces (10GSPS), leveraging the chip's full 8-channel capability while offering optimized connectivity for target applications. It supports direct RF sampling below 7.125GHz, delivering a comprehensive solution for 5G communication, radar systems, and wired access testing from teaching labs to research verification.
Applications
· 5G FR1/FR2 Baseband & RF Systems
· Wideband Spectrum Monitoring & Analysis
· Phased-Array Radar / Digital Array Radar (DAR)
· Satellite Communications
· Multi-channel RF Signal Processing (for SDR, test equipment)
· Test & Measurement (T&M) Systems
Key Features
System-on-Module
· 5G FR1/FR2 Baseband & RF Systems
· 489K Logic Cells
· 8 x 14 bit 2.5GSPS RF-ADC
· 2 x 14 bit 5.9GSPS RF-DAC
· 8 x 14 bit 10GSPS RF-DAC
· ARM® quad-core Cortex™-A53 up to 1.333GHz
· ARM® dual-core Cortex™-R5F up to 533MHz
· 16nm FinFET+ FPGA fabric
· Hardened DFE (Digital Front-End) with integrated RF-ADC and RF-DAC
· 4 GB (64-bit) DDR4 SDRAM on PS
· 2 GB (32-bit) DDR4 SDRAM on PL
· 128 MB QSPI Flash
· Expansion: 2×400-pin high-speed connectors to the base board
Key Features
Base Board
· 1 x 100G QSFP28
· 1 x 10G SFP+
· 1 x M.2 SSD (PCIe Gen2 x2)
· 1 x Gigabit Ethernet
· 4× RF-ADC Input Interfaces
· 2× RF-DAC Output Interfaces
· 1 x USB3.0
· 1 x DisplayPort
· 1 x Type-C (JTAG + UART)
· 1 x Micro SD Card Slot
· 2 x PMOD Expansion Interfaces
· 1 x High-precision GPS Module
· 4× User-programmable LEDs
· Power Switch & Reset Button
· 9-40V Wide Voltage DC Input
· Dimensions: 170mm x 170mm form factor
