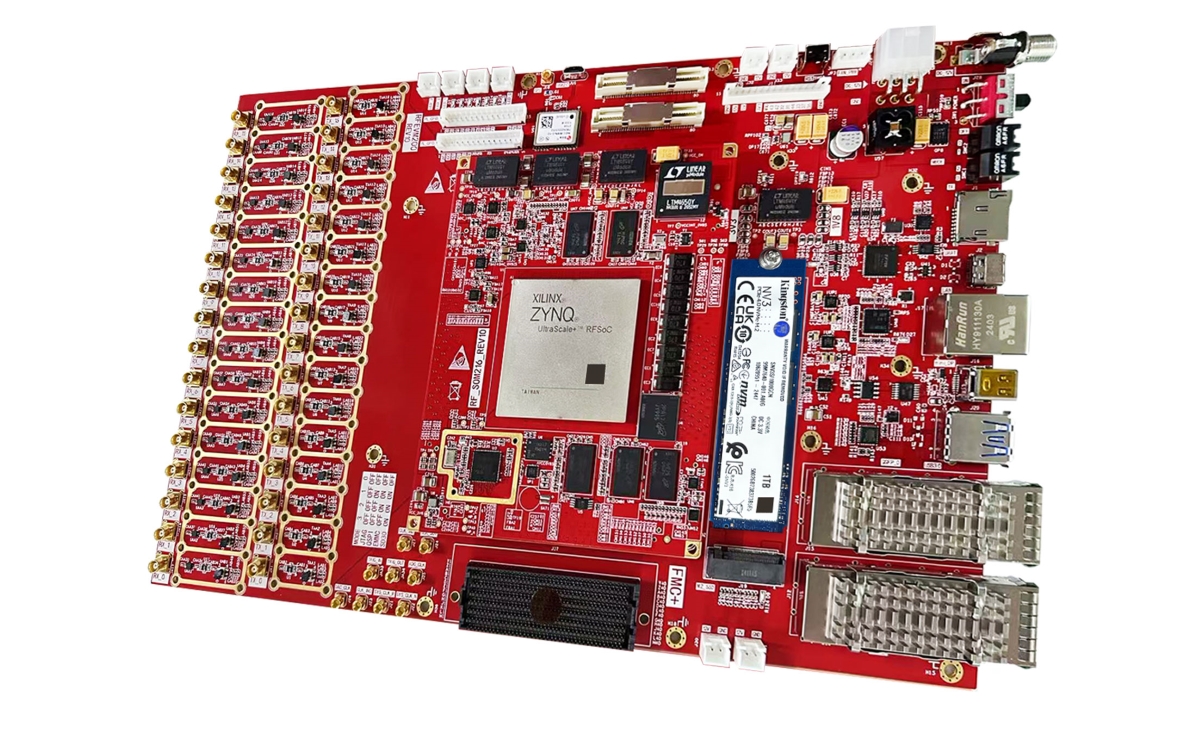

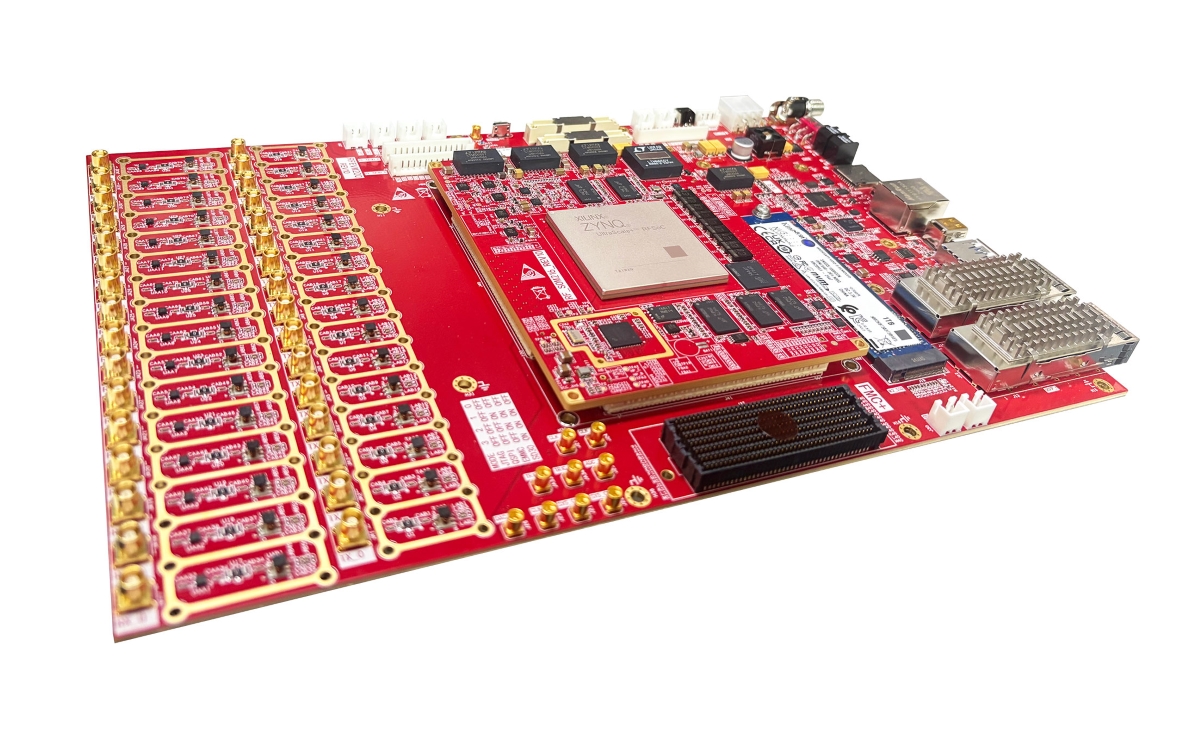

RFEVM216 - Dev Board & Kit with AMD Zynq™ US+ RFSoC ZU49DR
EIC Product Code:
The RFEVM216 development kit comprises the RFSoM216 SoM and the RFEVM200 base board, linked by a 56Gbps high-speed connector. The RFSoM216 SoM features Xilinx's Zynq UltraScale+ RFSoC Gen3 XCZU49DR FPGA as its main chip, supporting 16-channel 14-bit RF-ADC with a maximum sampling rate of 2.5GSPS. And it includes a 16-channel 14-bit RF-DAC with a maximum sampling rate of 9.84GSPS.
The RFEVM216 development kit comprises the RFSoM216 SoM and the base board, linked by high-speed connectors (32Gbps per channel). The RFSoM216 SoM features Xilinx's Zynq UltraScale+ RFSoC Gen3 XCZU49DR FPGA, supporting 16-channel 14-bit RF-ADC (2.5GSPS max) and 16-channel 14-bit RF-DAC (9.85GSPS max). This integration simplifies the RF signal chain, maximizes I/O density without sacrificing bandwidth, leverages heterogeneous processing, and reduces power consumption. Connectors extend RF-ADC/RF-DAC interfaces, clocks, MIO, GTY transceivers, and support configurable IO voltages on specific banks.
Supporting 5G baseband, cable TV access, and wireless communication applications; test and measurement, radar/early warning systems, satellite positioning, and other high-performance RF scenarios.
Applications
· Wireless access
· Test and measurement
· Early warning/radar
· Cable TV access
· Other high-performance RF applications
Key Features
System-on-Module
· AMD/Xilinx Zynq™ Ultrascale+™ RFSoC Gen3 ZU49DR:
· 930K Logic Cells
· 16 x 14bit 2.5 GSPS RF-ADC
· 16 x 14 bit 9.85GSPS RF-DAC
· ARM® quad-core Cortex™-A53 up to 1.3GHz
· ARM® dual-core Cortex™-R5F up to 533MHz
· 16nm FinFET+ FPGA fabric
· Pluggable module with a 56Gbps high-speed connector
· Single channel 5GB DDR4 SDRAM ECC on PS
· Dual channel 5GB DDR4 SDRAM on PL
· 128 MB QSPI Flash
Key Features

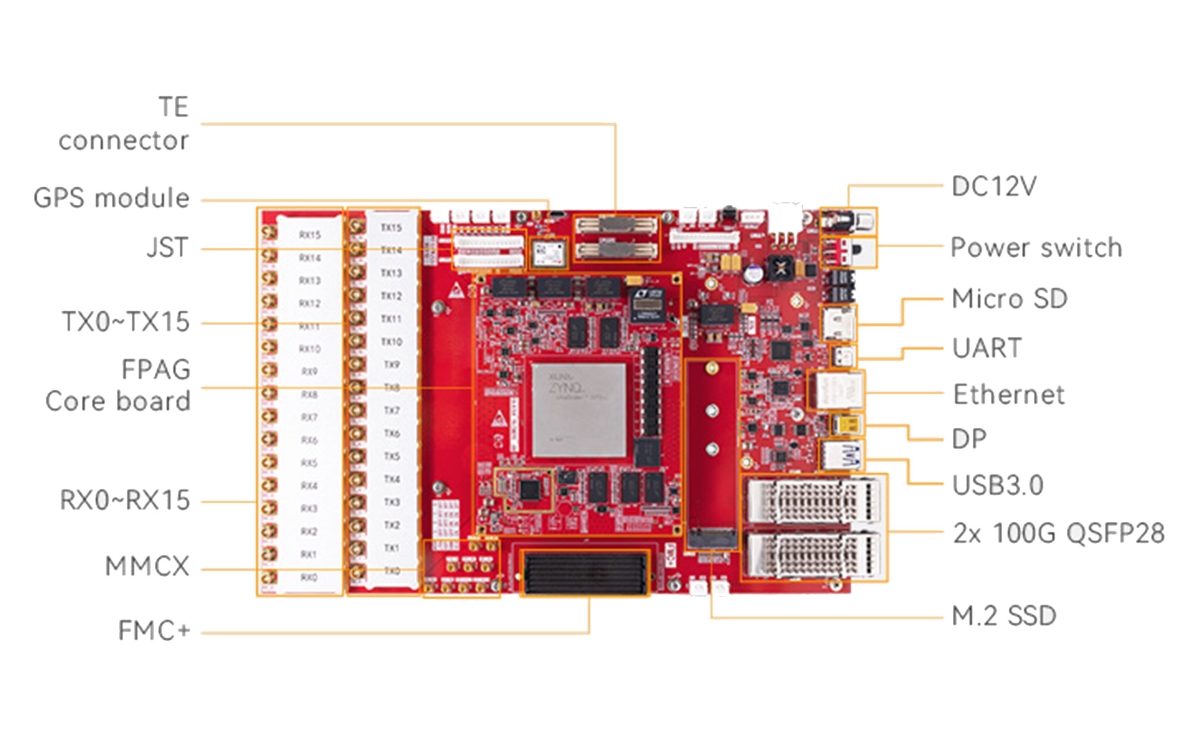

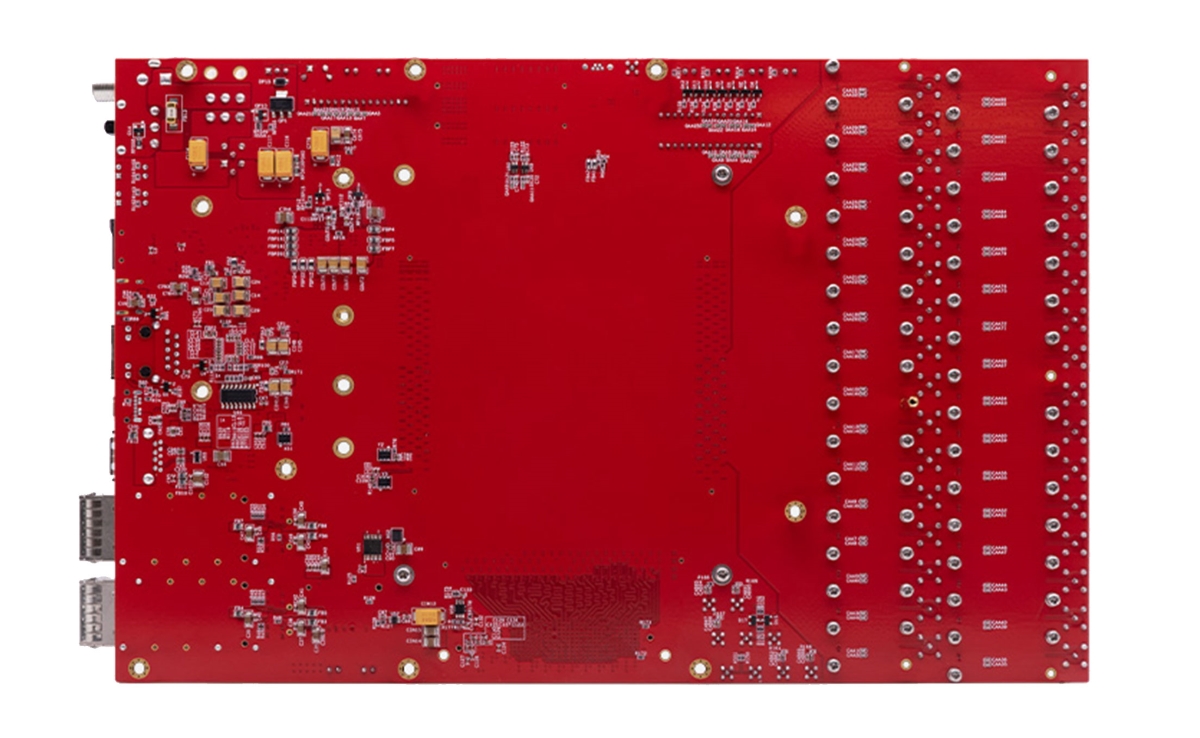

Base Board
· 2 x QSFP28 Optical (40G/100G)
· 1 x FMC+
· RF MCXs
· 16 x 14bit RF-ADC @ 2.5 GSPS
· 16 x 14bit RF-DAC @ 9.85 GSPS
· 1 x M.2 Interface
· 1 x MINI DisplayPort
· 1 x GPS
· 1 x USB 3.0 OTG Interface
· 1 x Gigabit Ethernet
· 1 x JTAG/UART (USB-C)
· 1 x Micro SD
· 1Mbit I2C Serial EEPROM
· 4 x LED
· 1 x KEY (1 x RESET )
· 12V single supply
· Dimensions: 277 x 180 mm form factor
