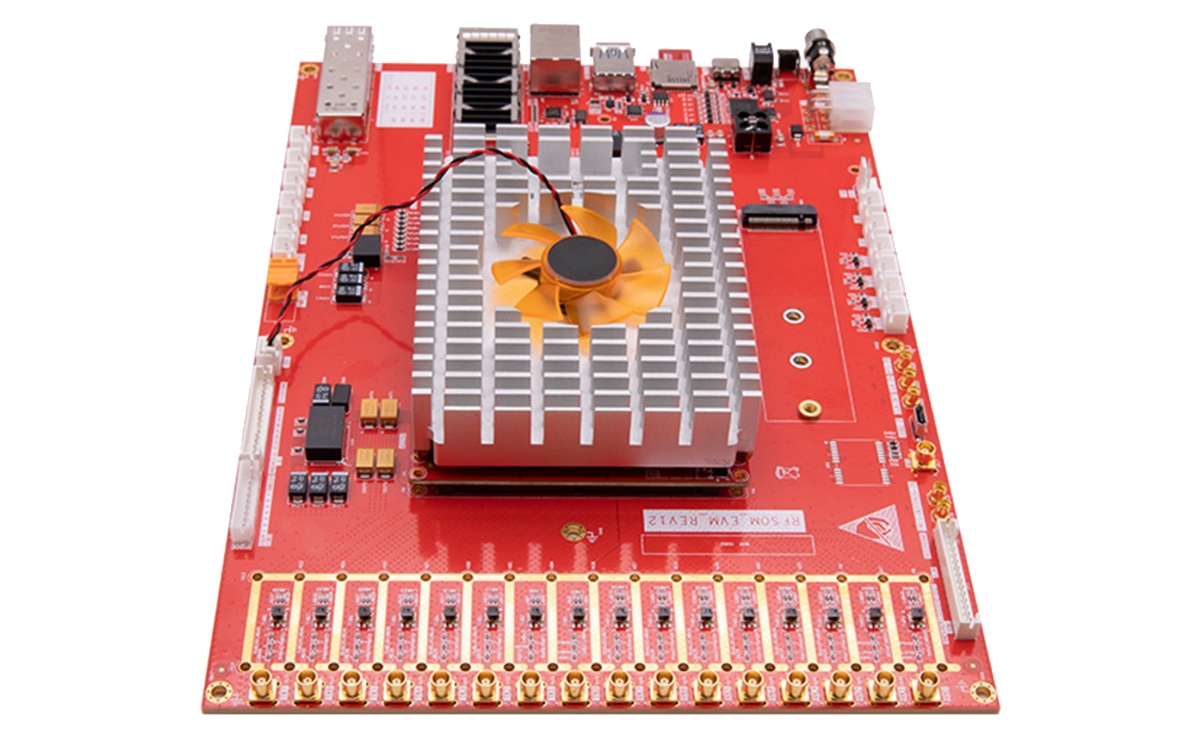

The RFEVM development board adopts the AMD Xilinx Zynq UltraScale+ RFSoC Gen3 series ZU47DR FPGA chip, integrating high-performance RF data converters, programmable logic, an ARM Cortex-A53 processing subsystem, and multi-gigabit transceivers. It supports 8-channel 14-bit RF-ADCs with a maximum sampling rate of 5 GSPS, and 8-channel 14-bit RF-DACs with a maximum sampling rate of 9.85 GSPS. The RF interfaces offer wide frequency band support through configurable coupling and conditioning circuits. It provides a comprehensive RF signal chain that maximizes I/O channel density and bandwidth while leveraging heterogeneous processing capabilities for reduced power consumption.
Designed for large-scale MIMO systems, 5G baseband processing, fixed wireless access (FWA), cable TV access, test and measurement (T&M), satellite communications, phased-array radar/digital array radar (DAR), and other high-performance RF applications.
Applications
· 5G FR1/FR2 Baseband & RF Systems
· Wideband Spectrum Monitoring & Analysis
· Phased-Array Radar / Digital Array Radar (DAR)
· Satellite Communications
· Multi-channel RF Signal Processing (for SDR, test equipment)
· Test & Measurement (T&M) Systems
Key Features
System-on-Module
· AMD/Xilinx Zynq™ Ultrascale+™ RFSoC Gen3 XCZU47DR:
· 930K Logic Cells
· 8 x 14 bit 2.5GSPS RF-ADC
· 8 x 14 bit 9.85GSPS RF-DAC
· ARM® quad-core Cortex™-A53 up to 1.333GHz
· ARM® dual-core Cortex™-R5F up to 533MHz
· 16nm FinFET+ FPGA fabric
· Digital RF-ADC, RF-DAC
· Pluggable module with 2 x Samtec board-to-board connectors
· 4 GByte (64-bit) DDR4 SDRAM on PS
· 2 GByte (32-bit) DDR4 SDRAM on PL
· 128 MB QSPI Flash

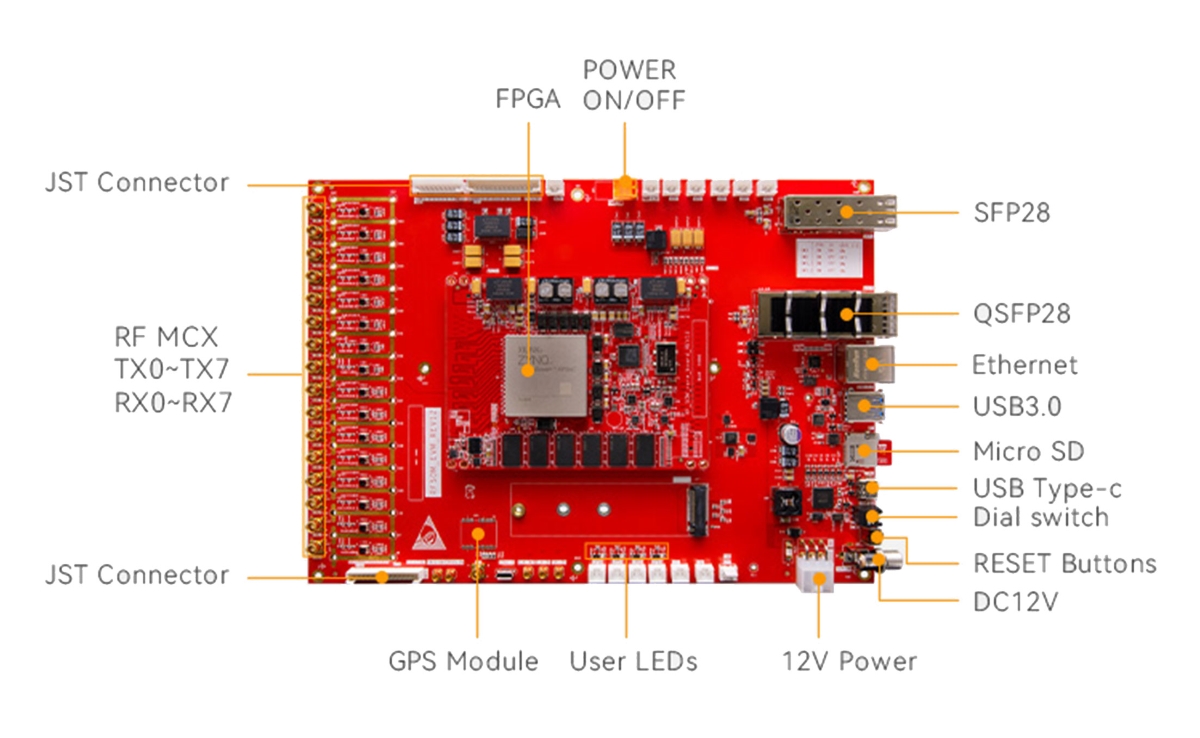

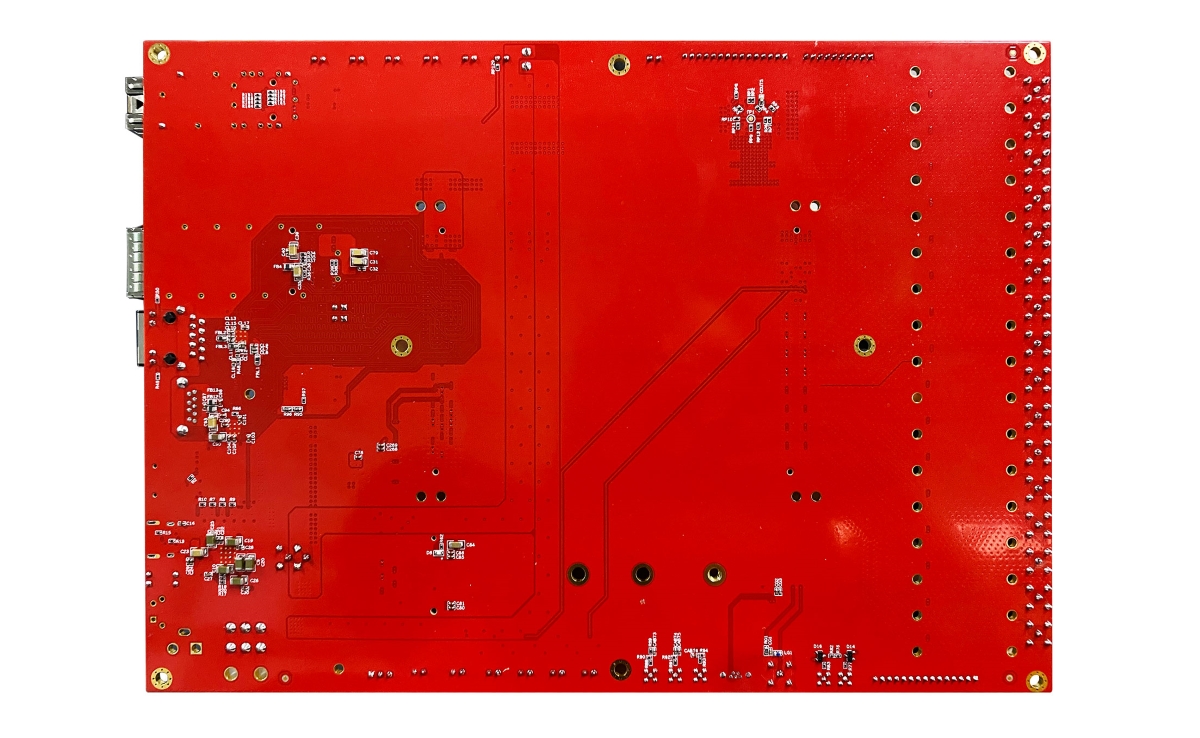

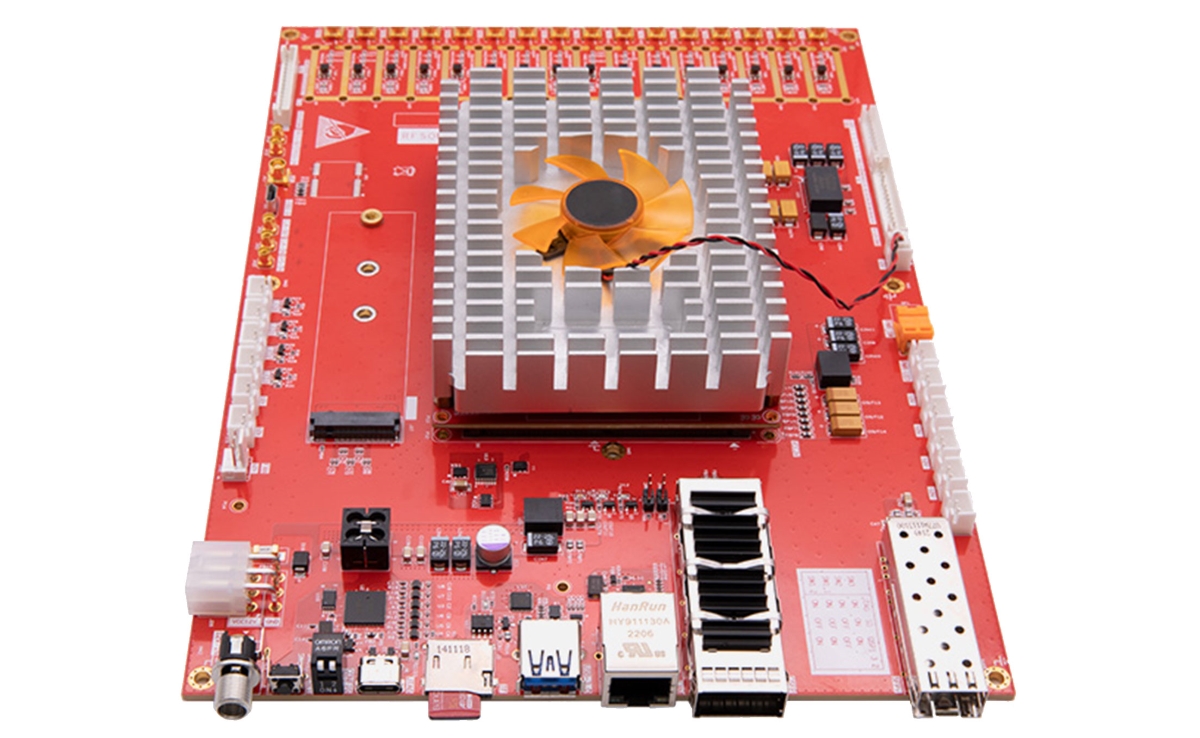

Key Features
Base Board
· 1 x M.2 Interface
· 1 x QSFP28 fiber optic
· 1 x SFP28 fiber optic
· 1 x Gigabit Ethernet
· RF MCXs
· 8 x 14bit RF-ADC @ 5.0 GSPS · 8 x 14bit RF-DAC @ 9.85 GSPS
· 1 x USB3.0
· 1 x UART on PS (USB to UART)
· 2 sets of PL IOs (x8), 1 set of PS IOs (x10)
· 1 x JTAG
· 1 x Micro SD
· EEPROM: 1Mbit I2C Serial EEPROM + 1 x Temperature sensor
· 4 x LED
· 1 x KEY (1 x RESET )
· 12V single supply
· Dimensions: 254 x 180 mm form factor
