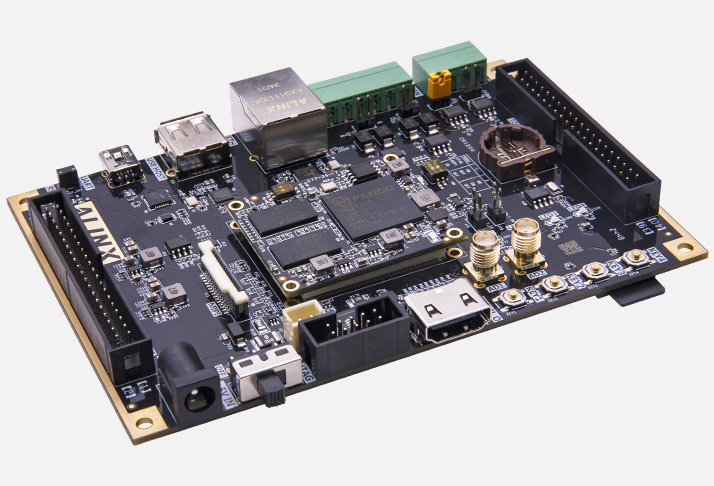

AXK100 FPGA Dev Board & Kit with Pango Kosmo-2 PG2K100
EIC Product Code: AXK100 V1.0
The AXK100 is a professional Kosmo2 FPGA development platform integrating a dual-core ARM Cortex-A53 processor and FPGA logic on the PG2K100 SoC, supported by a core board for processing and memory, and an expansion board offering diverse interfaces including Gigabit Ethernet, USB, HDMI, CAN, RS485, and MIPI camera for high-speed data exchange and industrial applications.
Product Description
AXK100 is a professional kosmo-2 FPGA development platform based on the PG2K100 SoC, which integrates a dual-core ARM Cortex-A53 processor and FPGA logic on a single chip. It features a core board with PG2K100, 1GB DDR3 SDRAM, and QSPI Flash for processing and memory, and an expansion board that provides diverse interfaces such as Gigabit Ethernet, USB 2.0 Host, HDMI, CAN, RS485, MIPI camera, SD card, and expansion ports for high-speed data exchange and industrial applications."
Applications
Automotive
● Road Sign Recognition
● ADAS
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Software Defined Radio
Industrial
● Motor control
● Industrial Control
● Industrial IoT
● Instrumentation
● Smart Grid
Video and Image Processing
● Professional Cameras
● Computer Vision
● Machine Vision
● Video Surveillance
Medical
● Endoscopy
● Ultrasound, CT, MRI
Key Features
System-on-Module
● PANGOMICRO Kosmo-2 SOPC:
◆ ARM® dual-core Cortex™-A53 up to 1 GHz● Pluggable module with 4 x board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM on PU
● 1 GByte (32-bit) DDR3 SDRAM on PA
● 32 MB OSPI Flash
● 16 MB QSPI Flash
● 8 GB eMMC FlashBase Board

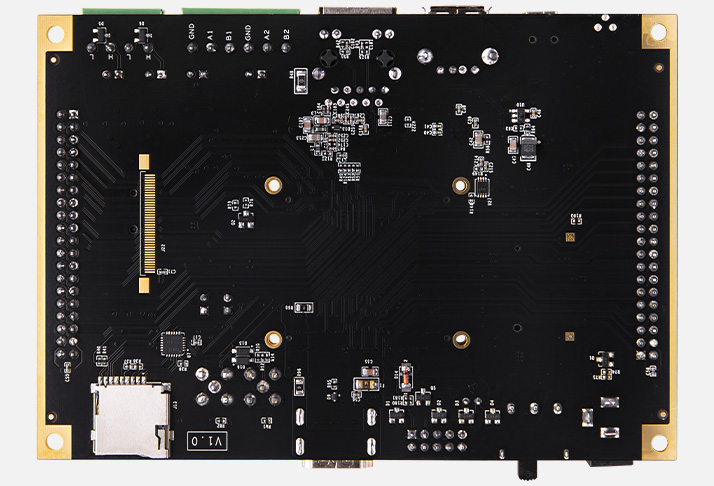

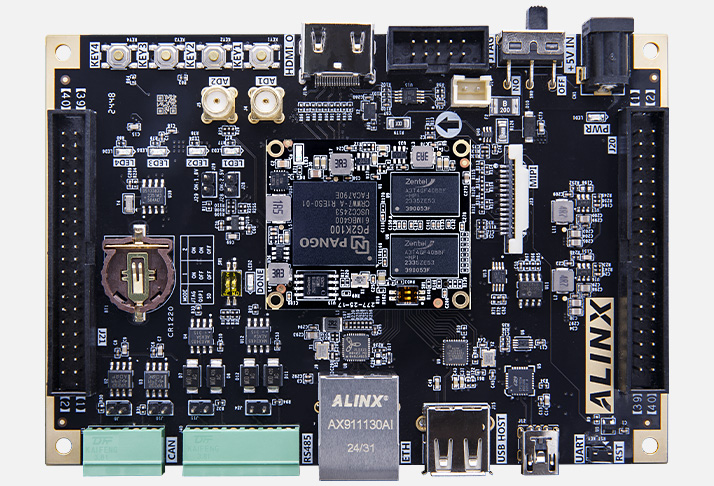

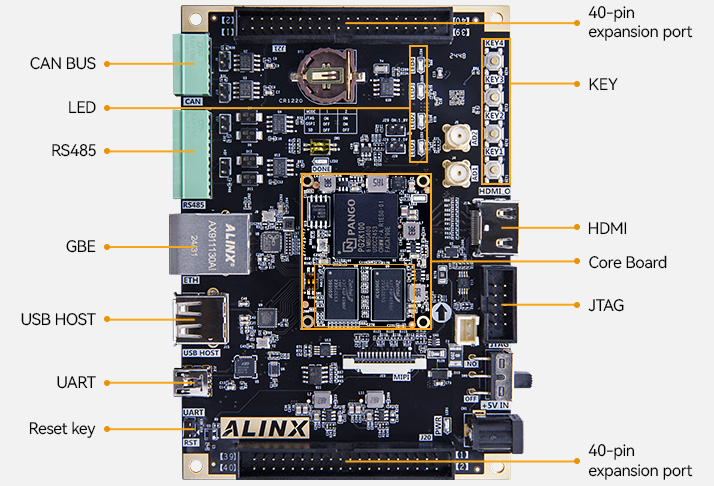

● 1 x Gigabit Ethernet
● 1 x HDMI
● 2 x CAN
● 2 x RS485
● 2 x USB2.0 (Host)
● 1 x UART to USB
● 1 x JTAG
● 1 x RTC
● 1 x EEPROM 24LC04 of IIC interface
● 1 x Temperature sensor(LM75)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)

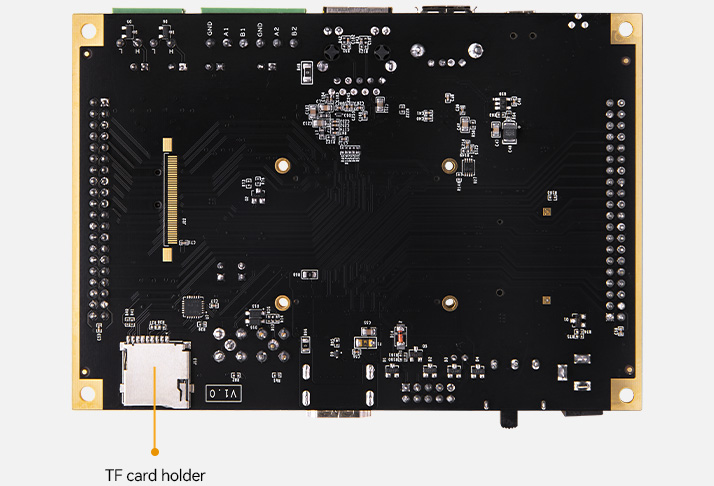

● 1 x Micro SD
● 7 x LED (4 user LEDs+ 2 power LED indicators+1 configuration LED)
● 6 x KEY (4 x user + 1 x switch + 4 x RST)
● 5V single supply
● Dimensions: 130 x 90 mm form factor
Development Board Features
Featuring the PANGOMICRO Kosmo-2 SOPC PG2K100-6IMBG400 Adaptive SOPC
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGOMICRO Kosmo-2 SOPC based application.
* The AXK401 development board consists of a K100 SoM and base board. If you want to purchase K100 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX Kosmo-2 SOPC PG2K100 development board and Some Accessories
| Base Board | 1 | System-on-Module | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 5V Power Adapter | 1 | Acrylic board | 1 |
| TF Card | 1 | Card Reader | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 SDRAM | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXK100 | √ | PG2K100-6IMBG400 | 1 GB | 16 MB | 236 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
