Product Description

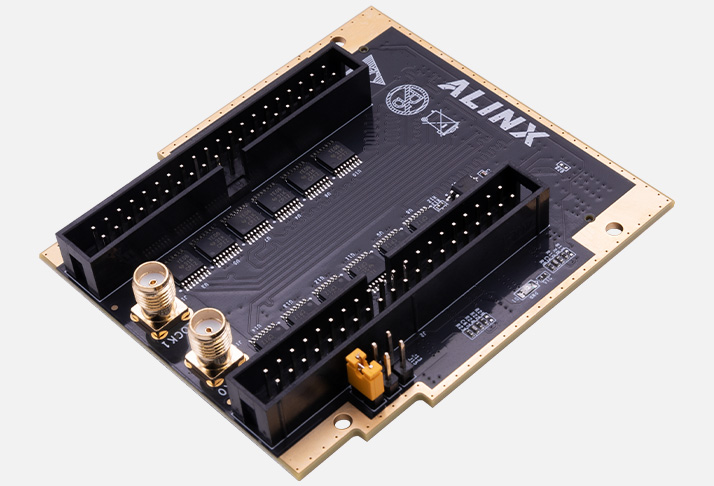

The FL1010-V is a flexible FMC mezzanine card for FPGA development, featuring 68 user I/Os with selectable 1.8V/3.3V/5V levels, dual SMA clock inputs, and VITA57.1 compliance.

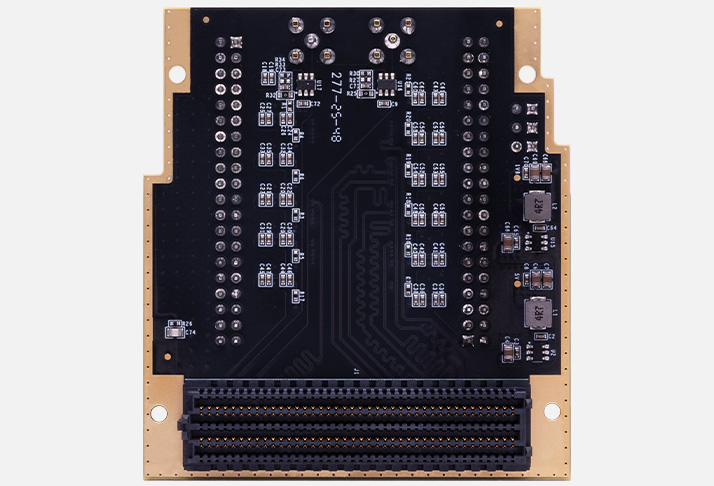

FL1010-V has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Applications
● FPGA Prototyping & Verification
● Industrial Control & Automation
● Communication & Signal Processing
● Test & Measurement Instrumentation
Key Features
- ● FMC Interface: LPC standard, VITA57.1 compliant
● Connector Model: ASP_134604_01
● Expansion Interface: 2×40-pin standard headers (2.54mm pitch)
● User I/Os: 68 channels - ● I/O Level Standards: 1.8V, 3.3V, 5V (selectable via jumpers J13/J14/J15)
● Level Shifter IC: TXB0106PW (bidirectional)

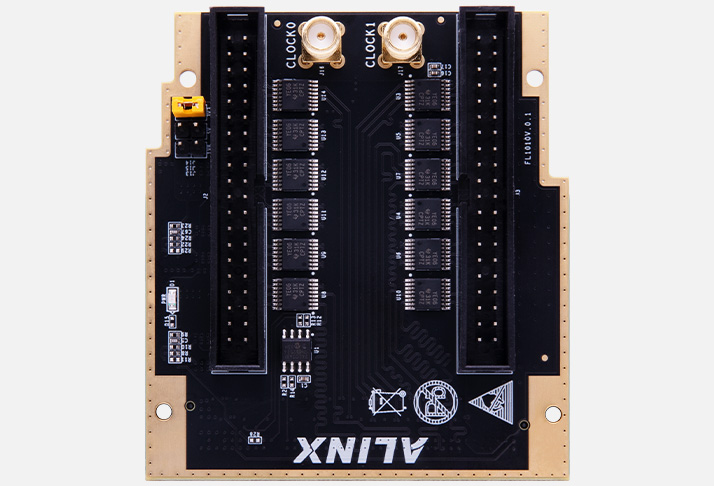

● Clock Input: 2×SMA connectors (default input level 3.3V)
● Dimensions: 76.5 x 69mm form factor

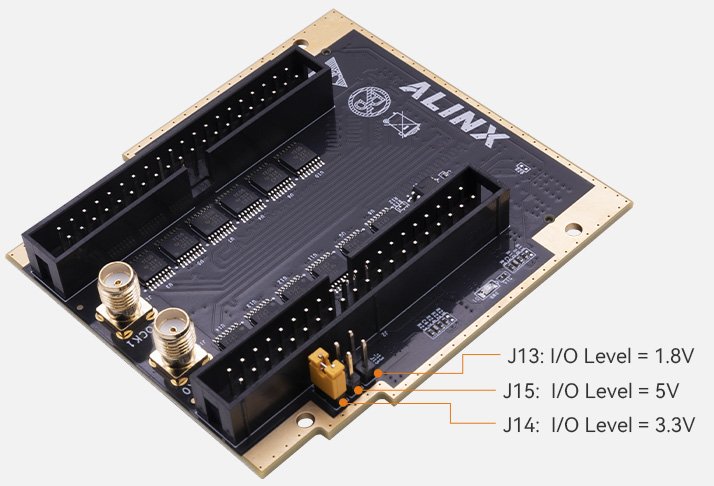

Level adjustment function
Select the IO voltage level standard through the three jumper caps J13, J14, and J15 on the module
Functional Block Diagram
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FL1010-V | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FL1010-V | 90 |
