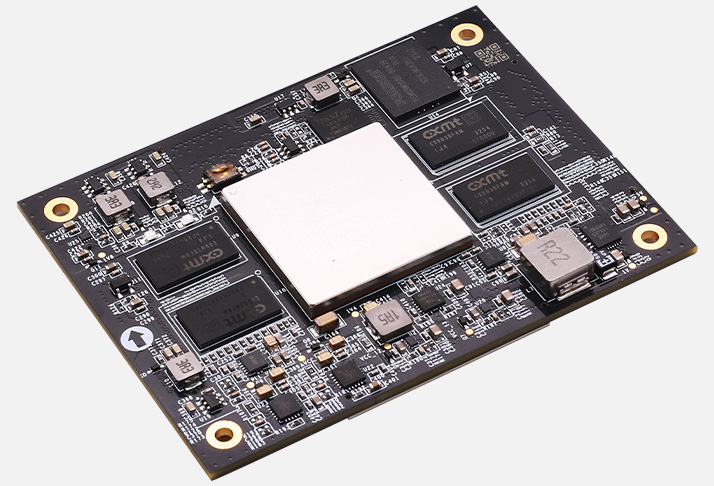

K401 SoM with Pango Kosmo-2 PG2K400
EIC Product Code: K401 V1.0

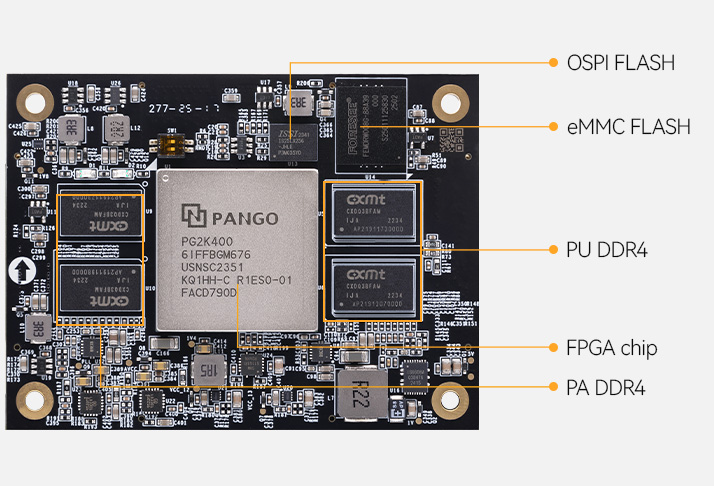

The K401 System-on-Module (SoM) integrates PangoMicro's high-end Kosmo-2 series PG2K400 device with 4GB DDR4 SDRAM , 8GB eMMC Flash, and dual OSPI/QSPI Flash (256Mb + 128Mb). Its 8 pairs of HSSTHP transceivers supporting PCIe Gen3x8 make it ideal for high-speed data processing, video transmission, and industrial control applications.
Product Description
The K401 System-on-Module (SoM) integrates PangoMicro's high-end Kosmo-2 series PG2K400 device with 4GB DDR4 SDRAM , 8GB eMMC Flash, and dual OSPI/QSPI Flash (256Mb + 128Mb). Its 8 pairs of HSSTHP transceivers supporting PCIe Gen3x8 make it ideal for high-speed data processing, video transmission, and industrial control applications.
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor Control
● Industrial Automation
● Industrial IoT (IIoT)
● Precision Instrumentation
● Smart Grid Monitoring
Video & Imaging
● Professional Camera Systems
● Real-time Computer Vision
● Industrial Machine Vision
Medical Imaging
● Endoscopic Video Processing
● Ultrasound/CT/MRI Reconstruction
Key Features
- ● PANGO Kosmo-2 SOPC:

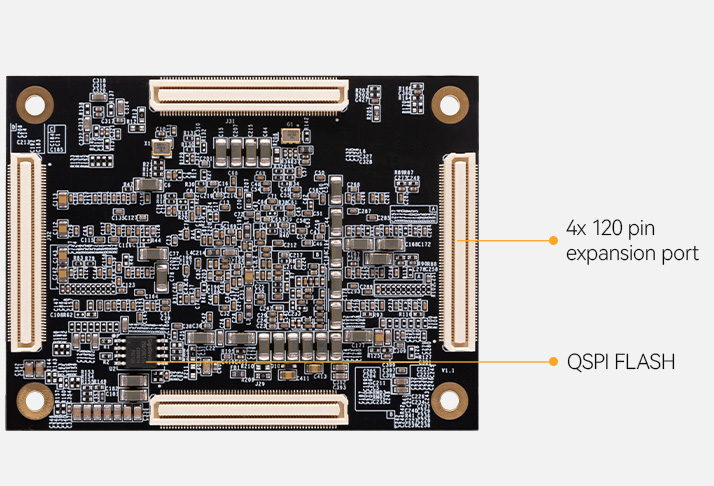

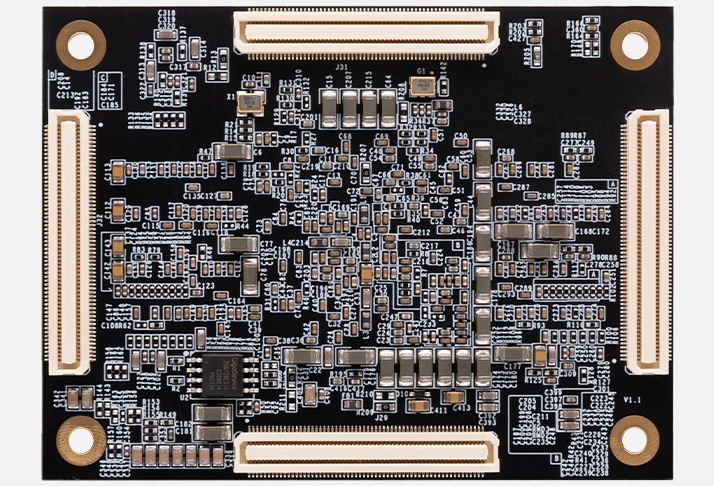

◆ ARM® dual-core Cortex™-A53 up to 1 GHz● Pluggable module with 4 x board-to-board connectors
● 2 GByte (32-bit) DDR4 SDRAM on PA
● 2 GByte (32-bit) DDR4 SDRAM on PU
● 16MB QSPI Flash
● 32MB OSPI Flash
● 8 GB eMMC Flash
● PCIe® Gen3 ×8 - ● Gigabit transceivers
◆ 8x HSSTHP, up to 12.5 Gbps● User I/Os
◆ 37 MIOs
◆ 112 PA I/Os
◆ 96 Adjustable voltage I/O● Work temperature range of -40°C to +85°C
● 5V single supply
● Dimensions: 80 x 60 mm form factor
Module Features

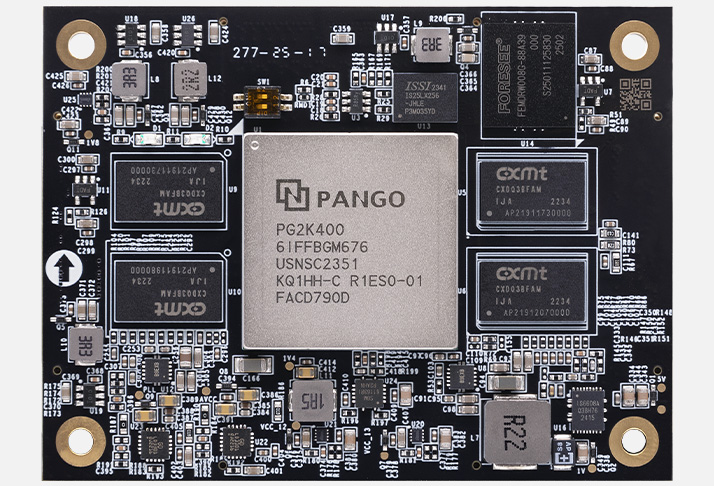

Featuring the PANGOMICRO Kosmo-2 SoPC PG2K400-6IFFBG67
* If you want to design a base board based on this Kosmo-2 SOPC System-on-Module, you need to purchase LB3524-G120S-WOR high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Cooling FAN is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
* We have Kosmo-2 SoPC development boards AXK401 that uses this Kosmo-2 SoPC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX PANGOMICRO Kosmo-2 SoPC PG2K400 System-on-Module/SoM
| Kosmo-2 SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | OSPI Flash | eMMC FLASh | HSST | Temp. Range | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K401 | √ | PG2K400-6IFFBG676 | 4 GB | 16 MB | 32 MB | 8GB | 8 | -40°C~+85°C | 403 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
