Product Description

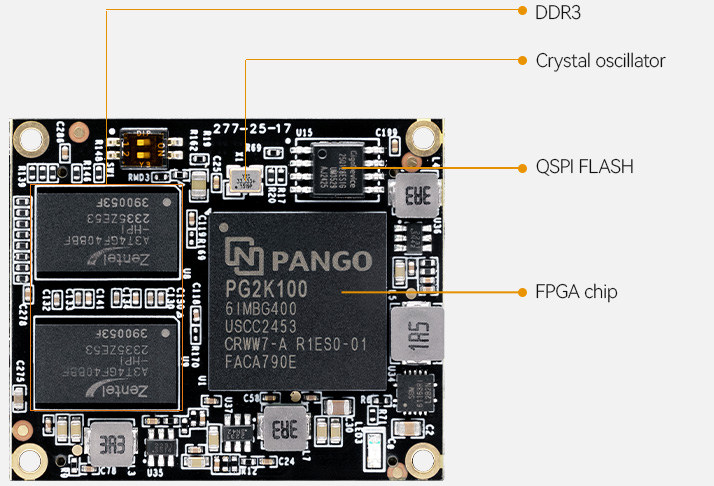

The K100 System-on-Module (SoM) integrates PangoMicro's high-end Kosmo-2 series PG2K100 device (ARM+FPGA SoC) with 1GB DDR3 SDRAM and 128Mb QSPI Flash, targeting embedded vision, video transmission, and industrial control applications.
Applications
Automotive
● Road Sign Recognition
● ADAS
● Smart Transportation
Communication Network
● Ethernet Backhaul
● Small Cell Baseband
● Network Switch
● Flexible radio platform
Industrial
● Motor Control
● Industrial Automation
● Industrial IoT (IIoT)
● Precision Instrumentation
● Smart Grid Monitoring
Video & Imaging
● Professional Camera Systems
● Real-time Computer Vision
● Industrial Machine Vision
Medical Imaging
● Endoscopic Video Processing
● Ultrasound/CT/MRI Reconstruction
Key Features
- ● PANGO Kosmo-2 SOPC:

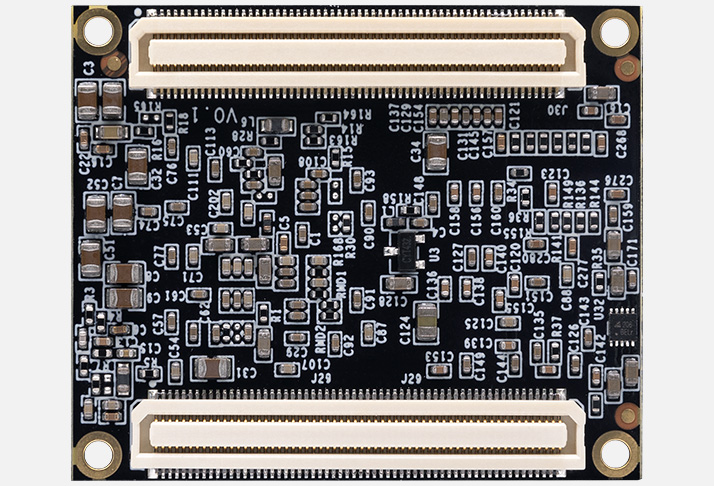

◆ ARM® dual-core Cortex™-A53 up to 1 GHz● Pluggable module with 2 x board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM on PU
● 16MB QSPI Flash - ● User I/Os
◆ 48 MIOs
◆ 94 PA HR I/O
◆ 26 PA HP I/O● Work temperature range of -40°C to +85°C
● 5V single supply
● Dimensions: 35 x 42 x 5.5 mm form factor
Module Features

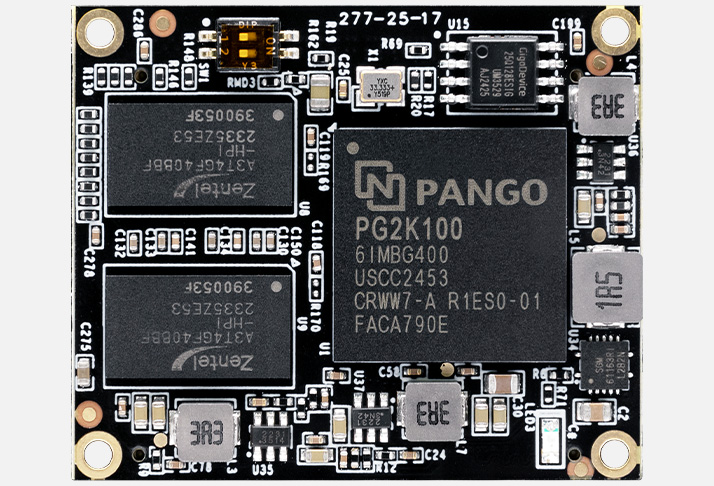

Featuring the PANGOMICRO Kosmo-2 SoPC PG2K100-6IMBG400

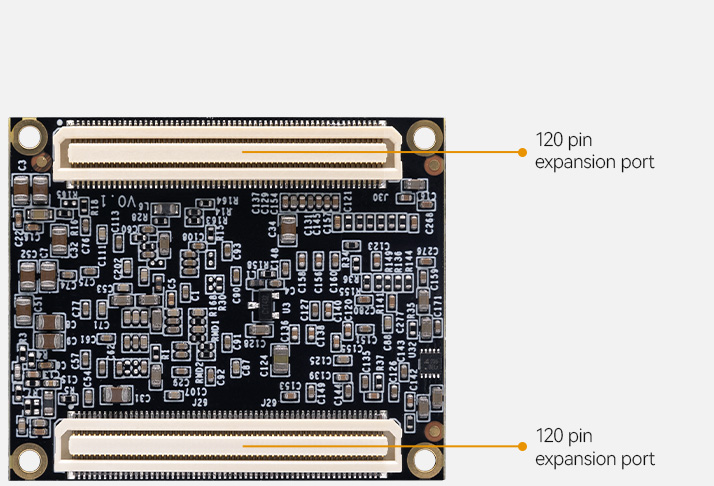

* * If you want to design a base board based on this Kosmo-2 SOPC System-on-Module, you need to purchase LB3524-G120S-WOR high-speed Board to Board Connectors, 120 Pins.
* We have Kosmo-2 SoPC development boards AXK100 that uses this Kosmo-2 SoPC module, to get started with development straight out of the box.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box

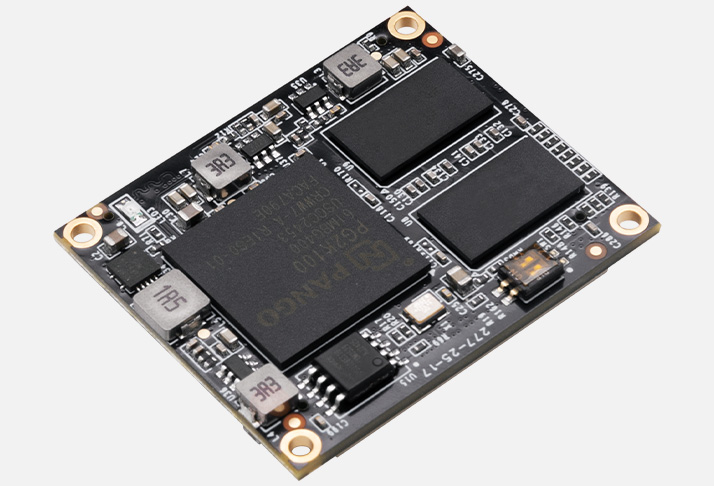

ALINX PANGOMICRO Kosmo-2 SoPC PG2K100 System-on-Module/SoM
| Kosmo-2 SoM | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR3 SDRAM | QSPI Flash | Temp. Range | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K100 | √ | PG2K100-6IMBG400 | 1 GB | 16 MB | -40°C~+85°C | 139 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
