Product Description

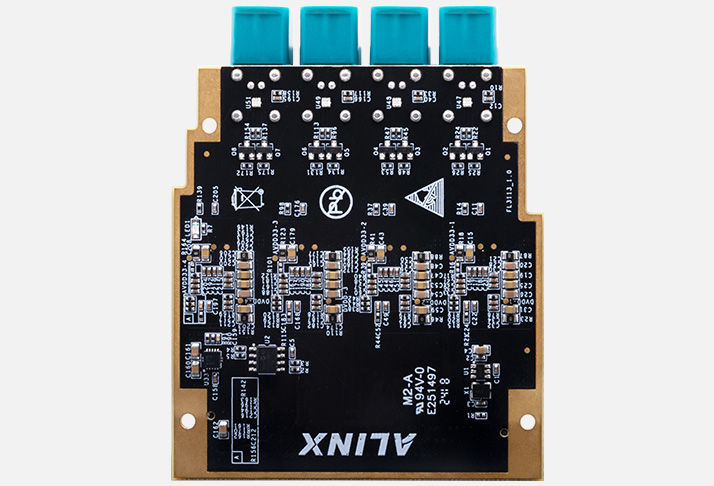

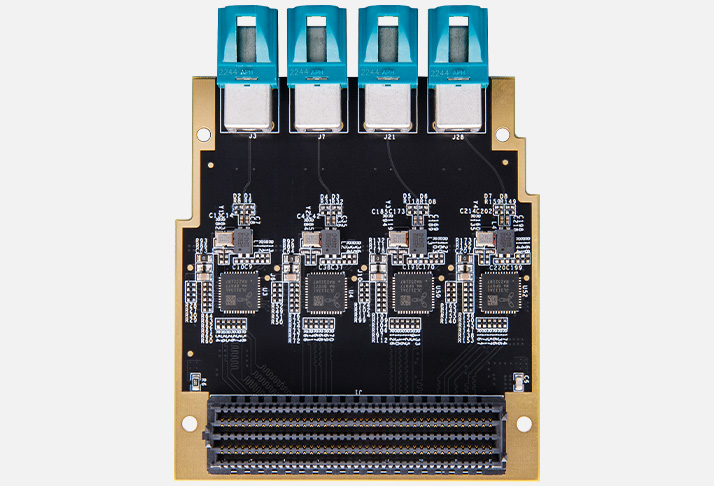

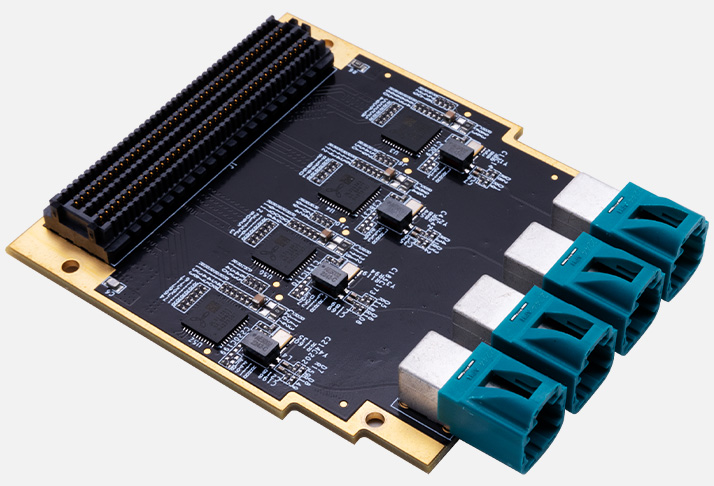

The FL3113 is an FMC module integrating four JL3113A1-NA automotive-grade Ethernet PHY chips, providing robust 100/1000BASE-T1 connectivity for FPGA-based automotive networking applications.
FL3113 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- ● Multi-Channel High-Speed Connectivity◆ 4 independent 1000BASE-T1 Ethernet ports.
◆ Dual-speed support: 100 Mbps and 1000 Mbps via RGMII/RMII interfaces
◆ Automotive-grade PHY chips (JL3113A1-NA) with MDIO management - ● Robust Hardware Design ◆ Industrial temperature range: -40°C to 85°C
FMC connector: ASP_134604_01 (LPC standard)● Dimensions: 76.5 x 69 mm form factor
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|
| FL3113 | √ | 1391 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
