SMALL FORM FACTOR
Dimensions : 13x100mm
Thickness : 3.6mm
RE-PROGRAMMABLE
FPGA based structure offers re-programmable
messaging structure.
SERIAL INTERFACE
5 Mbps serial interface to control RF modules
via various messages scenarios
RELIABILITY
Supervisory circuit provides overvoltage
protection for RF modules

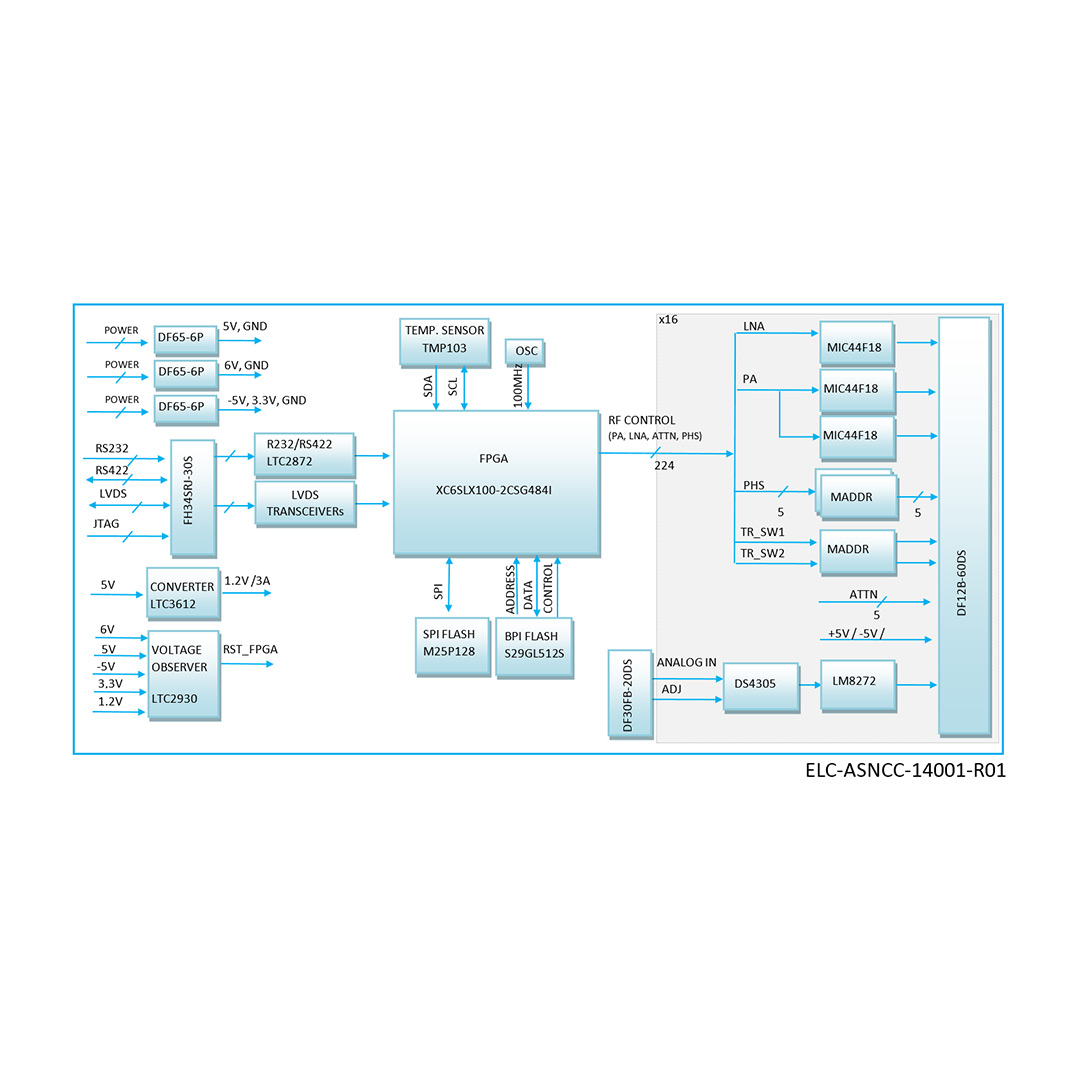

- Xilinx Spartan 6 LX100 FPGA
- 64MB BPI Flash / 32MB SPI Flash
- RS485/RS232 Serial Interface
- Temperature Sensor
- Supervisory Circuit
- 4 LVDS Input / 2 LVDS Output
- JTAG Interface
- 16 Ch. TX/RX Control
- 16 Ch. PA Control
- 16 Ch. LNA Control
- 16 Ch. Reference Voltage Generator
- 16 Ch. Attenuator Controller
- 16 Ch. Phase Shifter Controller

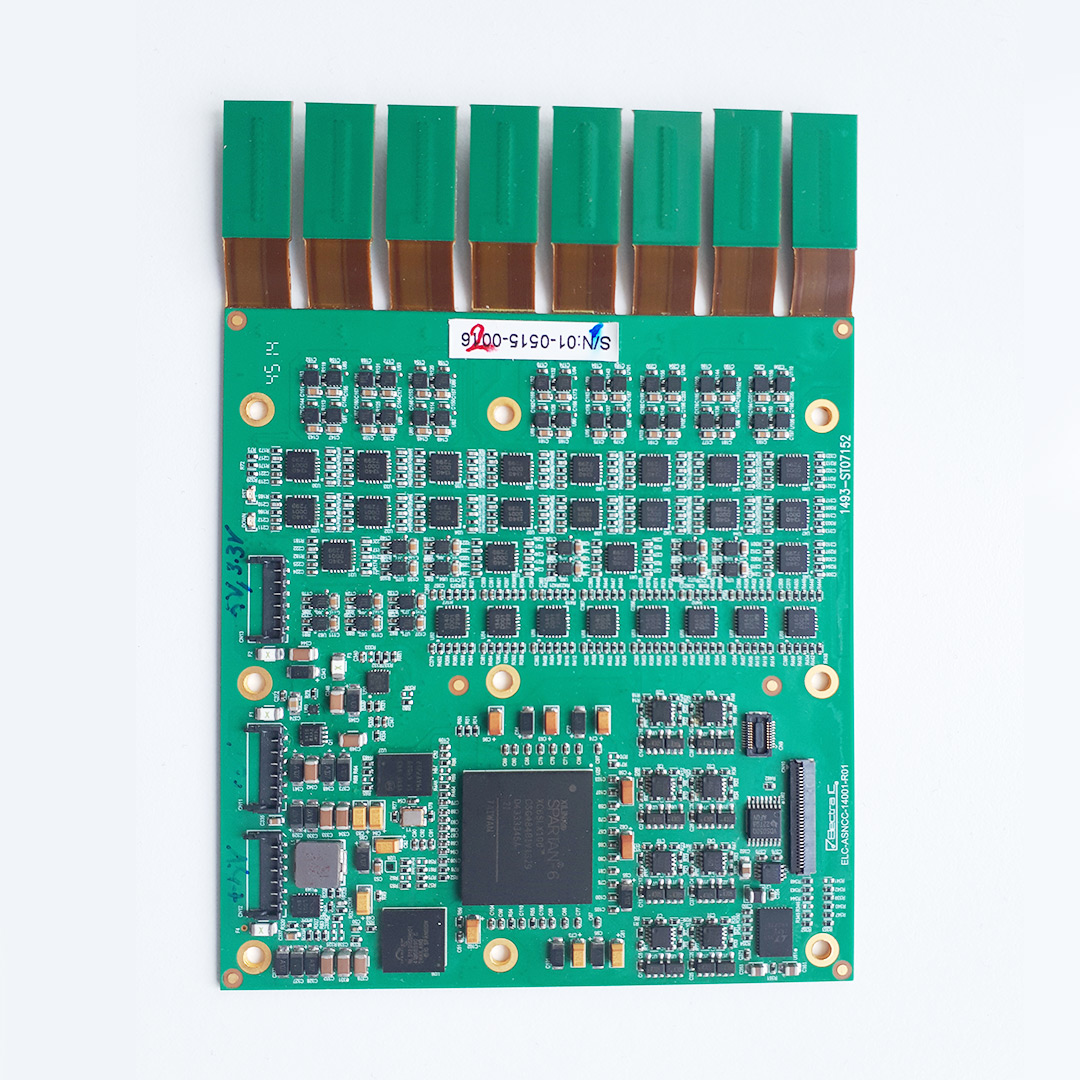

- 12R-8F-10R Flexible PCB Structure
- GUI Based Test Software
