Product Description
The AXKU040 FPGA development board equipped with the AMD/Xilinx Kintex UltraScale™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, SFP+, FMC HPC, FMC LPC, Gigabit Ethernet.
Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, SFP+) and video applications (HDMI).
Applications
● 100G Packet processing for network and data center applications
● Medical imaging
● DSP-intensive processing required for heterogeneous wireless infrastructures
Key Features
- ● AMD/Xilinx Kintex Ultrascale™:
◆ Up to 1.5M system logic units with Gen 2 3D ICs
◆ 8.2 TeraMAC DSP Compute Performance
◆ Enhanced system logic unit packaging reduces dynamic power consumption● 4 GByte (64-bit) DDR4 SDRAM
● 2 x 16 MB QSPI Flash
● 2 x FMC LPC (33 pairs lvds ios) + FMC HPC (57 pairs lvds ios + 8 pairs GTH)
● 4 x SFP+ (per line 12.5Gbps) - ● 1 x HDMI in or out
● 1 x Gigabit Ethernet
● 1 x UART (USB to UART)
● 1 x MicroSD
● 1 x Temperature sensor LM75A
● LED (1 x PWR + 1 x DONE + 4 x LED) + KEY (1 x reset + 2 x KEY)
● 12V single supply
● Dimensions: 165 x 114 mm form factor

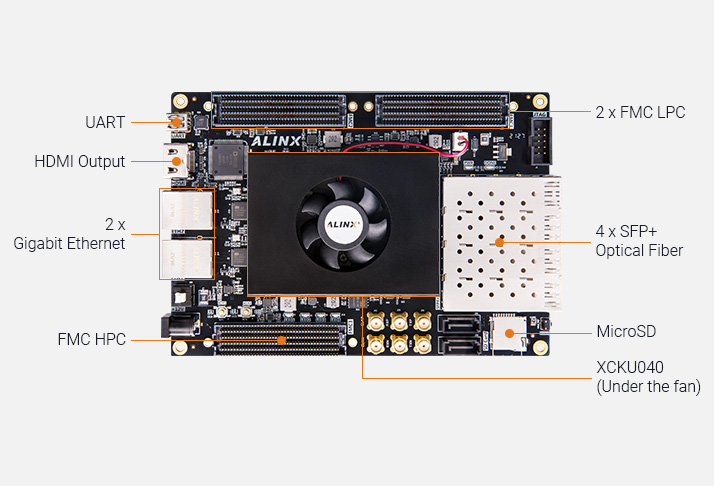

Board Features

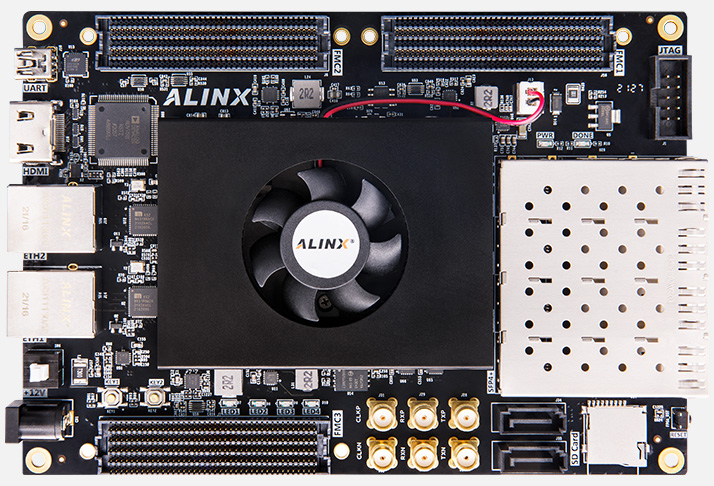

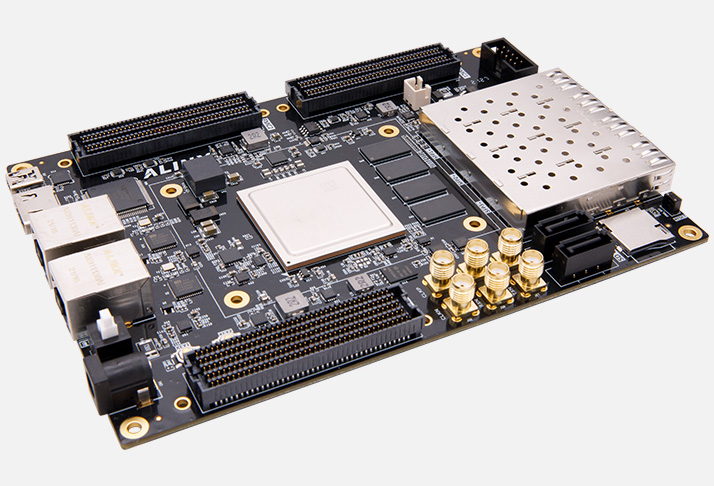

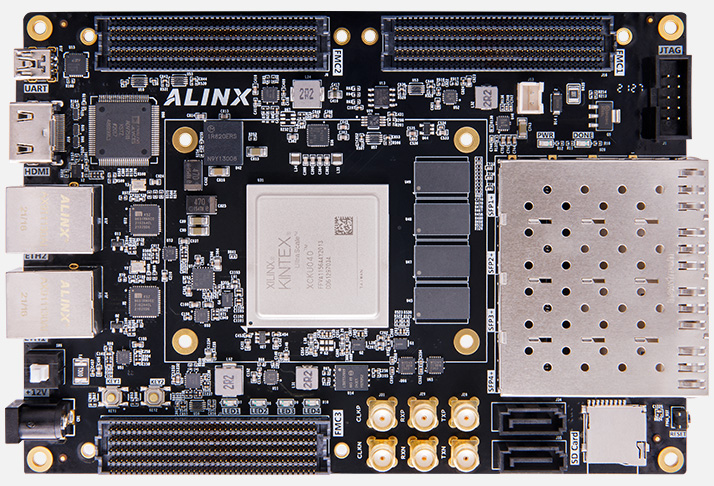

Featuring the AMD/Xilinx Kintex Ultrascale™ XCKU040-2FFVA1156I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale™ based application.
What's Inside the Box
ALINX AMD Xilinx Kintex Ultrascale™ XCKU040 FPGA development board and Some accessories
The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU040 device surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Acrylic board | 1 |
| Heatsink Kit (preinstalled) | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | GTH | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXKU040 | √ | XCKU040-2FFVA1156I | 4 GB | 2 x 32 MB | 20 | 924 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
