RFMC9600

EIC Product Code:

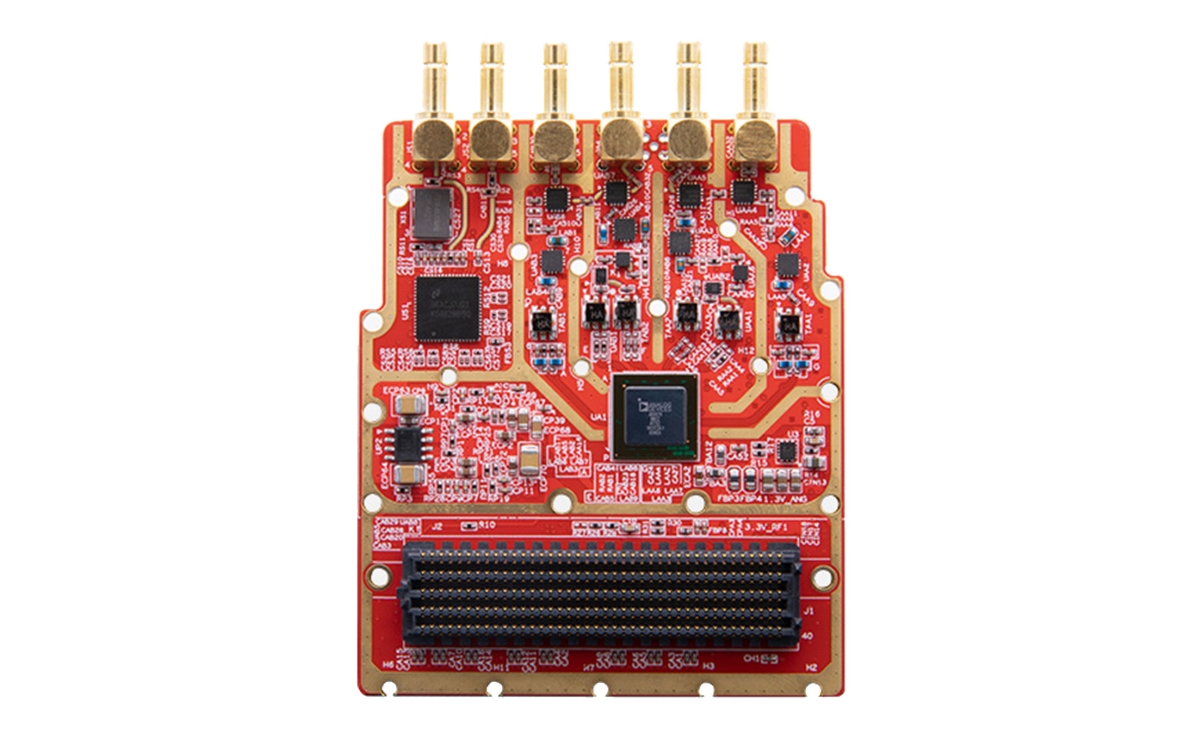

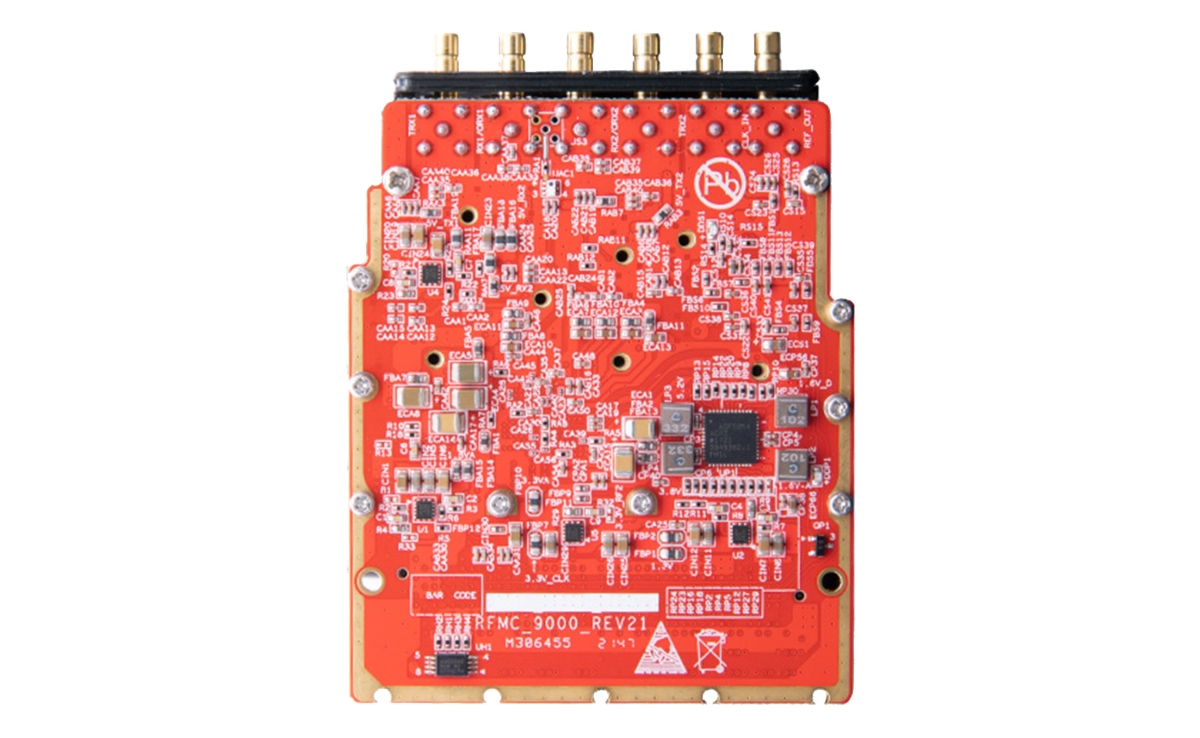

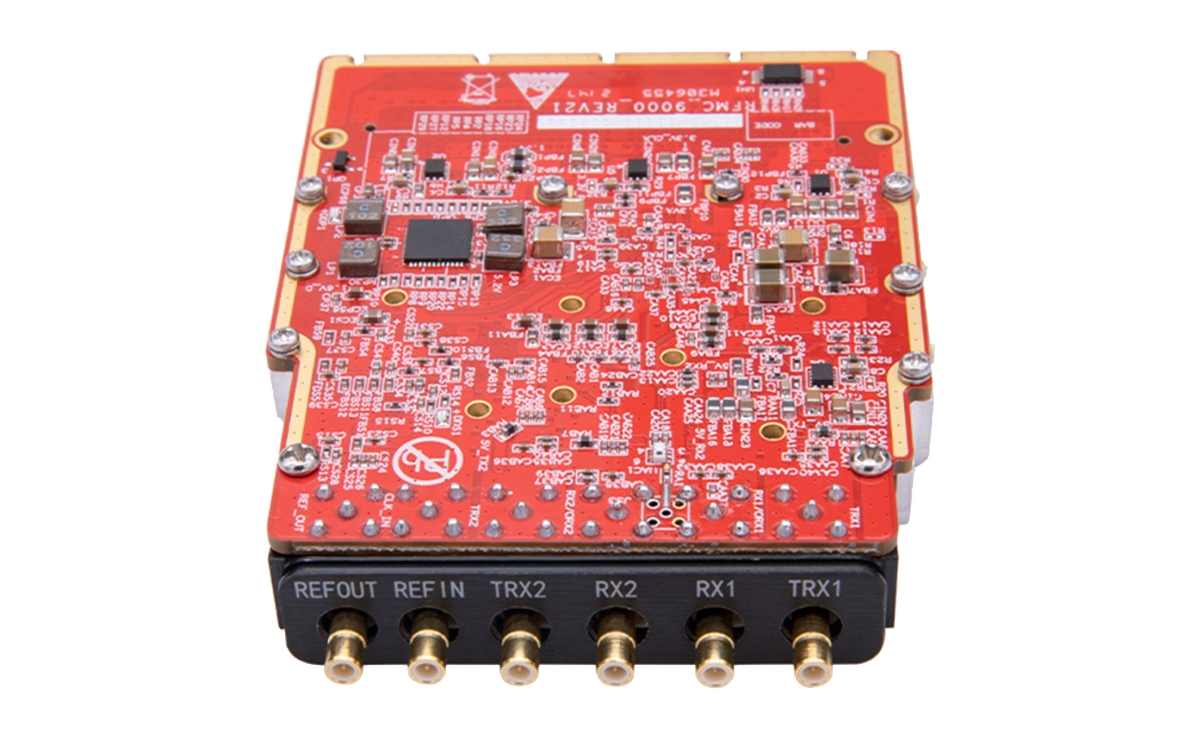

The RFMC9600 is a high-performance, radio frequency FMC card based on the ADRV9025A transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.


Applications
·  3G/4G/5G TDD and FDD
·  Massive multiple input, multiple output (MIMO)
·  Macro and small cell base stations
·  Phased array radar communications
·  Portable test equipment

Main Features
·  ADRV9025A
·  4 Transmitters
·  4 Receivers
·  2 Observers (each with 2 inputs)
·  Observation Rx (ORx) Channels: 2 (each with 2 inputs, for monitoring/calibration)
·  Center Frequency: 75MHz ~ 6GHz
·  Supports TDD and FDD modes
·  RF impedance matching: 50Ω
·  Maximum RX bandwidth: 200MHz
·  Maximum TX bandwidth: 200MHz
·  Maximum TX synthesis bandwidth: 450MHz
·  Maximum ORX observation channel bandwidth: 450MHz
·  Supports internal or external reference clock
·  Supports external local oscillator (LO1, LO2) input
·  JESD204B/JESD204C digital interface
·  Voltage: 3.3V& 12V
·  Duplexing Model: TDD&FDD
·  Power Consumptions: <9W

Transmitter Performance - Tx
·  75MHz ~ 6GHz Frequency
·  SSMC Interface
·  Output Power: 5 dBm (@1.5GHz, CW)
·  EVM: 0.56% (Typical for 5G NR @100MHz bandwidth)
·  Gain Control Range: 32 dB
·  Gain Step: 0.05 dB
·  ACLR: <-64dB
·  LO Suppression: -69dBm@2.5GHz
·  Max DAC Sample Rate: 491.52 MS/s

Transmitter Performance - Tx
·  75MHz ~ 6GHz Frequency
·  SSMC Interface
·  Sensitivity: -90 dBm (@20MHz bandwidth)
·  Noise Figure: < 11.9 dB (@2.6GHz)
·  EVM: < 2%
·  Gain Control Range: 30 dB
·  Rx Alias Band Rejection: 80dB (Due to digital filters)
·  Noise Figure: 11.9dB@2.6GHz
·  ADC Wideband SFDR: 60dBc
·  Max ADC Sample Rate: 245.76 MS/s
