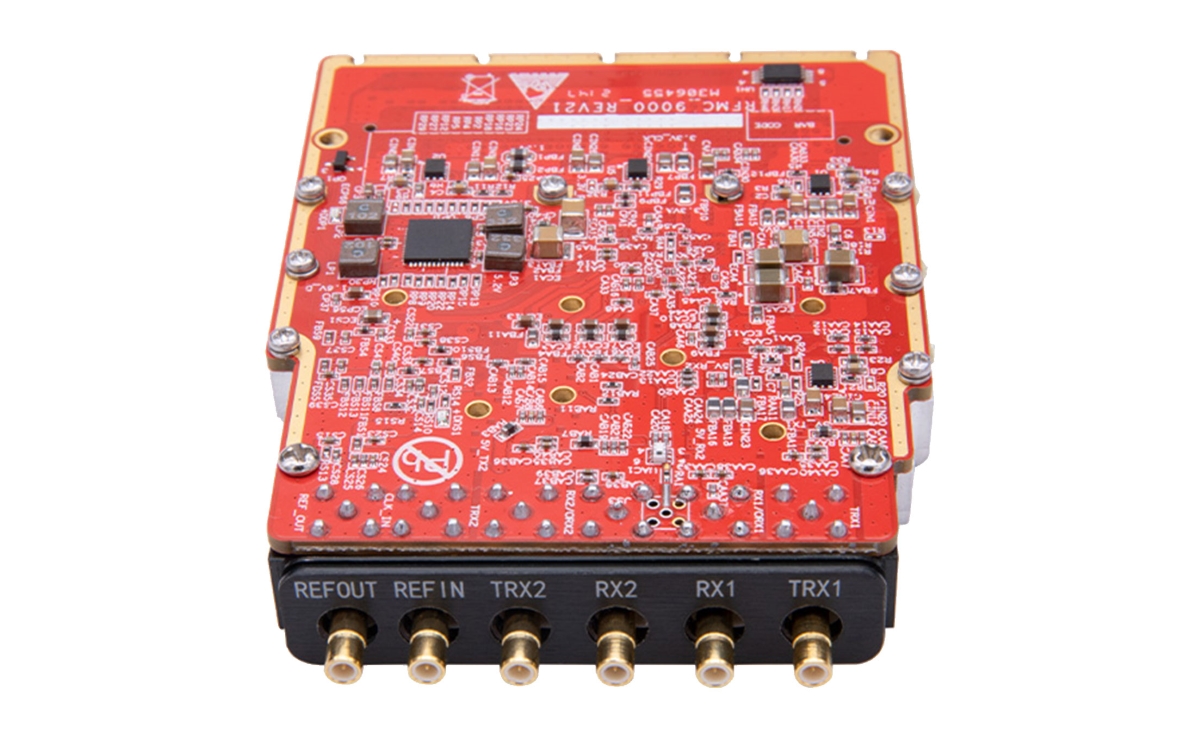

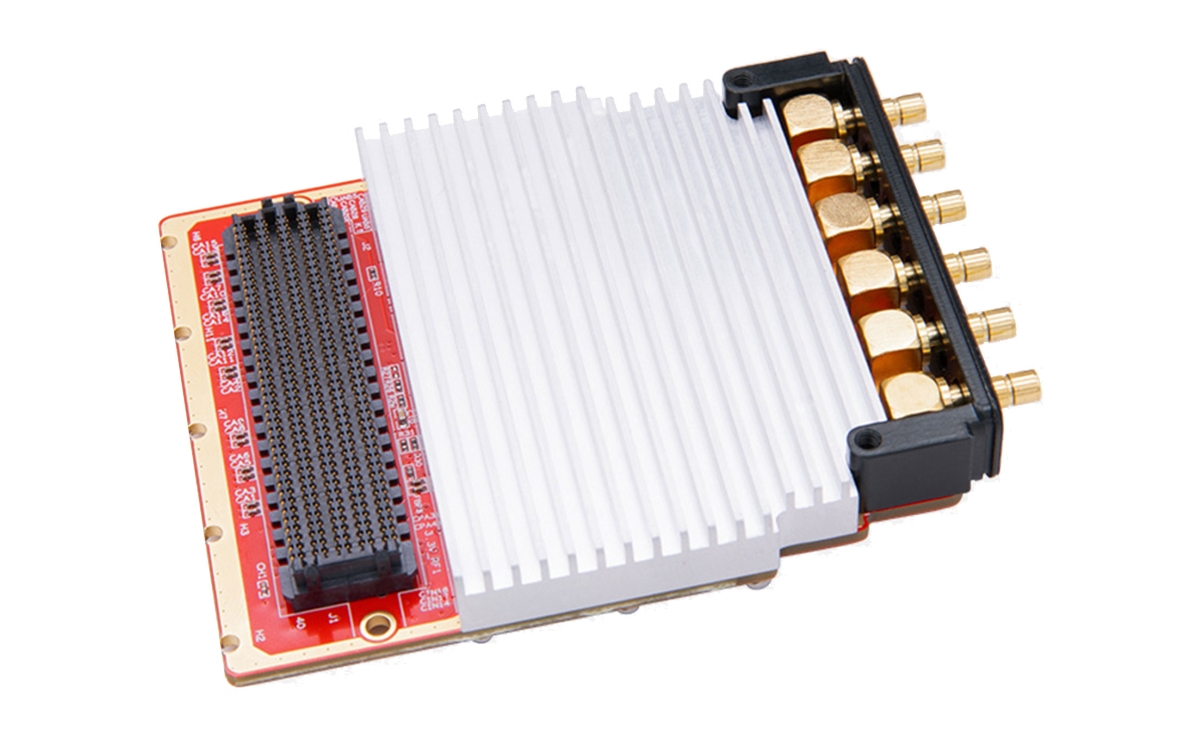

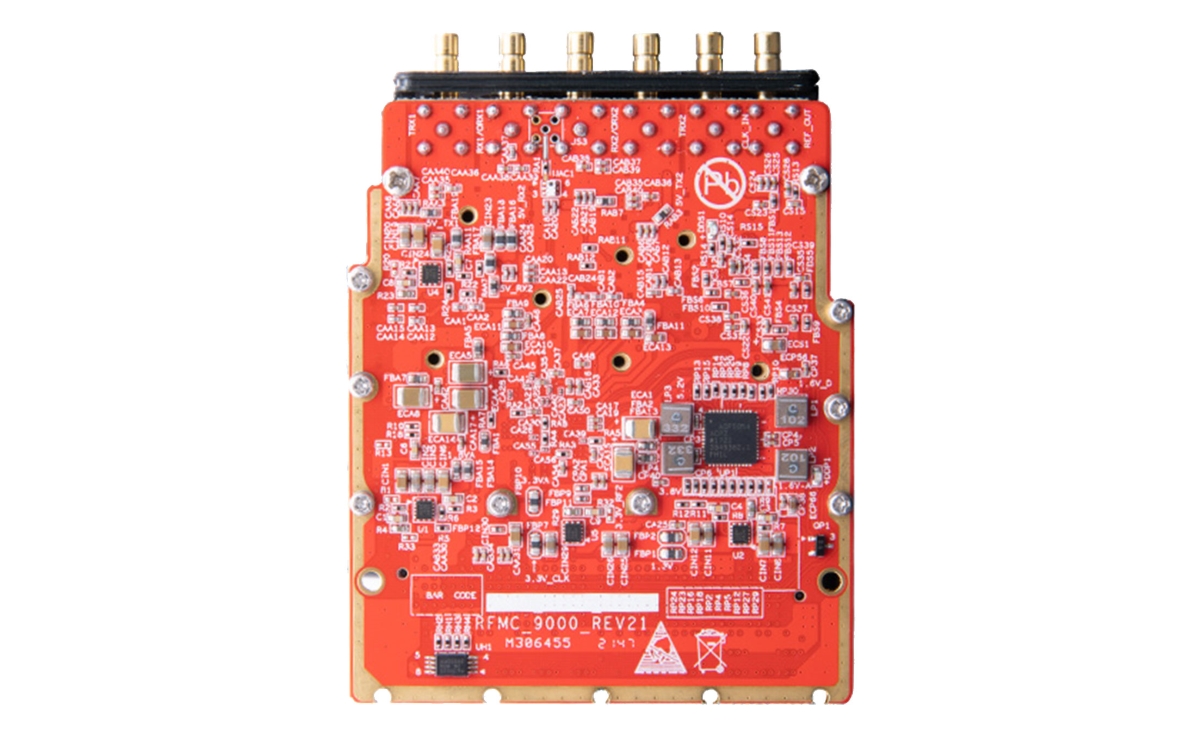

RFMC9000
EIC Product Code:
RFMC9000 is a high-performance, broadband, and highly integrated RF sub card based on the VITA57.1FMC architecture. The board is based on the agile transceiver ADRV9009 as the processing core, suitable for application in general software wireless Electric platform.
RFMC9000 has a standard FMC HPC interface that can be connected to the V3 FPGA carrier board for use.
Applications
· 3G,4G and 5G macrocell base stations
· Microwave, nonline of sight (NLOS) backhaul systemsElectronic warfare
· TDD active antenna systems
· Massive MIMO
· Phased array radar
· Military communications
· Portable test equipment
Key Features
· Chip Model: AD9009
· Overlay Band: 75MHz~6GHz
· 16bit ADC & 14bitDAC
· Supports TDD mode
· RF impedance matching 50 Ω
· Maximum RX bandwidth: 200MHz
· Maximum ORX observation channel bandwidth: 450MHz
· Maximum TX synthetic bandwidth: 450MHz
· Integrated power amplifier(14dB@2GHz), supporting a maximum transmission power of 10dBm output
· Supports internal or external reference clocks
· JESD204B Digital Interface
· FMC HPC connector
· Dimensions: 76.5 x 69 mm form factor
