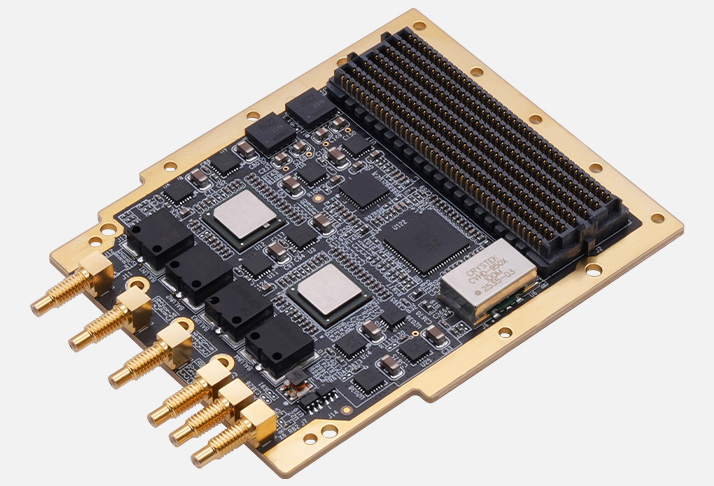

FP3200 4-channel 3.2GSPS sampling rate 12 bit AD acquisition FMC+ card module
Brand: Alinx
EIC Product Code: FP3200 V1.0
FP3200 is a 4-channel, 3.2GSPS, 12-bit AD acquisition FMC+ card with dual ADC12DJ3200 and JESD204B, ideal for radar and high-speed signal processing.
Product Description
FP3200 is a 4-channel, 3.2GSPS, 12-bit AD acquisition FMC+ daughter card based on the VITA57.4 / FMC+ standard. It integrates two ADC12DJ3200 devices and supports the JESD204B high-speed serial interface, making it suitable for radar signal processing, electronic countermeasures, high-speed testing, and real-time signal processing.
FP3200 uses a standard FMC+ interface and can be connected to ALINX FPGA carrier boards.
Key Features
- ● 4-channel, 12-bit ADC with 800MSPS ~ 3.2GSPS sampling rate; 6.4GSPS in interleaved mode
● Chip Model: ADC12DJ3200 × 2
● JESD204B interface, 16 lanes total, up to 12.8Gbps/lane
● 50Ω SSMC analog inputs with AC transformer / balun coupling
● Analog input bandwidth: -3dB at 8.0GHz, usable input frequency >10GHz
● Clock management: HMC7044; sampling clock PLL/VCO: LMX2592 - ● Trigger input/output: single-ended 3.3V LVCMOS
● VITA57.4 / FMC+ standard
● +12V @ 1.5A power supply
● Working temperature: -40 ℃ ~ 80 ℃
● Dimensions: 84.1 × 69mm

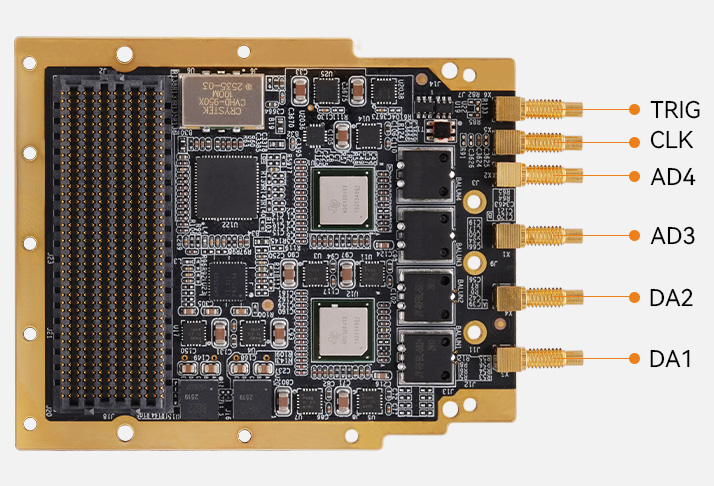

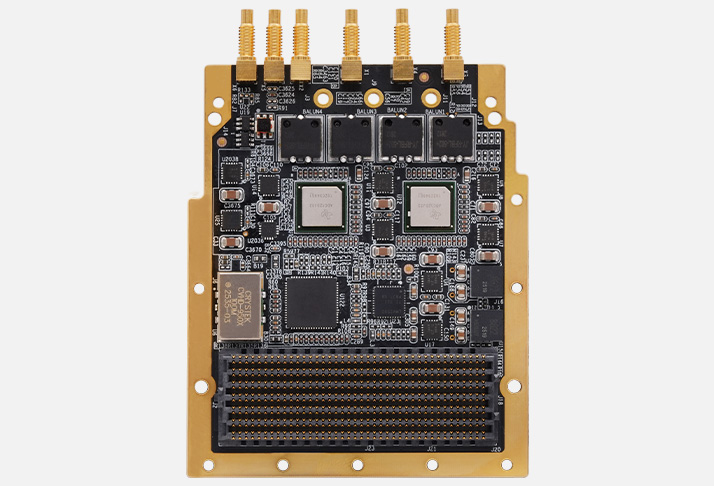

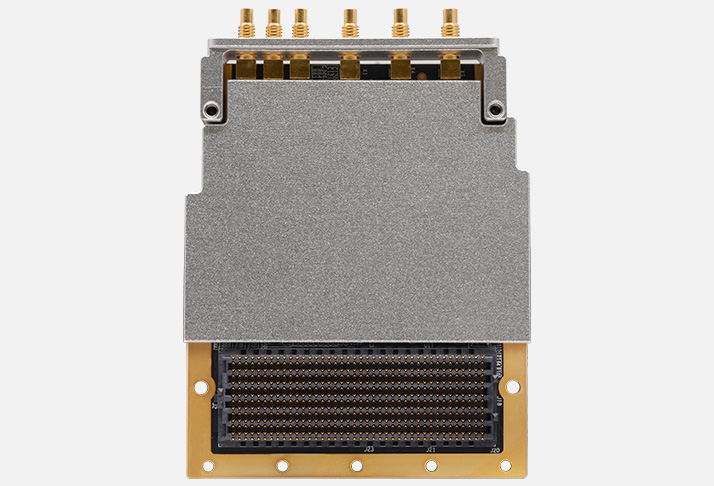

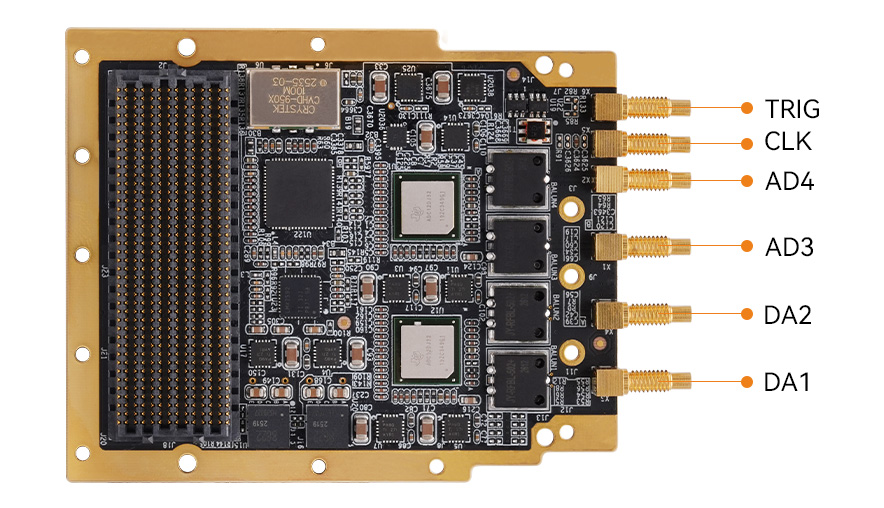

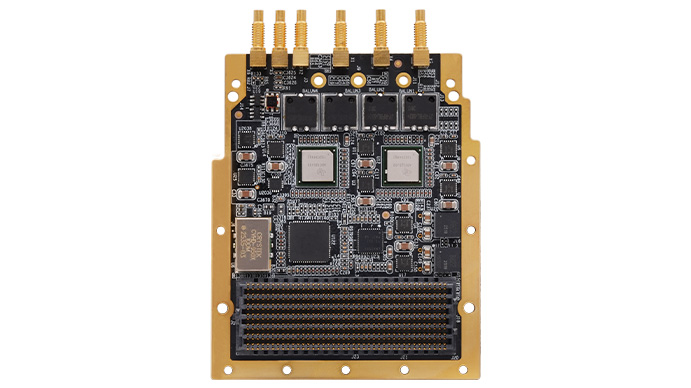

Module Features

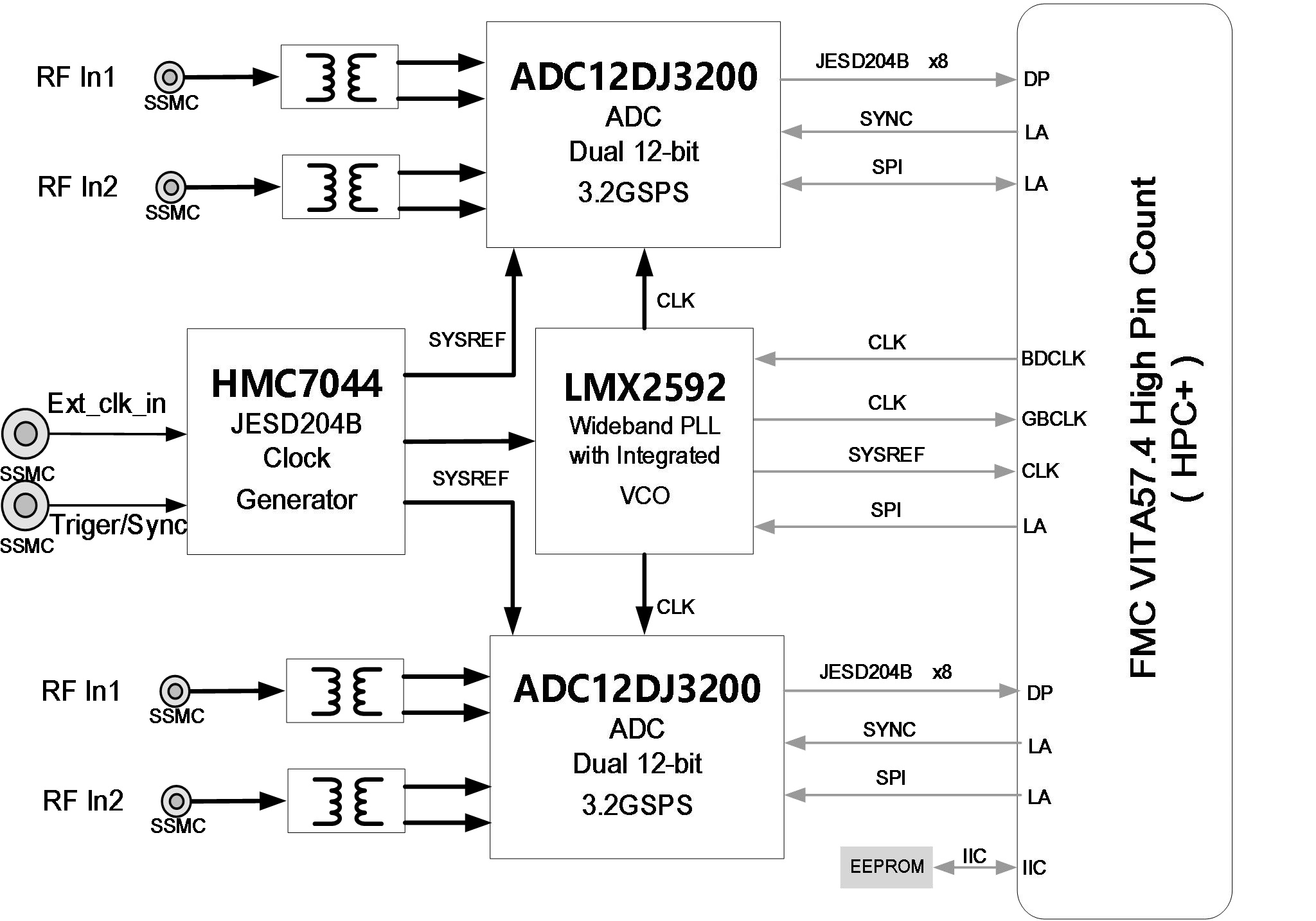

Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | AD chip | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FP3200 | ADC12DJ3200 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
