FL7606 16-channel 1MSPS sampling rate 16 bit AD acquisition FMC LPC card module
Brand: Alinx
EIC Product Code: FL7606 V1.0
FL7606 is a 16-channel, 1MSPS, 16-bit AD FMC LPC daughter card with two AD7606C-16 ADCs for 8-channel simultaneous sampling. It supports parallel/SPI interfaces and suits industrial control, power monitoring, test and measurement, and energy storage.
Product Description
FL7606 is a 16-channel, 1MSPS, 16-bit AD acquisition FMC daughter card based on the FMC LPC standard. It integrates two ADI AD7606C-16 devices, each supporting 8-channel simultaneous sampling. It supports parallel or SPI serial interfaces, making it suitable for industrial control, power monitoring, test and measurement, new energy, and energy storage applications.
FL7606 uses a standard FMC LPC interface and can be connected to ALINX FPGA carrier boards.
Key Features
- ● 16-channel, 16-bit ADC with 1MSPS sampling rate
● Chip Model: AD7606C-16 x 2
● Parallel interface / SPI serial interface
● Analog input range: ±5V / ±10V (jumper selectable, default ±5V), software configurable for other ranges

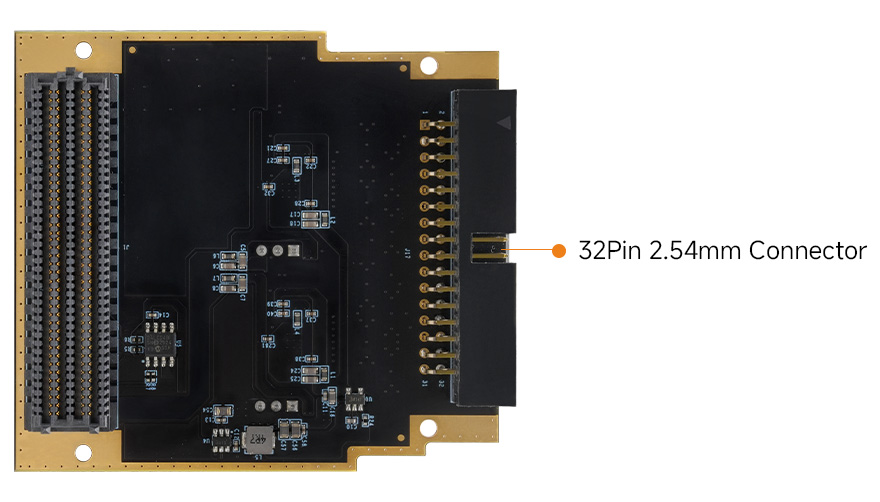

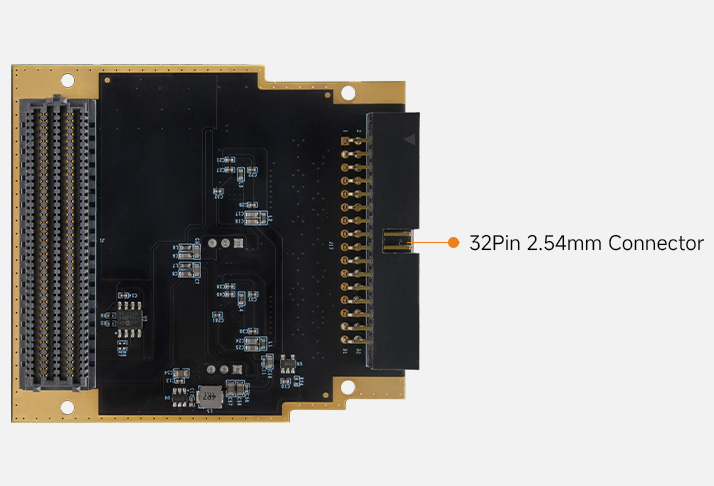

● 32PIN 2.54mm header
● DC coupling - ● FMC LPC (VITA 57.1) standard
● Working temperature: -40 ℃ ~ 85 ℃
● Dimensions: 69 x 76.5mm
Module Features

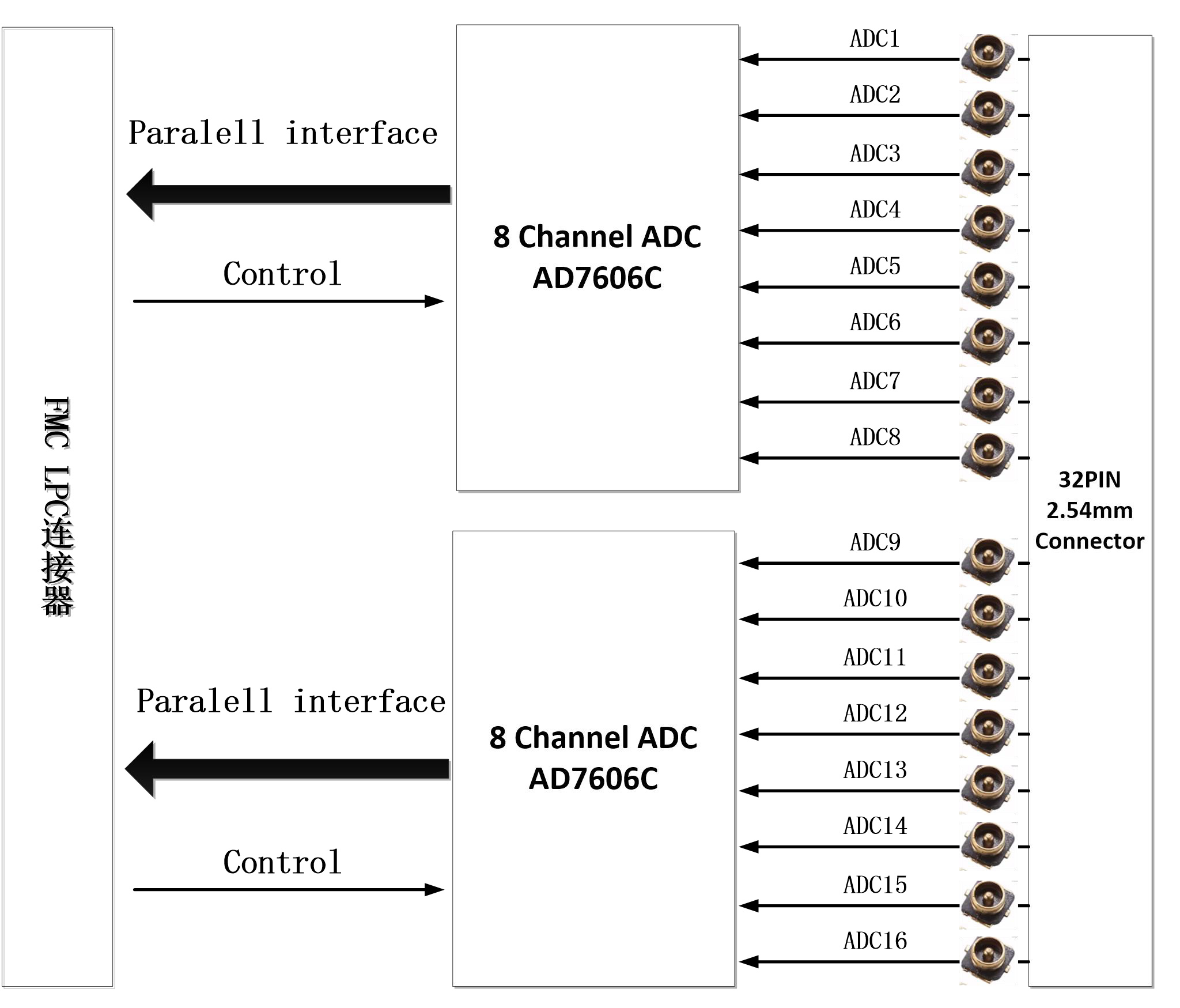

Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | Preferred Model | AD chip | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FL7606 | AD7606C-16 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
