SHA3 IP Core
EIC Product Code: EIP-13009
SHA3 IP Cores perform cryptographic hashing in compliance with the SHA-3 (Secure Hash Algorithm 3) specifications defined in 'FIPS 202'. This standard specifies methods for generating secure hash values using the SHA-3 algorithm.

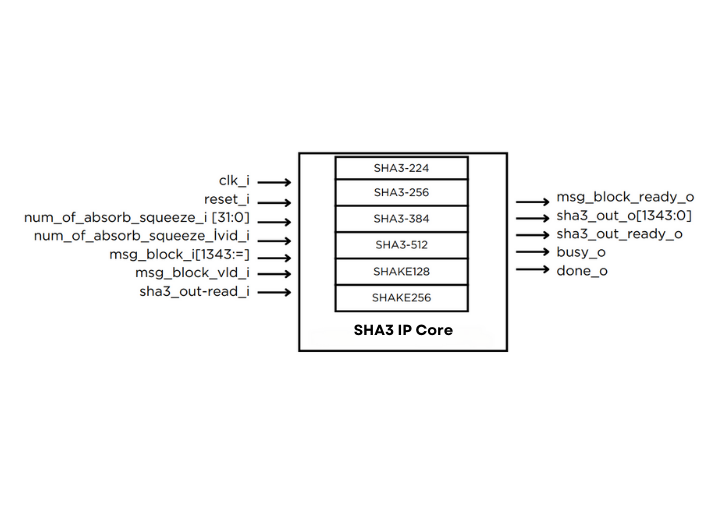

SHA3 IP Cores support the SHA3-224, SHA3-256, SHA3-384, SHA3-512, SHAKE128, and SHAKE256 functions, and are byte-oriented in their implementation. VHDL is used as the Hardware Description Language of the IP Core. AXI4-Stream interface can be designed and provided upon request.
Availability: in stock
FEATURE LIST
- supports hashing for functions listed below:
- SHA3-224
- SHA3-256
- SHA3-384
- SHA3-512
- SHAKE128
- SHAKE256
- is compliant with FIPS 202.
- has fully stallable input and output interfaces.
DELIVERABLES
- Encrypted Netlist
- Synthesis Scripts
- Comprehensive Documentation
- SHA3 Validation SystemTestbenches in SystemVerilog
LICENSING
A one-time license fee is paid with the initial IP purchase.
- Single project license
- Multi project license
MAINTENANCE & SUPPORT
- M&S fee of 15% is mandatory for the first year.
- Telephone and email support is included under M&S contract.
- IP Core updates are included in M&S.
ORDERING
Purchase order shall include the product number EIP-13009.
