RSA Keygen IP Core
EIC Product Code: EIP-12009
RSA Keygen IP Cores perform key generation in compliance with the RSA Key Pair Generation specifications defined in 'FIPS 186'. This standard specifies methods for generating RSA key pairs. RSA Keygen IP Cores support key pair generation up to 4096 bits.

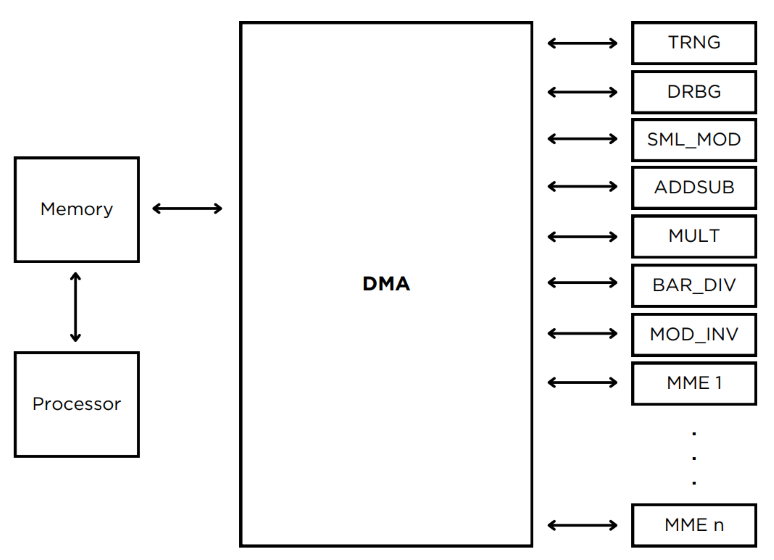

RSA Keygen IP cores consist of a cluster of IPs. VHDL is used as the Hardware Description Language of the IP Cores. The cluster includes TRNG, DRBG, SML_MOD (Small Mods), ADDSUB (Addition and substruction), MULT (Multiplication), BAR_DIV (Barrett Divider), MOD_INV (Modulo Inversion) and MME (Montgomery Modulo Exponentiation) IP Cores. MME cores are configurable and their number can be changed. The maximum supported number of MMEs is 4.
FEATURE LIST
RSA Keygen IP Core;
- supports key pair generation up to 4096 bits.
- is compliant with FIPS 186.
- is tested on Z-7015 Z-7020 Z-7045.
- has fully stallable input and output interfaces.
DELIVERABLES
- Encrypted Netlist
- Synthesis Scripts
- Comprehensive Documentation
LICENSING
A one-time license fee is paid with the initial IP purchase.
- Single project license
- Multi project license
MAINTENANCE & SUPPORT
- M&S fee of 15% is mandatory for the first year.
- Telephone and email support is included under M&S contract.
- IP Core updates are included in M&S.
ORDERING
Purchase order shall include the product number EIP-12009.
