Product Description

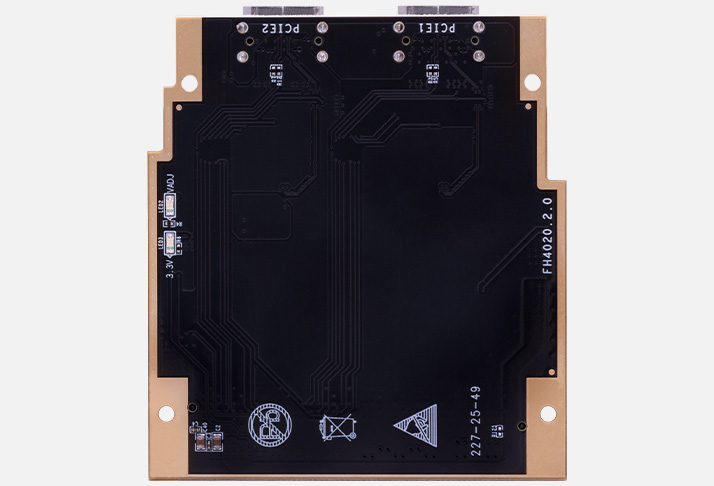

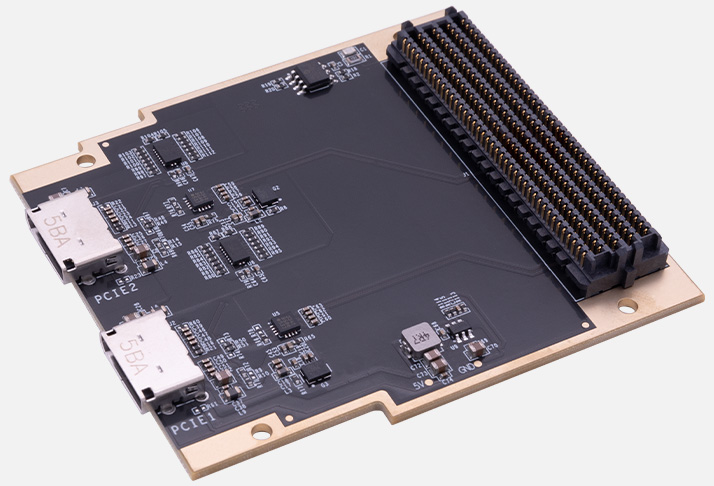

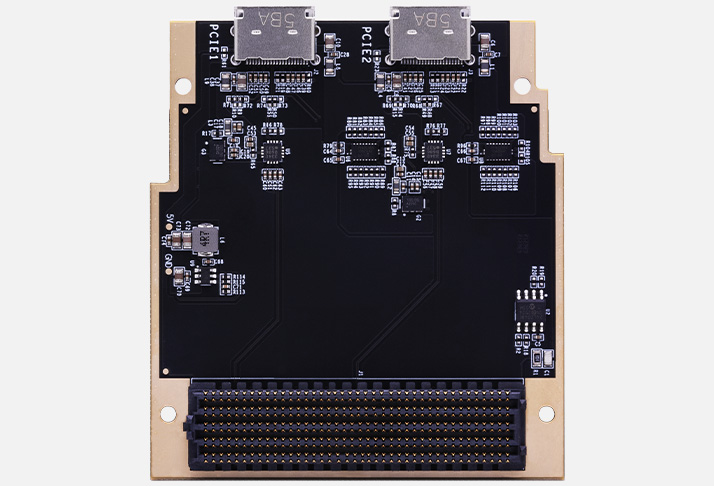

FH4020 is a high-performance OcuLink PCIe communication daughter card, specifically designed for FPGA development platforms, providing stable and high-speed data communication solutions. The product offers two standard SFF-8612 OcuLink interfaces, supports PCIe 3.0 protocol, and can connect to FPGA development boards via standard FMC HPC interfaces.
FH4020 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.
Applications
● Data Acquisition Systems
● Communication Test Equipment
● Image Processing Systems
● Prototype Verification Platforms
Key Features
- ● 2x SFF-8612 OcuLink Interfaces
● PCIe 3.0 Communication Protocol
● FMC HPC Interface
● 8 Gbps Single Lane Rate - ● 32 Gbps Single Path Total Bandwidth
● 100MHz Differential Crystal Oscillator
● Supports Endpoint and Root mode switching
● Dimensions: 76.5 x 69mm form factor
Functional Block Diagram
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FH4020 | 389 |
