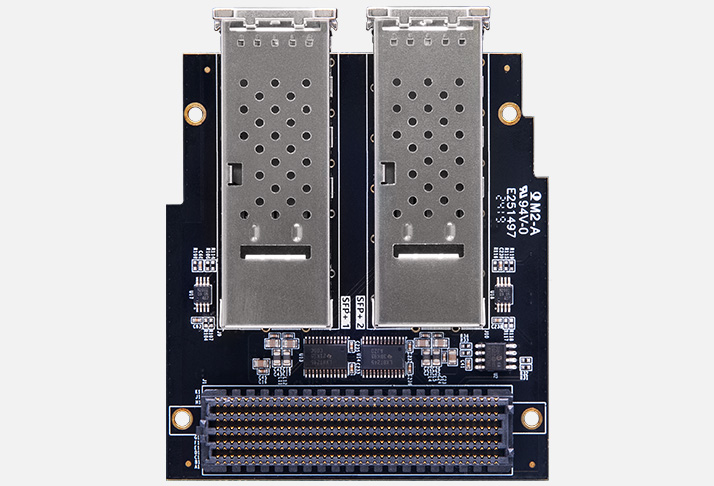

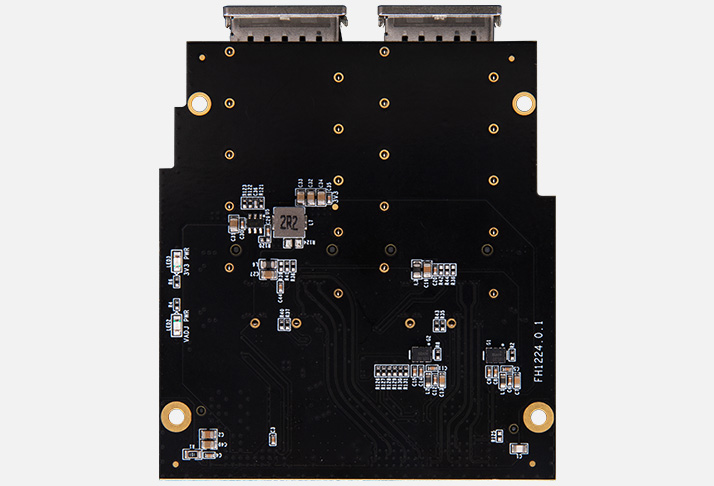

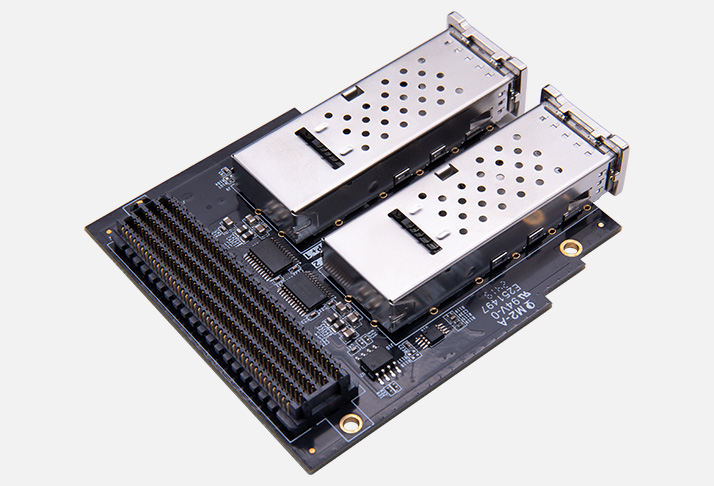

FH1224 2x 40G QSFP+ fiber optic interface fiber optic transceiver FMC card
EIC Product Code: FH1224
FH1224 is a 2-channel 40G QSFP+fiber optic module, with each fiber optic transceiver integrating 4 transmission channels and 4 reception channels. This 4-channel pluggable interface has a transmission rate of up to 40Gbps
Product Description
FH1224 is a 2-channel 40G QSFP+ fiber optic module, with each fiber optic transceiver integrating 4 transmission channels and 4 reception channels. This 4-channel pluggable interface has a transmission rate of up to 40Gbps
FH1224 has a standard FMC HPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- ● FMC HPC connector
● 2x 40G fiber optic interface - ● Dimensions: 76.5x 69 mm form factor
Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FH1224 | 172 |
