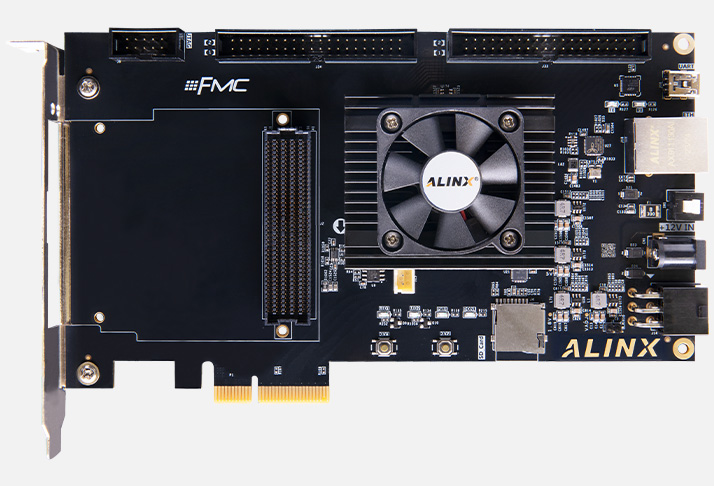

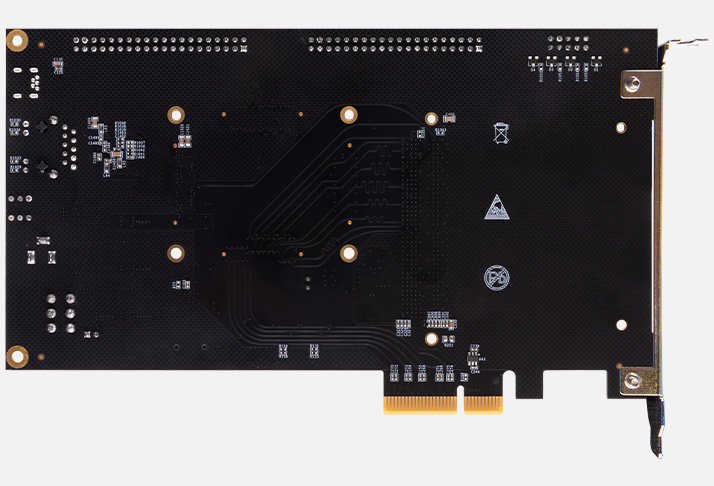

AXAU25 FPGA Dev Board & Kit with AMD Artix™ US+ XCAU25P
EIC Product Code: AXAU25
The AXAU25 FPGA Development Board, based on the AMD/Xilinx Artix UltraScale+™ platform, delivers high performance with integrated DDR4, QSPI Flash, and comprehensive interfaces including PCIe Gen4 and FMC-HPC. Ideal for data acquisition, embedded vision, and communication systems.
Product Description
The AXAU25 is a high-performance FPGA development platform built around the AMD/Xilinx Artix UltraScale+™ series. It delivers exceptional processing capabilities, supported by high-speed DDR4 SDRAM and QSPI Flash. The board is equipped with a comprehensive set of interfaces, including PCIe®, FMC-HPC, and Gigabit Ethernet, making it an ideal solution for demanding applications in high-speed data acquisition, communications, and embedded vision.
Applications
Industrial
● Machine Vision
● Industrial Networking
● Industrial Controllers
Medical
● Portable and Desktop Ultrasound
● Surgical Vision
● Endoscopy
Networking
● Nx10 G and 25 G Networking
● Nx100 G Systems
AV Broadcasting
● LED Video Walls
● Digital Signage
● KVM Switch
● 4K Video Converters
Aerospace & Defense
● MILCOM Radio
● Missiles & Munitions
Key Features
System-on-Module
● AMD/Xilinx Artix Ultrascale+™:
◆ 16nm FinFET+ programmable logic fabric
◆ Advanced FPGA DSP architecture, optimized for fixed-point and floating-point calculations
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (16-bit) DDR4 SDRAM
● 32 MB QSPI FlashBase Board
● 1 x FMC HPC (37 pairs lvds ios + 8 pairs GTY)
● 1 x PCIe® Gen3 ×4
● 1 x Gigabit Ethernet
● 1 x UART(USB to UART)
● 2 x 40-pin Expansion Port (with 34 IOs, connected to ALINX modules)
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● LED (1 x PWR + 1 x DONE + 1 x RXD + 1 x TXD + 2 x LED)
● KEY (2 x KEY)
● 12V single supply
● Dimensions: 188 x 106 mm form factor
Board Features

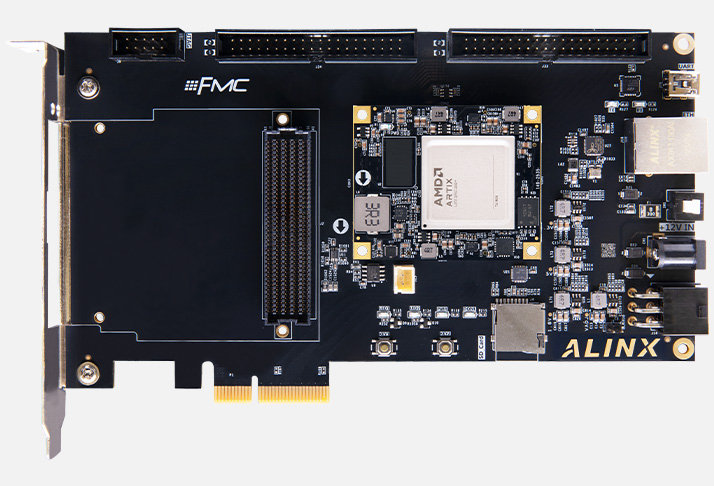

Featuring the AMD/Xilinx Artix Ultrascale+™ XCAU25P-2FFVB676I
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Artix Ultrascale+™ based application.

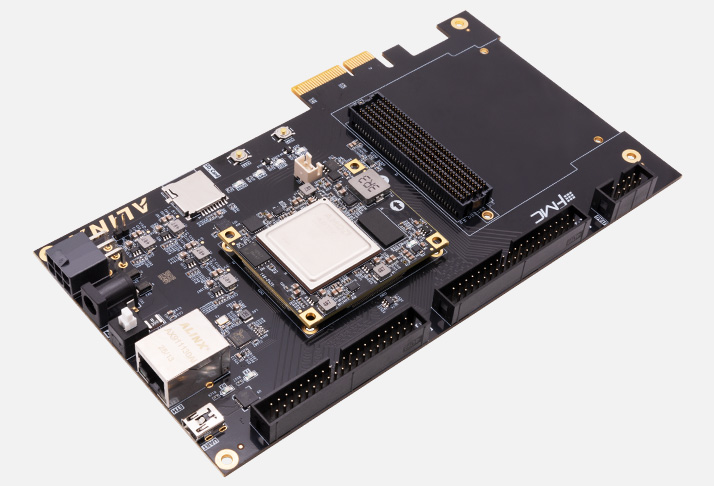

* The AXAU25 development board consists of a ACAU25 SoM and base board. If you want to purchase ACAU25 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
What's Inside the Box
ALINX AMD Xilinx Artix Ultrascale+™ XCAU25P FPGA development board and Some accessories

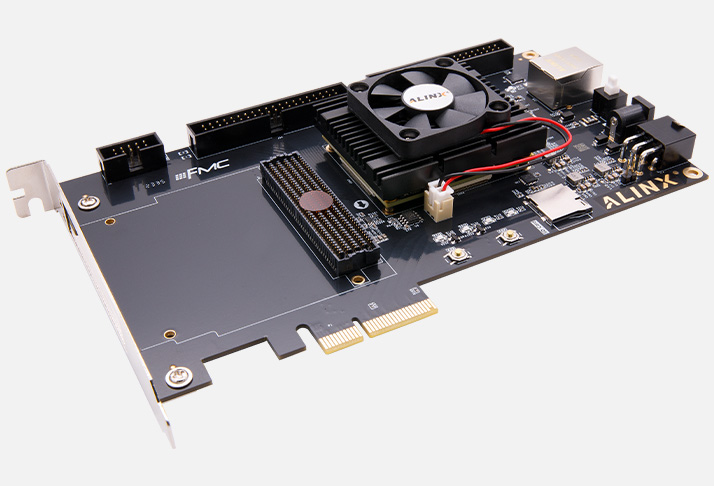

The FAN6050 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCAU25P device surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | PCle Fence | 1 |
| Heatsink Kit (preinstalled) | 1 |
Product Matrix
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM | QSPI Flash | GTH | GTY | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXAU15 | √ | XCAU15P-2FFVB676I | 1 GB | 32 MB | 12 | 689 | ||||||||
| AXAU25 | √ | XCAU25P-2FFVB676I | 1 GB | 32 MB | 12 | 824 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
