Product Description

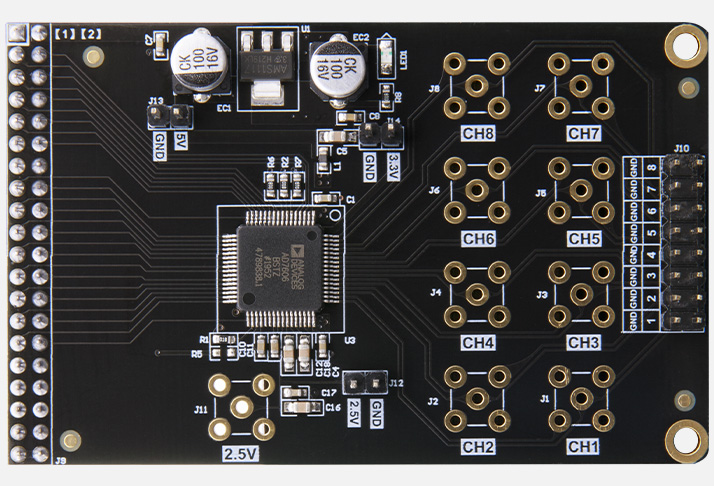

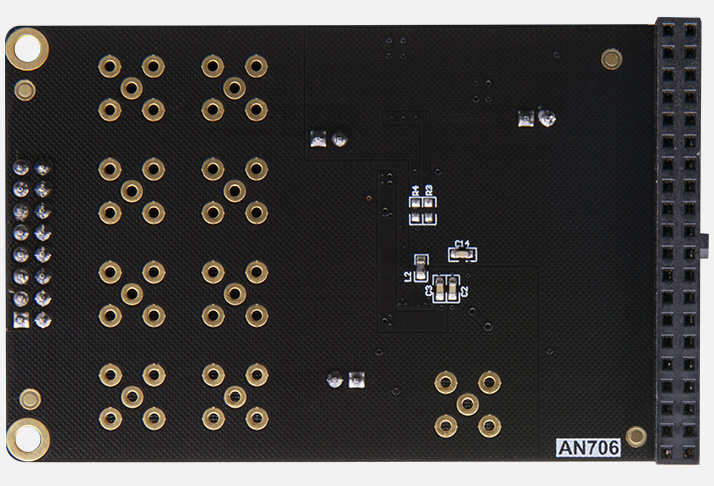

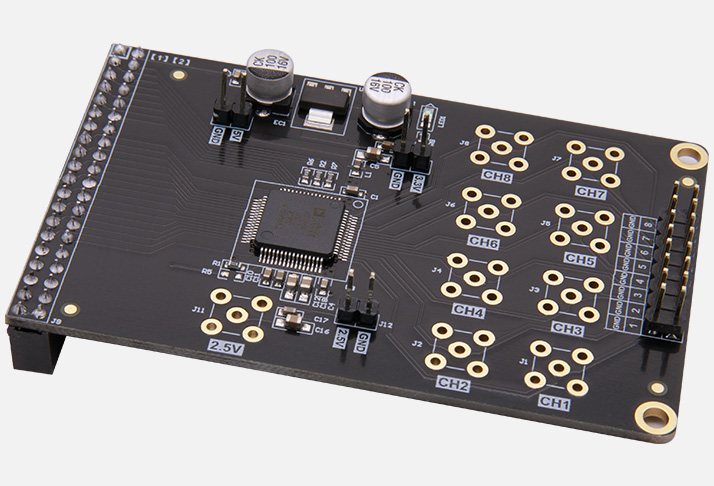

AN706 is an integrated 8-channel synchronous sampling data acquisition system, which integrates an input amplifier, overvoltage protection circuit, second-order analog anti aliasing filter, analog multiplexer, 16 bit 200 kSPS SAR ADC, and a digital filter. It also includes a 2.5V reference voltage source, reference voltage buffer, and high-speed serial communication 4 parallel interfaces.
Parameter Description
- ● Chip Model: AD7606
● Number of Bits: 16bit
● Number of Channels: 8 Channels
● Sampling Rate: Up to 200KSPS - ● Input Range: -5V to 5V
● Input interface: 2 x BNC interface
● Module interface: 40 pin 2.54mm spacing row seat
● Working Temperature: -40°C to 85°C
● Dimensions: 81 x 51mm form factor
What's Inside the Box
| AN706 | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| AN706 | 29 |
