Product Description

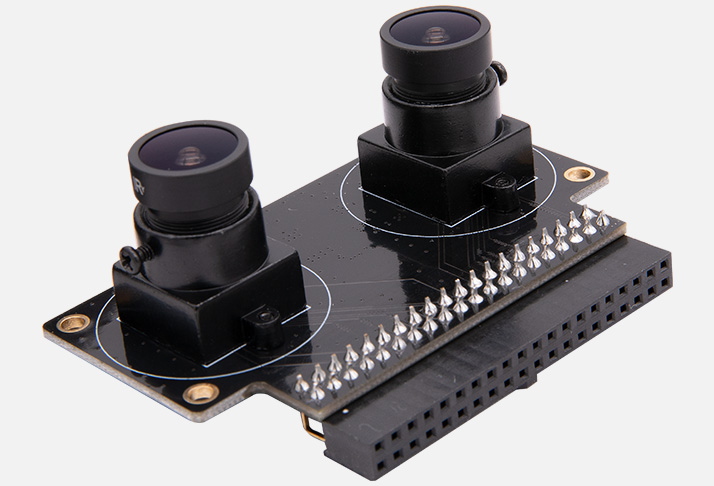

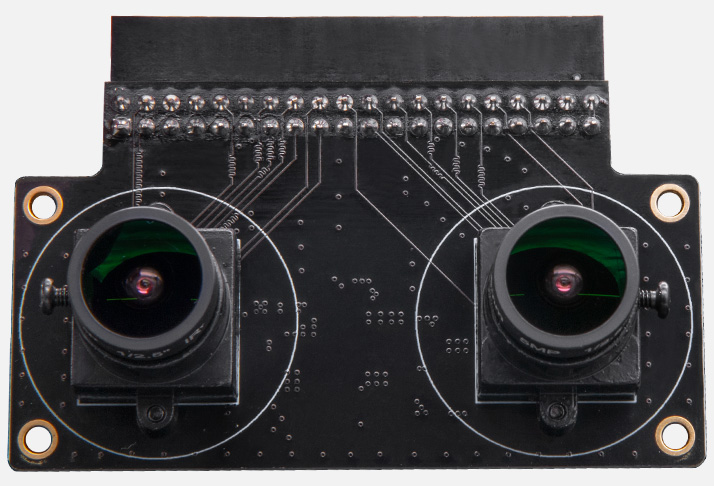

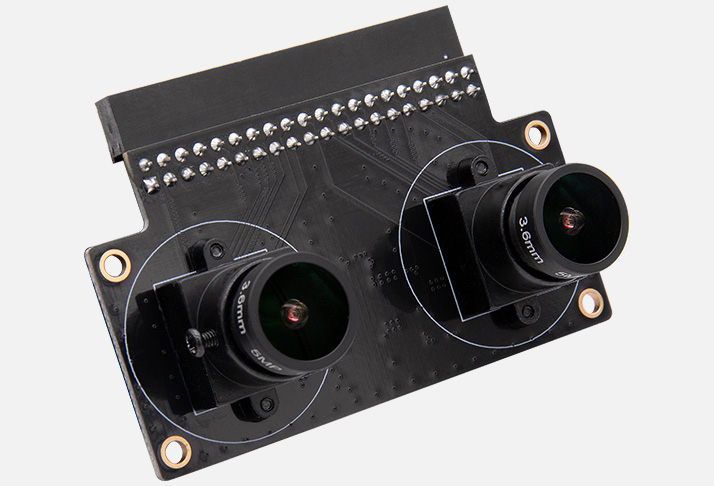

The AN5642 camera module adopts two OmniVision CMOS chip image sensors OV5640, supporting two independent or simultaneous display functions. The CMOS OV5640 chip supports DVP and MIPI interfaces, and on the OV5642 module, image transmission is achieved through a DVP interface and FPGA connection.
Parameter Description
- ● Photosensitive chip: 2 x OV5640
● Sensitivity size: 1/4 "
● Pixel: hardware pixel 500W
● Image format: RAW RGB, RGB565/555/444,CCIR656, YUV422/420, YCbCr422 and compression
● Capture images: QSXGA(2592x1944), 1080p, 1280x960, VGA(640x480), QVGA(320x240)

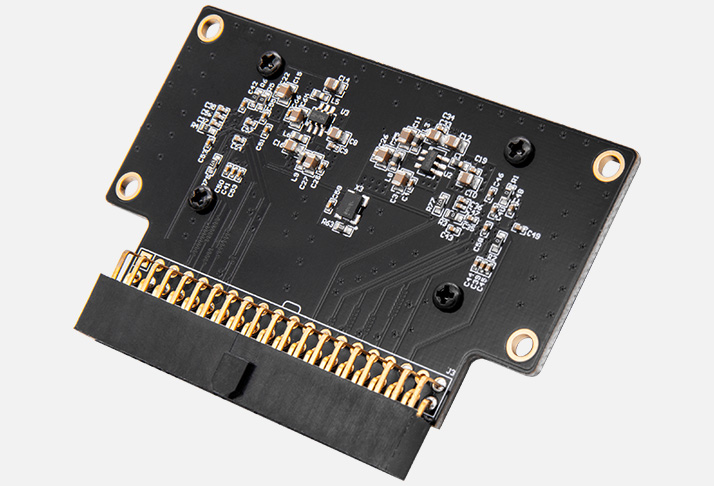

● Function support: manual focusing, automatic exposure control (AEC), automatic white balance (AWB) - ● Module content: including OV5640 power circuit and clock
● Interface: 40 pin female socket, 2-way cameras use separate DVP interfaces
● Spacing: The distance between two cameras is 40mm
● Working temperature: -30~70 ℃, stable working temperature is 0~50 ℃
● Dimensions: 70 x 40 mm form factor
What's Inside the Box
| AN5642 | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| AN5642 | 58 |
