Product Description

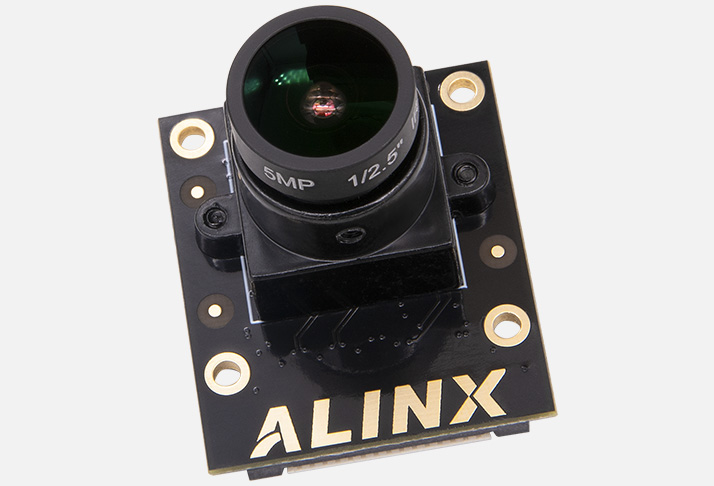

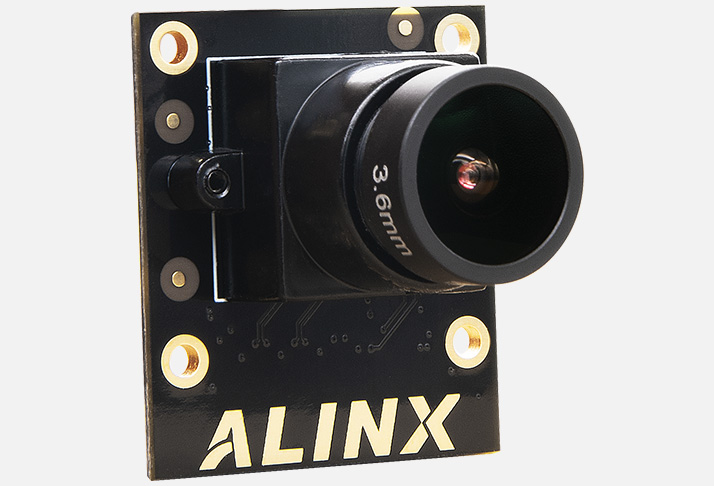

The AN5641 camera module uses an OmniVision CMOS chip image sensor OV5640. Supports DVP and MIPI interfaces, and on the AN5641 module, image transmission is achieved through MIPI interface and FPGA connection.
Parameter Description
- ● Photosensitive chip: OV5640
● Sensitivity size: 1/4 "
● Pixel: hardware pixel 500W
● Image format: RAW RGB, RGB565/555/444,CCIR656, YUV422/420, YCbCr422 and compression
● Capture images: QSXGA(2592x1944), 1080p, 1280x960, VGA(640x480), QVGA(320x240)

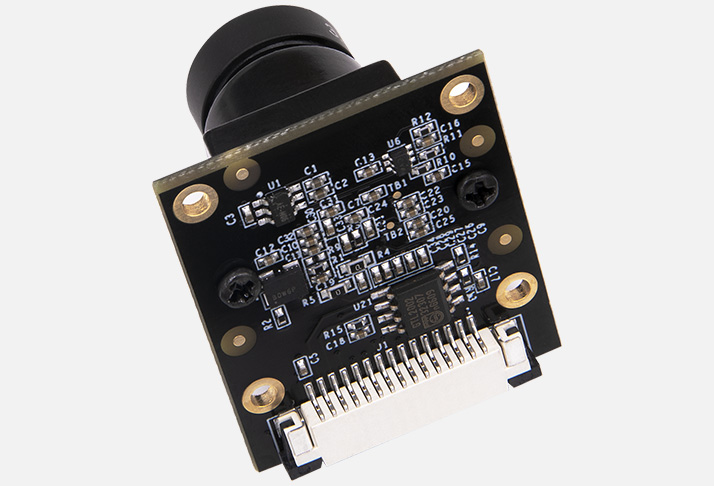

● Module content: including OV5640 power circuit and clock - ● Function support: manual focusing, automatic exposure control (AEC), automatic white balance (AWB)
● Interface: FPC interface with a spacing of 1.0mm for 15 pins and MIPI interface communication for 2LANE
● Working temperature: -30~70 ℃, stable working temperature is 0~50 ℃
● Dimensions: 35 x 24 mm form factor
What's Inside the Box
| AN5641 | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| AN5641 | 29 |
