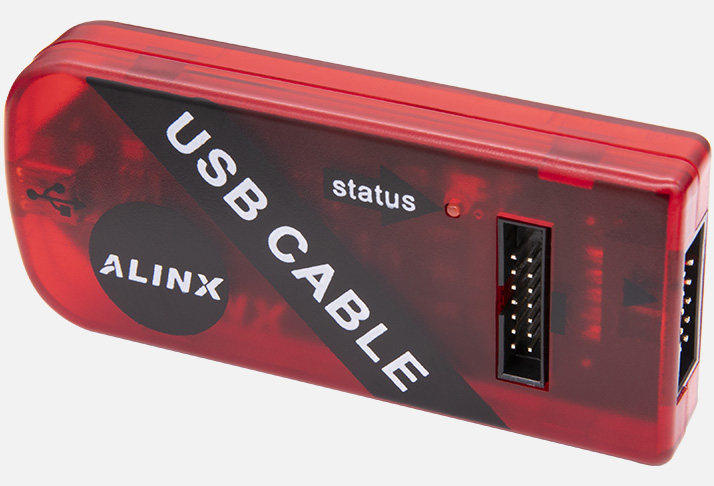

Image Overview

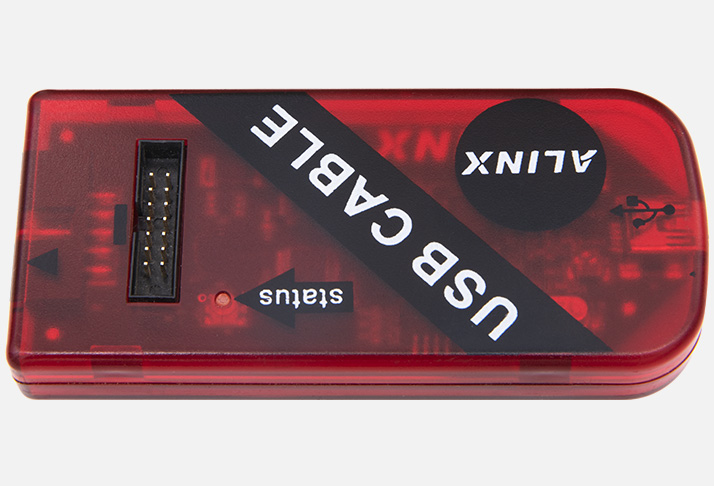

Image Overview

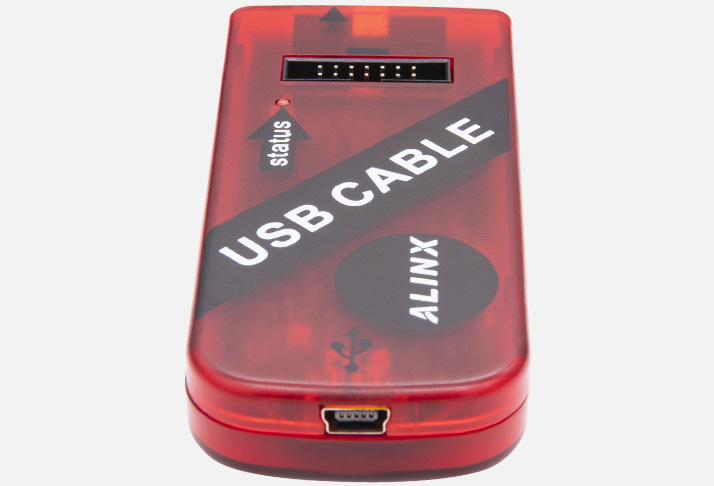

Image Overview
Image Overview

AL321 Xilinx Platform Cable FPGA USB Downloader Cable, JTAG debug

EIC Product Code: AL321

Used for SoC and FPGA development board program debugging and Downloader.

Availability: in stock
$25 [Excluding VAT]
Quantity
ALINX AL321 Xilinx Platform Cable FPGA USB Downloader Cable, JTAG debug

Product Description

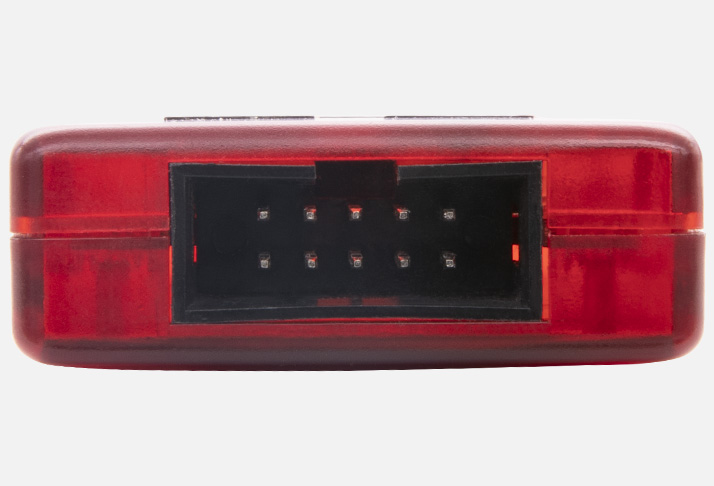

AL321 xilinx USB Downloader Cable.Two types of interfaces are reserved, with a 2.54 spacing of 10 pin ports and a 2.0 spacing of 14 pin ports

PRODUCT FUNCTION

  • ● ISE12.1 to 14.7, supports all versions of Vivado up to now
    ● Supports impact and chipscope
    ● Supports Windows and Linux systems
    ● Automatic detection and adaptation of target I/O voltage
    ● 3.3V (LVCMOS), 2.5V, 1.8V, and 1.5V interfaces
    ● Level devices
    ● LED status indication
    ● Can program SPI interface flash PROM devices
  • ● Supports all XILINX devices
    ● All Spartan FPGA devices (including all capacities of Spartan 6)
    ● XC9500/XC9500XL/XC9500XVCPLD devices (various voltages)
    ● CoolRunnerXPLA3/CoolRunner IlCPLD device
    ● XC18V00 ISP PROM series
    ● Platform Flash XCF00S/XCF00P/XLPROM series
    ● XC4000 series FPGA

What's Inside the Box

USB Downloader Cable114 core 2.0 ribbon cable1
USB Cable1

Product Matrix

Product Model

USD Price

AL32124

Documentations
