Product Description

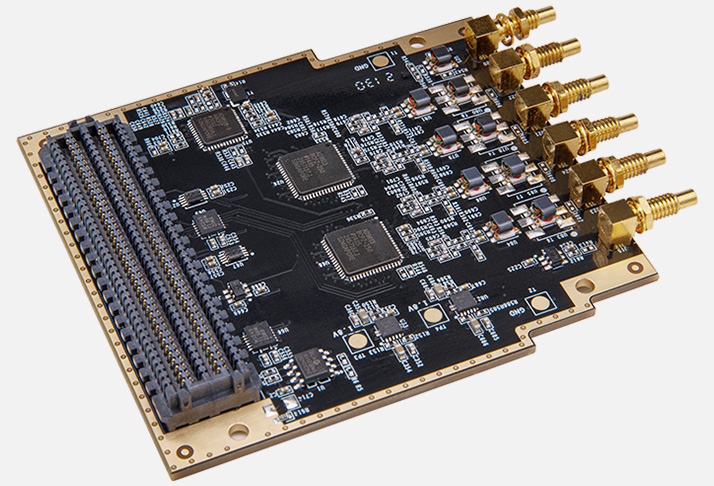

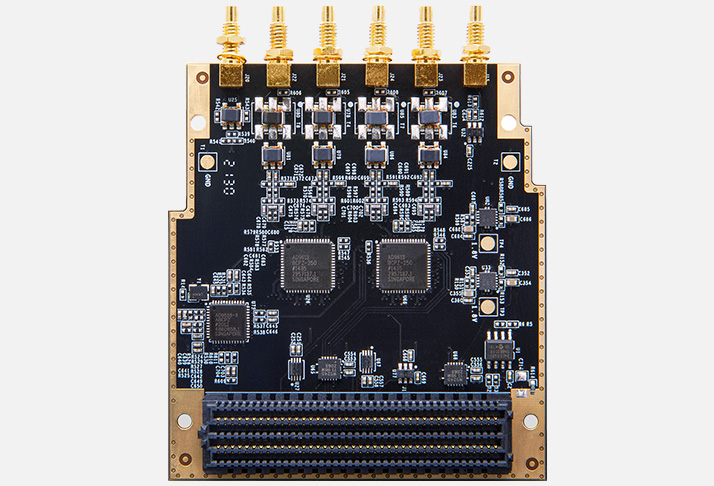

FL9613 is a 4-channel 250MSPS, 12 bit analog-to-digital module. The board AD conversion adopts AD9613 chip. interface is SSMC
FL9613 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
Key Features
- ● Chip Model: 2 x AD9613
● Number of Digits: 12bit
● Number of Channels: 4
● Sampling Rate: 250MSPS
● AD Analog Signal Input Range: 1.7V P-P
● Analog Signal Input Interface: SSMC interface
● Configure Interface: SPI interface interface - ● AD input impedance: 50 ohms
● External clock input: 1
● External trigger signal input: 1
● Digital interface level standard: LVDS level
● Working temperature: -40 ℃~85 ℃
● FMC LPC connector
● Dimensions: 76.5 x 69 mm form factor

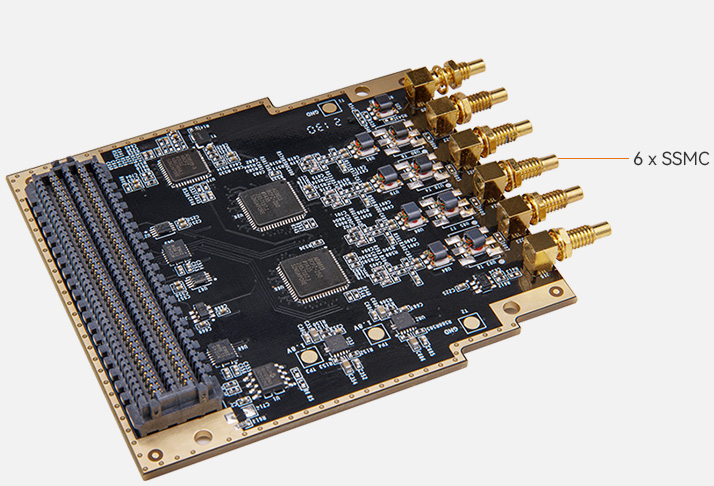

Module Features
Module Architecture
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
What's Inside the Box
| FMC Cards | 1 |
|---|
Product Matrix
| Product Model | USD Price |
|---|---|
| FL9613 | 792 |
