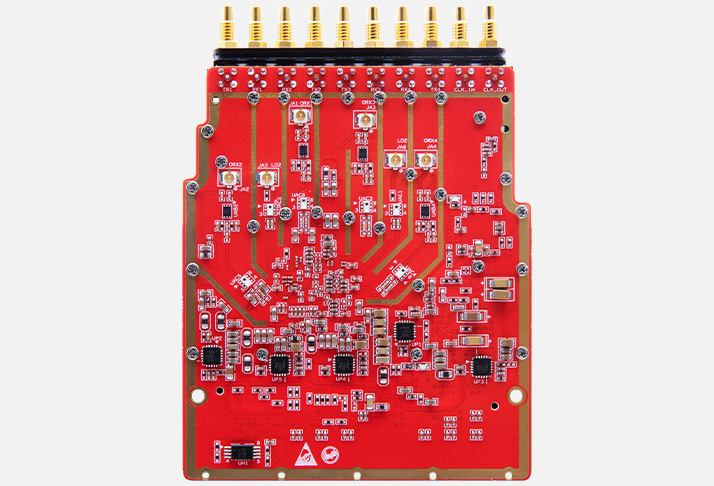

Image Overview

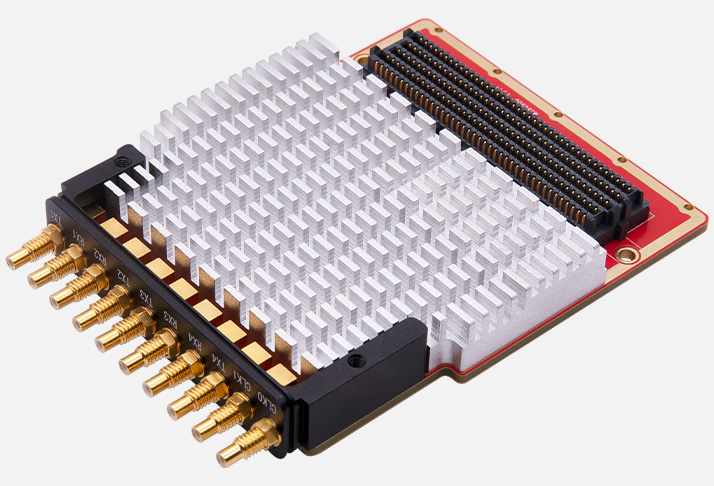

Image Overview

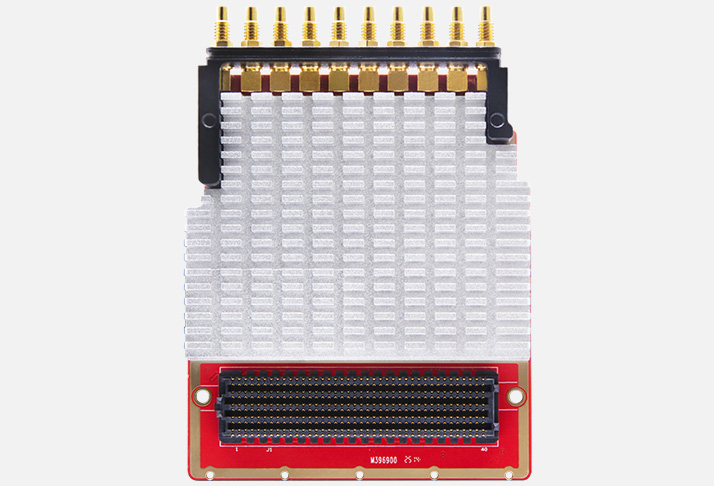

Image Overview

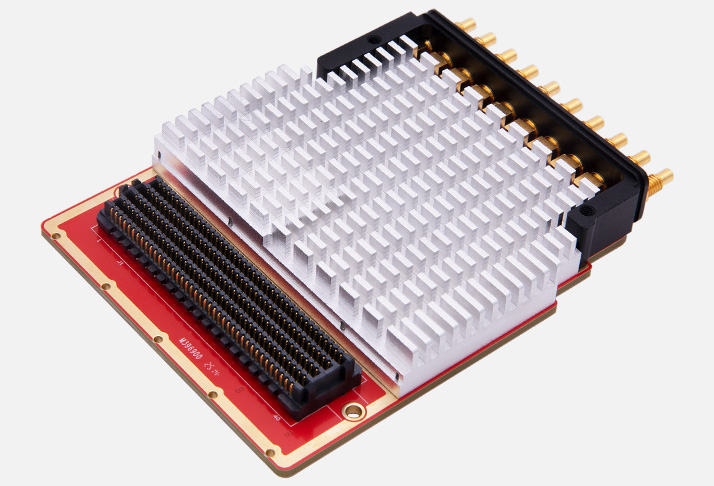

Image Overview

FH9600 ADRV9025A 200MH RF-ADC FMC HPC Card

EIC Product Code: FH9600

The FH9600 is a high-performance, radio frequency FMC card based on the ADRV9025A transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.

Availability: in stock
$3,714 [Excluding VAT]
Quantity

Product Description

The FH9600 is a high-performance, radio frequency FMC card based on the ADRV9025A transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.

Applications

  • ● 3G/4G/5G TDD and FDD

    ● communications

  • ● Macro and small cell base stations

    ● Portable test equipment

  • ● Massive multiple input, multiple output (MIMO)

  • ● Phased array radar



  • Main Features

    ●  ADRV9025A
    ● 4 Transmitters
    ● 4 Receivers
    ●  2 Observers (each with 2 inputs)
    ● Observation Rx (ORx) Channels: 2 (each with 2 inputs, for monitoring/calibration)
    ● Center Frequency: 75MHz ~ 6GHz
    ● Supports TDD and FDD modes
    ● RF impedance matching: 50Ω
    ● Maximum RX bandwidth: 200MHz
    ● Maximum TX bandwidth: 200MHz
    ● Maximum TX synthesis bandwidth: 450MHz
    ● Maximum ORX observation channel bandwidth: 450MHz
    ● Supports internal or external reference clock
    ● Supports external local oscillator (LO1, LO2) input
    ●  JESD204B/JESD204C digital interface


    Characteristics

    ● Voltage: 3.3V& 12V
    ● Duplexing Model: TDD&FDD
    ● Power Consumptions: <9W

  • Transmitter Performance - Tx

    ● 75MHz ~ 6GHz Frequency
    ● SSMC Interface
    ● Output Power: 5 dBm (@1.5GHz, CW)
    ● EVM: 0.56% (Typical for 5G NR @100MHz bandwidth)
    ● Gain Control Range: 32 dB
    ● Gain Step: 0.05 dB
    ● ACLR: <-64dB
    ● LO Suppression: -69dBm@2.5GHz
    ● Max DAC Sample Rate: 491.52 MS/s


    Receiver Performance - Rx

    ● 75MHz ~ 6GHz Frequency
    ● SSMC Interface
    ● Sensitivity: -90 dBm (@20MHz bandwidth)
    ● Noise Figure: < 11.9 dB (@2.6GHz)
    ● EVM: < 2%
    ● Gain Control Range: 30 dB
    ● Rx Alias Band Rejection: 80dB (Due to digital filters)
    ● Noise Figure: 11.9dB@2.6GHz
    ● ADC Wideband SFDR: 60dBc
    ● Max ADC Sample Rate: 245.76 MS/s


Module Features



Module Architecture


Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

FMC Cards1


Product Matrix

Product Model

USD Price

FH9600 3714
